11、REAR COVER COMPONENT 96
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1244200-111000 ZT310 Gel Battery Bands 1
2 1184200-099000 ZT310 colloid battery (6-FM-10/10Ah) 1
3 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4 12±1.5N.m
4 1274100-057095
Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5
4
5 1244100-052000
Buffer rubber of flanging bushing (φ8.5×φ14×1)
4
6 4044201-467051 ZT310-VX battery bottom cover (dark gray matte) 1
8 1274200-273000 ZT310－VX battery holder 1
9 1240300-007000 HJ125-6 Battery rubber pad 3

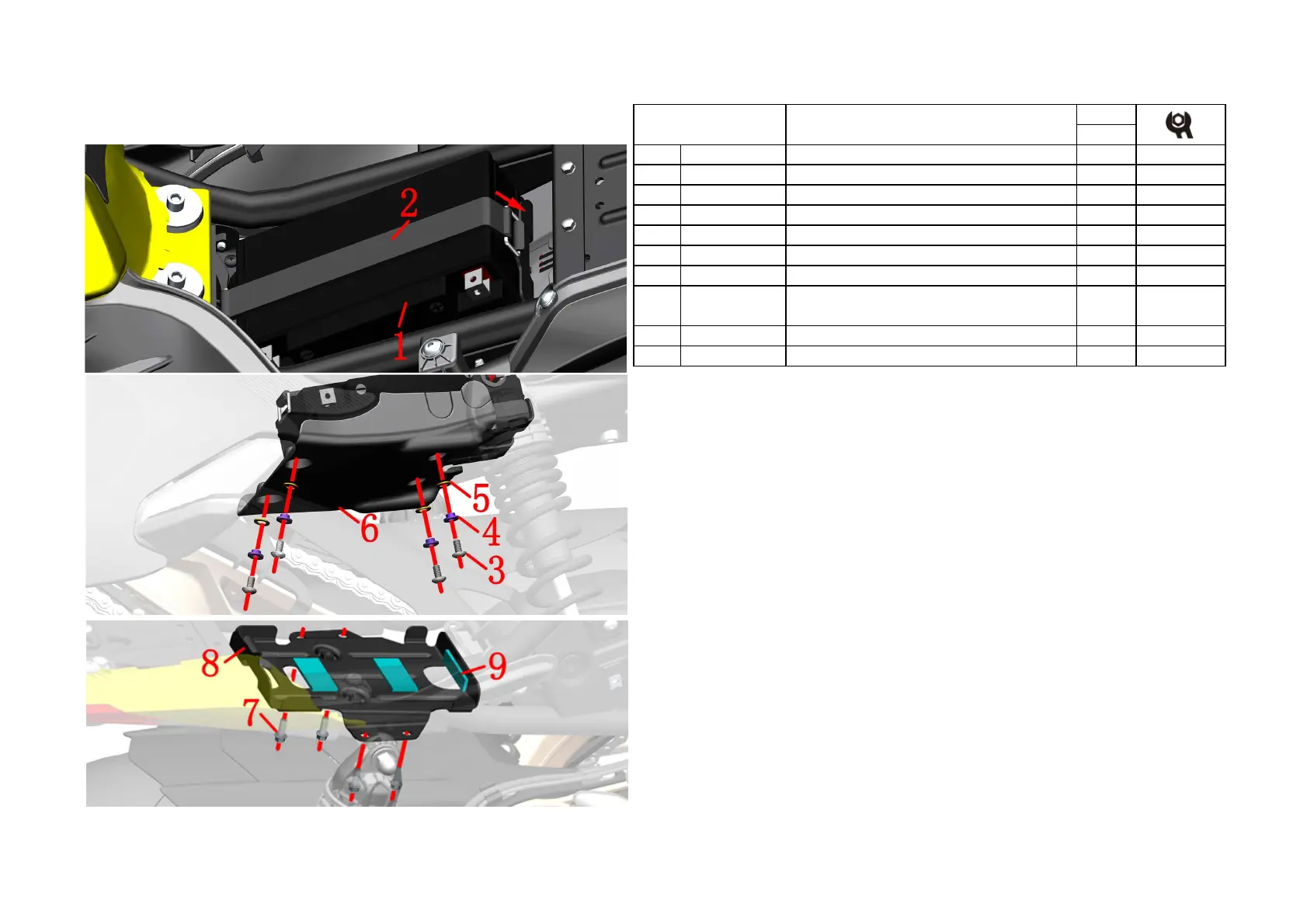

Fig.2 REAR COVER
COMPONENT
Electrical device box component (colloid battery)
12±1.5N.m
PROCEDURE:
●Battery
Pull the battery strap ⑴ pull down to loosen the metal buckle, remove the battery strap ⑴, unplug the red
positive protective cap of the main wiring harness, and remove the bolts that come with the battery with a cross.
Remove the battery positive wire first, and then remove the negative wire, then the battery(2) can be removed.
●Battery bottom cover
Remove the four bolts (3), remove the four flanging bushings ⑷ and the four flanging bushing cushion rubbers
⑸, then the battery bottom cover ⑹ can be removed.
●Battery holder
Use a 8# sleeve to remove the four bolts ⑺, and then take off the battery holder ⑻.
CAUTION:
●Remove side covers and seat cushions in advance.
●The material should be protected during discomponent to prevent damage to the paint.
●Be careful not to overcharge the charging time. About the use and maintenance of the battery see the
instructions.
●Reassemble the battery or fuse, etc. Remember to remember to reset the EFI hardware: Turn on the key-
Ignition- 10 seconds After the ignition is turned off - After 10 seconds Turn on the ignition switch and repeat 2
times.
●If the battery has reached the end of its useful life, it should be handed over to a qualified organization or a
dedicated recycling center for proper disposal. Discard it at will.
