3、INTAKE SYSTEM COMPONENT 22
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224200-152000 ZT310-V air filter core (with packaging) 1
PROCEDURE:

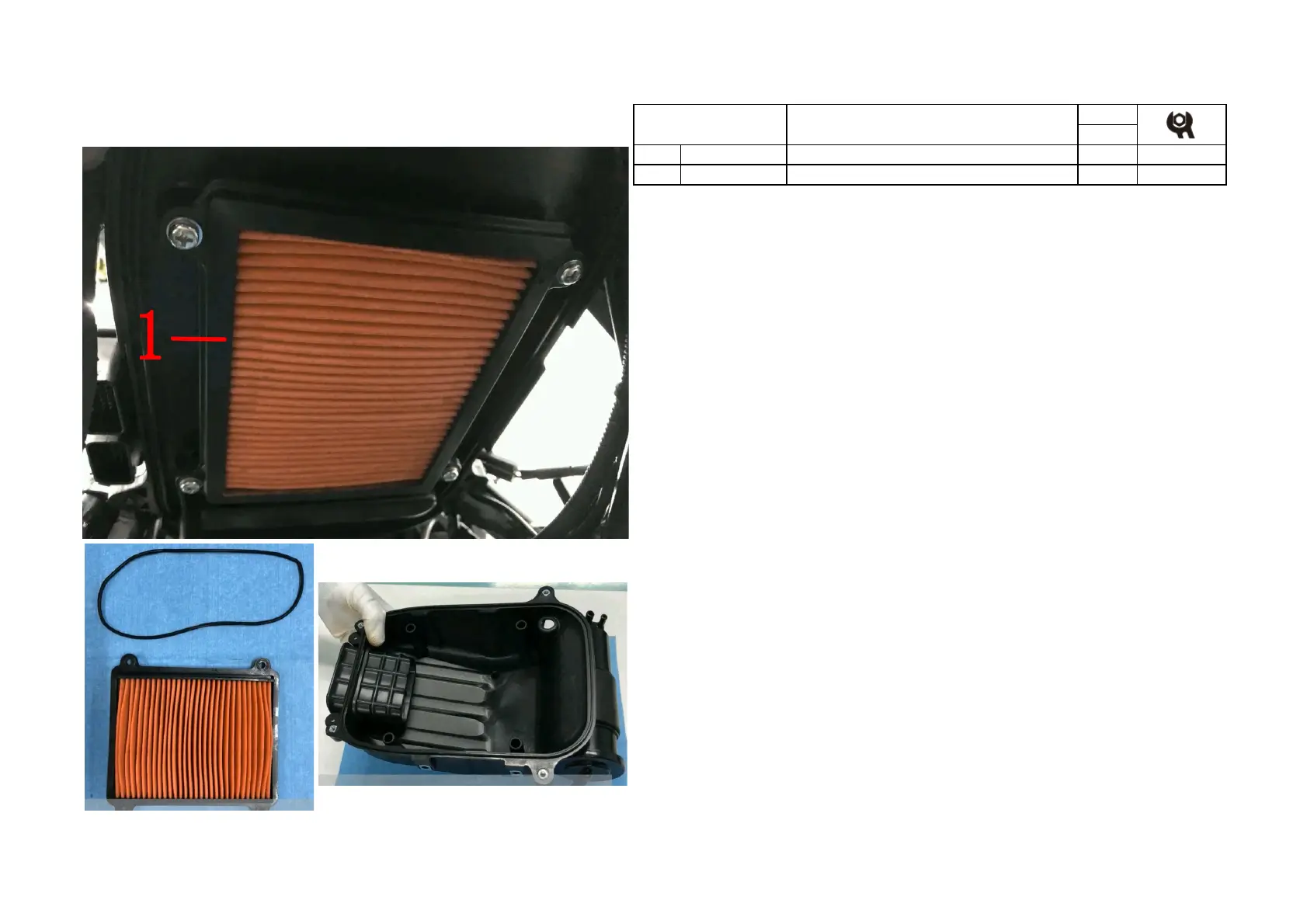

●Air filter element
Use a Phillips screwdriver to remove the four bolts.
Replace the filter element with a new one.
Prepare new filter elements and seals.
Install the seal into the filter groove and press it tight.
Clean the bottom case.
Reassemble all parts by referring to the removal procedure.
CAUTION:
●The sealing ring must be assembled in place. Leakage or assembly may not cause dust to enter the engine. In
severe cases, the internal parts of the engine may be damaged.
● Note that the torque should not be too large when locking the Phillips bolt to prevent damage to the parts.
●When flushing the vehicle, be careful not to allow water to enter the air filter. If a small amount enters, remove
the oil pipe and release it. Make sure that there is no water inside the air filter to start the vehicle.
Induction system component
Fig.8 INDUCTION
SYSTEM COMPONENT
