11、REAR COVER COMPONENT 102
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 non-standard bolt M6×12 (304 stainless steel) 4
ZT310 PKE controller (single antenna) stop selling
1184200-137000 ZT310 PKE Assembly (Hand Ring Edition)
3 1251100-102000
non-standard bolt M6×16
（
304 stainless steel
）
4
4 1274100-057095
flanging bushing φ6.2×φ8.5×3.5
＋
φ14×1.5
4
5 1244100-052000
buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
4
6 1224200-111000 ZT310 -V Electrical device box 1
7 1251300-063093
plywood M6×11×15
（
color zinc
）
4
8 1184100-080000 Fuze wire (15A) 1
9 1184200-043000 ZT310 PKE key decorative part 1
10 1184200-128000 ZT310 universal fuse (15A small) 2
11 1244200-100000 ZT310 induction key rubber ring 1
Fig.8 REAR COVER
COMPONENT
ZT310 -V Electrical device box component
2 1
【1】
【2】

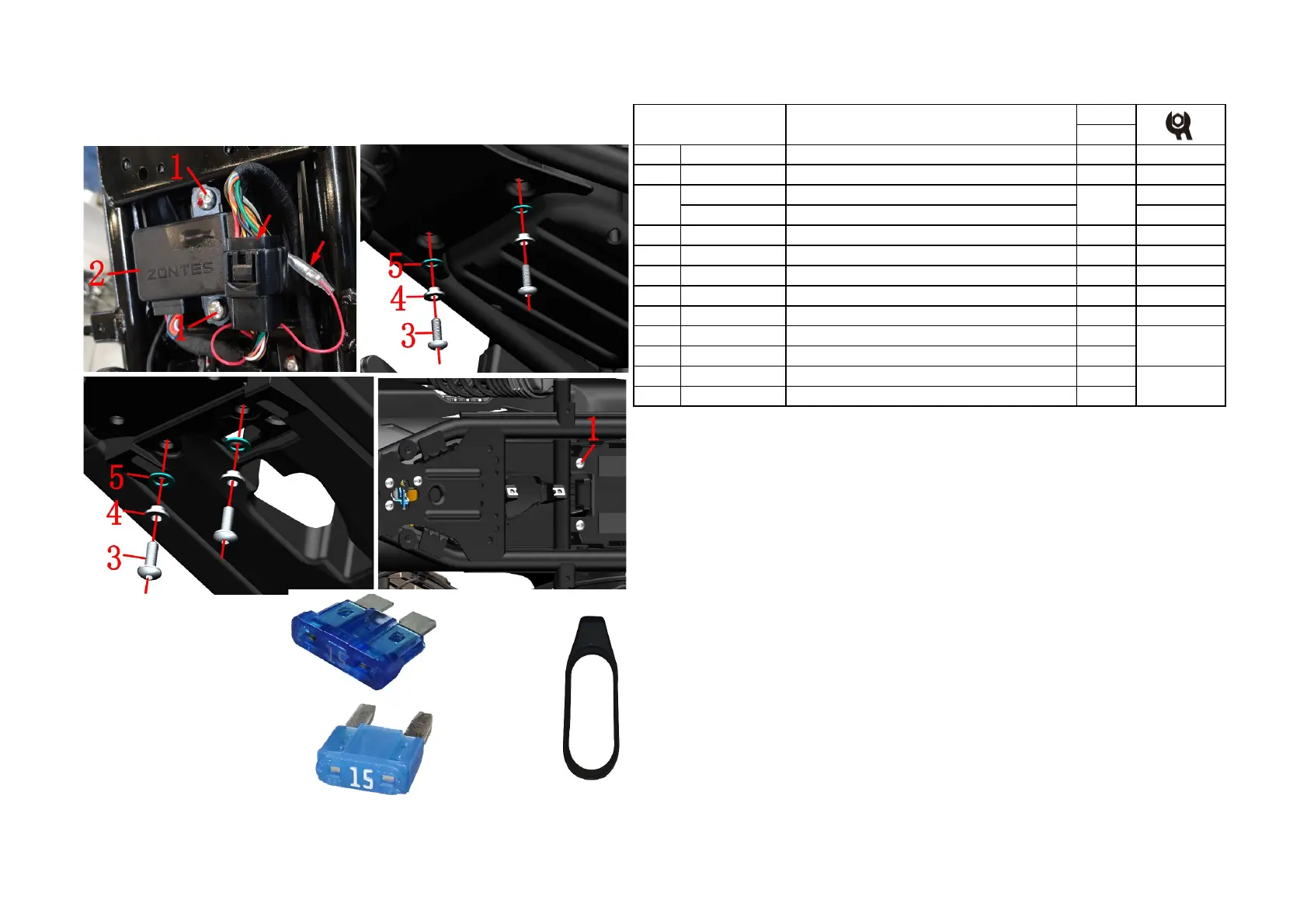

PROCEDURE:
●PKE controller
Unplug the PKE controller ⑵ cable connectors , remove 2 pcs bolts⑴, and then take off the PKE controller.
●Electrical device box component
Remove the bolt ⑶ under the front of the electrical box and remove the bushing ⑷ and cushion rubber ⑸.
Remove the bolts ⑶ under the rear of the electrical box and remove the bushing ⑷ and cushion rubber ⑸.
Hold the electrical component box assembly and remove the two upper bolts ⑴.
Remove the electrical component box assembly from the frame. Remove the 4 nuts ⑺.
●Fuses
Unplug the fuse ⑻ or ⑽ and check if it is blown. If it has blown, replace the fuse of the same specification.
The single-antenna version of PKE assembly is a KST medium-sized 15A fuse. The bracelet version of the PKE
assembly uses 2 small 15A fuses.
CAUTION:
●When inserting or removing the fuse, pay attention to the vertical alignment and then disassemble it. Do not
bend it. Use a qualified fuse.PKE cables need to be protected. Non-professionals are strictly prohibited from
dismantling the PKE system components, as this may cause permanent damage.Please refer to the driving
manual for details on the use of PKE.
●PKE key shell（containing key glue+key ring）just for after-sale to change the shell,no internal electrical
appliances.
●【1】for single antenna after-sale; 【2】 for hand ring edition after-sale.
