Zontes ZT310-V User Manual

14、LOWER SHROUD COMPONENT 110
CHK
ADJ
NO. PART NO. PART NAME QTY REMARKS
1 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 2
2 1274100-057095 Flanged bush φ6.2×φ8.4×3.5＋φ14×1.5 6
3 1244100-052000 Flange bushing buffer (φ8.5×φ14×1) 6
4 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4
5 1224200-108000
ZT310
－
V middle part of lower wind deflector
1
6 1244100-004000 ZT250－S Flanging bushing buffer 3
4044201-241051
Left support of lower wind deflector(grey matt
）
black
4044201-275051
Left support of lower wind deflector (bright red
）
red
4044201-269051
Left support of lower wind deflector (bright yellow
）
yellow
4044201-267051
Left support of lower wind deflector(bright purple
）
purple
4044201-283001
Left support of lower wind deflector (bright white
）
white
4044201-242051
Right support of lower wind deflector (grey matt
）
black
4044201-276051
Right support of lower wind deflector (bright red
）
red
4044201-270051
Right support of lower wind deflector(bright yellow
）
yellow
4044201-268051
Right support of lower wind deflector(bright purple
）
purple
4044201-282001
Right support of lower wind deflector(bright white
）
white
9 1251300-063093 Plywood M6×11×15 (environmental color) 7
PROCEDURE:
●Lower shroud assembly
Remove 2 bolts⑴ and four bolts⑷,remove the flange bush⑵ and pad⑶.
Remove 3 pieces of buffer jelly⑹.
Separate the lower shroud assembly into three parts.
●Shroud left part
Remove the plywood nut⑼from the left part of the shroud⑸.
●Shroud right part
Remove the plywood nut⑼ from the right part of the shroud⑻.
●Shroud middle part
Remove the plywood nut⑷ from the middle part of the shroud⑸.
CAUTION:
●The shroud should be well protected during disassembly to prevent breakage or paint scratches caused by
uneven force.

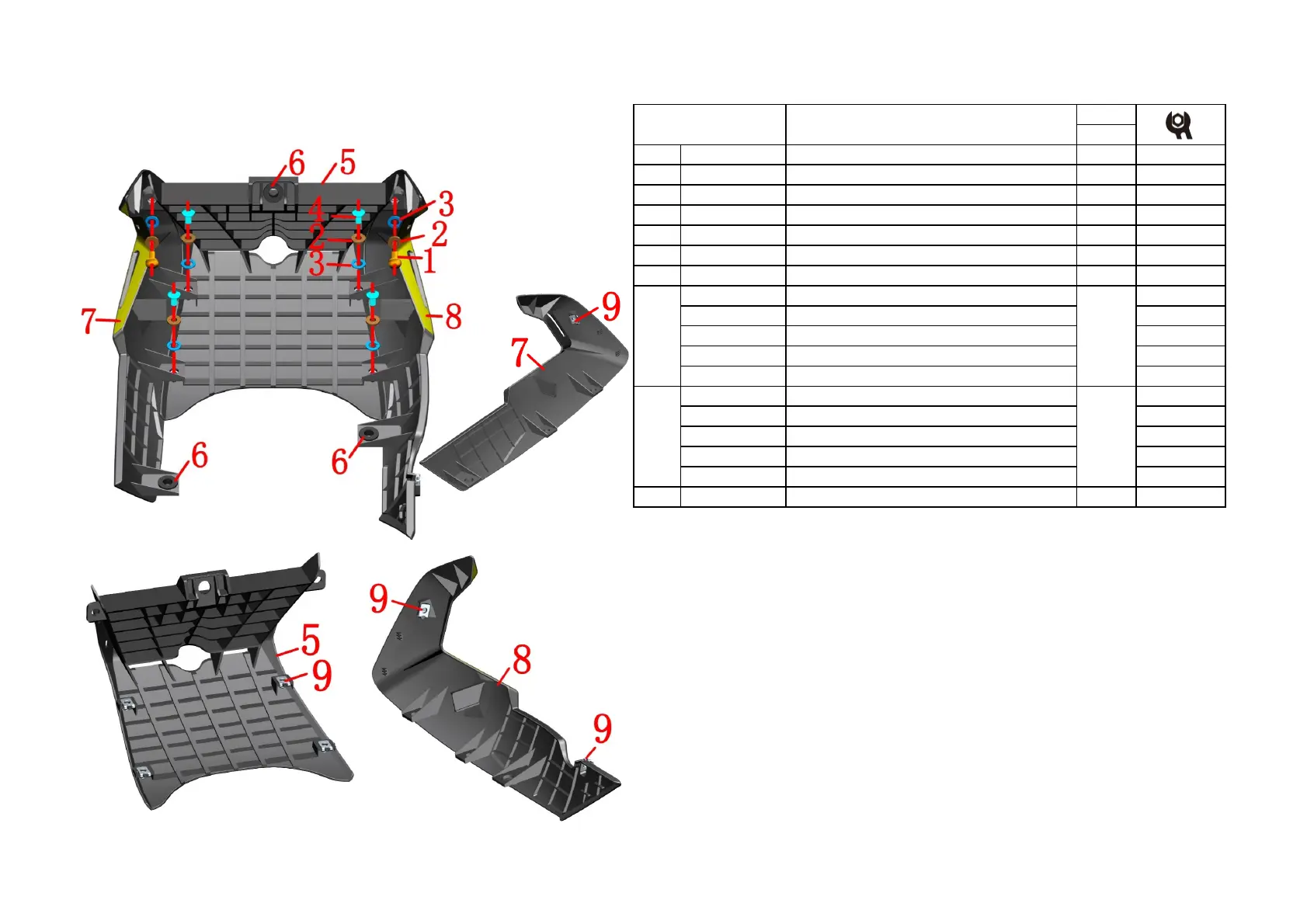

FIG.2 LOWER SHROUD
COMPONENT
7
8
Lower shroud component 2
1
1
