7、FRONT FORK COMPONENT 69
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250205-040095
GB70.1 inner hex bolt M8×16
（
）
2
1250501-007093
GB93φ8(color zinc
）
3 1224200-008000 ZT310－R line card nail 4
4 1224100-037000 0 grade flame retardant cable tie (black 3.6×295) 2
5 1251100-102000 Non－standard bolt M6×16 (304 stainless steel) 2

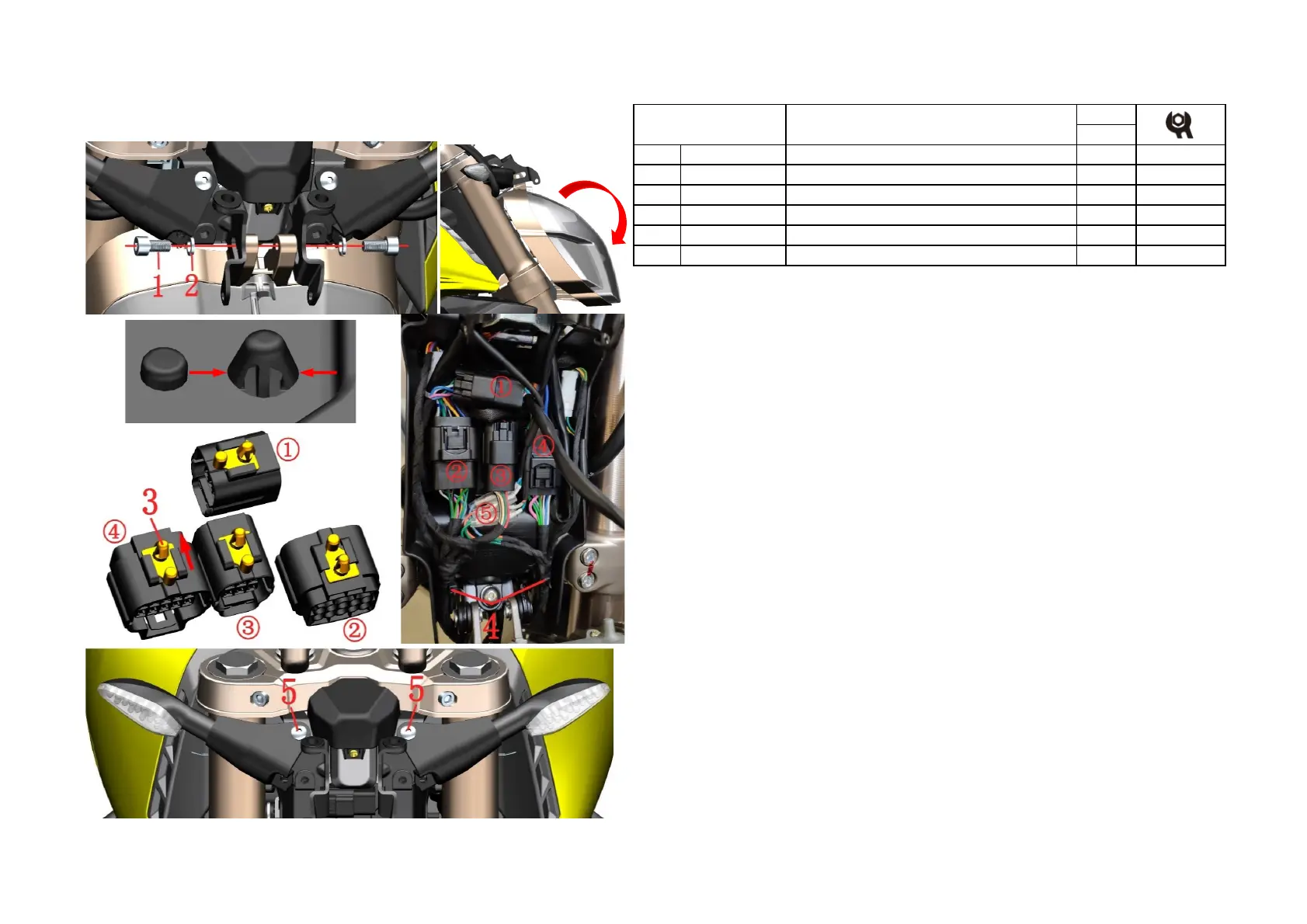

Fig.10 FRONT FORK
COMPONENT
PROCEDURE:
●Headlights assembly
Refer to the steps of the front light adjustment to remove the decorative cover on the headlights and turn the
turn signal assembly up.
Remove the bolts ⑴ on both sides with a 6# hexagon socket and remove the spring washer ⑵.
Turn the headlight assembly in the direction of the arrow; expose all cable connectors.
Cut two tie straps ⑷.
Pull the wire clip ⑶ from the back of the storage box with a pointed tip and pull it out of the storage box.
First pull out the turn signal line head ⑤.
Then separate all the plugs from the main cable and arrange all the cables.
Remove the line plug from the back of the 4 plugs, ① headlight, ② right hand switch, ③ faucet lock switch,
and ④ left hand switch ⑶.
●Turn signal assembly
Remove the bolts ⑸ after grasping the left and right turn signal assemblies and remove them.
CAUTION:
●Pay attention to the strength when removing the line plug.
●Pay attention to all cables in the original wiring when reassembling.
Headlights assembly 1
To Next Page
