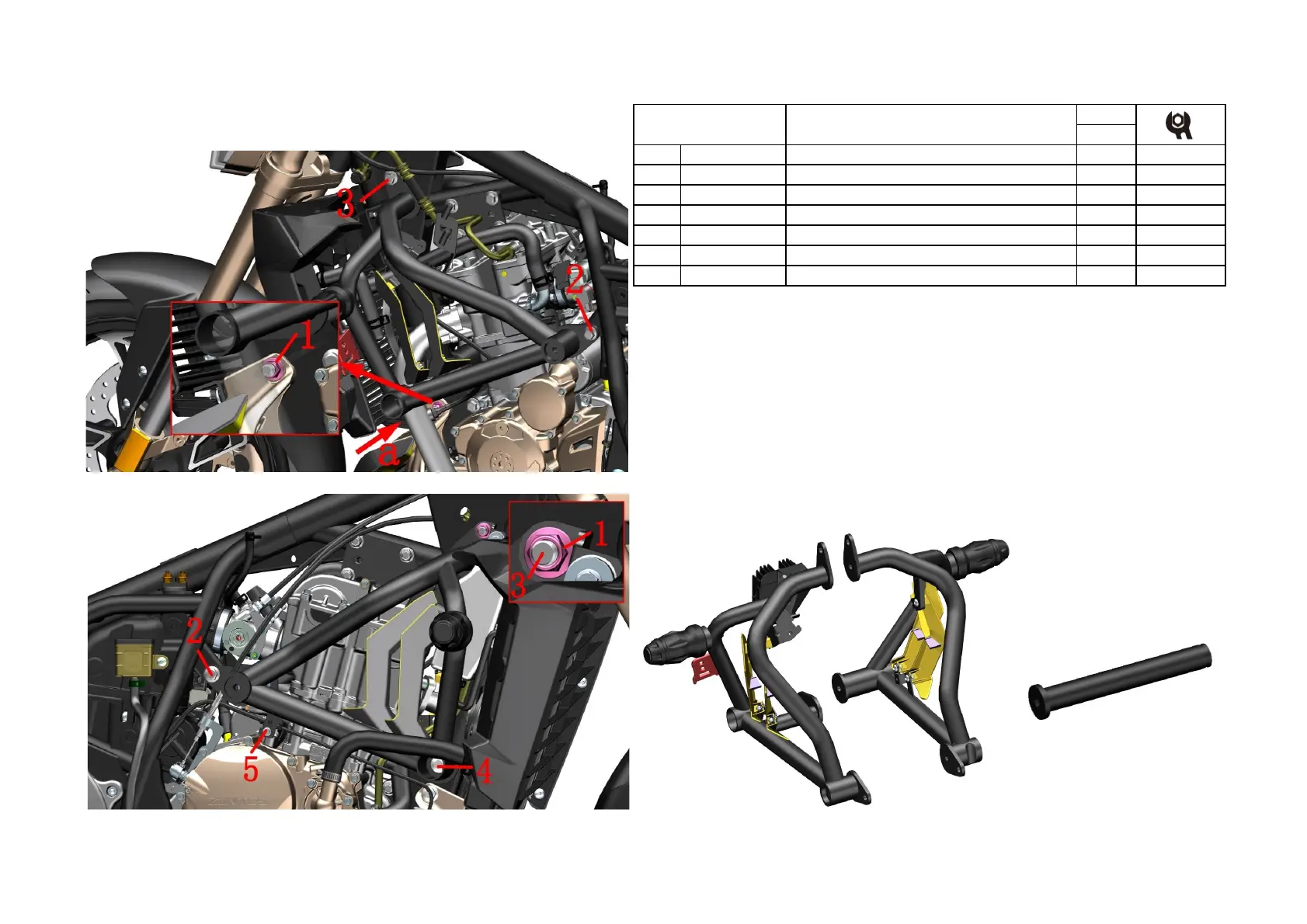

10、GUARD BAR COMPONENT 92
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251300-057093 non-standard nuts M10×1.5 (color zinc) 2
2 1251100-082093 non-standard bolt M10×1.5×20 2
3 1251100-132003 non-standard bolt M10×1.5×80 1
4 1251100-137000 non-standard boltM10×1.5×100 1
5 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 1
6 4024200-054000
－
Guard bar connecting pipe
Left bumper assembly Right bumper assembly Bumper connecting tube
Fig.2 GUARD BAR
COMPONENT
PROCEDURE:
●Bumper assembly
1.In the gap between the left radiator and the deflector, insert a #14 wrench into the nut ⑴, and remove the bolt
⑷ on the right side.
2.Remove the bolt ⑵ on the right side and the bumper connecting tube.
3.Fix the head of the bolt ⑶ with a socket and remove the nut ⑴ on the right side.
4.After holding the left and right bumper, remove the bolt ⑵ on the right side and remove the right bumper
assembly.
5.Hold the left bumpe assembly and pull out the bolts(s). Make sure that the cable ties,cables, etc. on the left
bumper assembly have been removed and the left bumper assembly is removed.
CAUTION:
●Be careful not to pull the oxygen sensors wire when removing the left bumper assembly
●Be careful not to press any cables when reassembling
To Next Page
