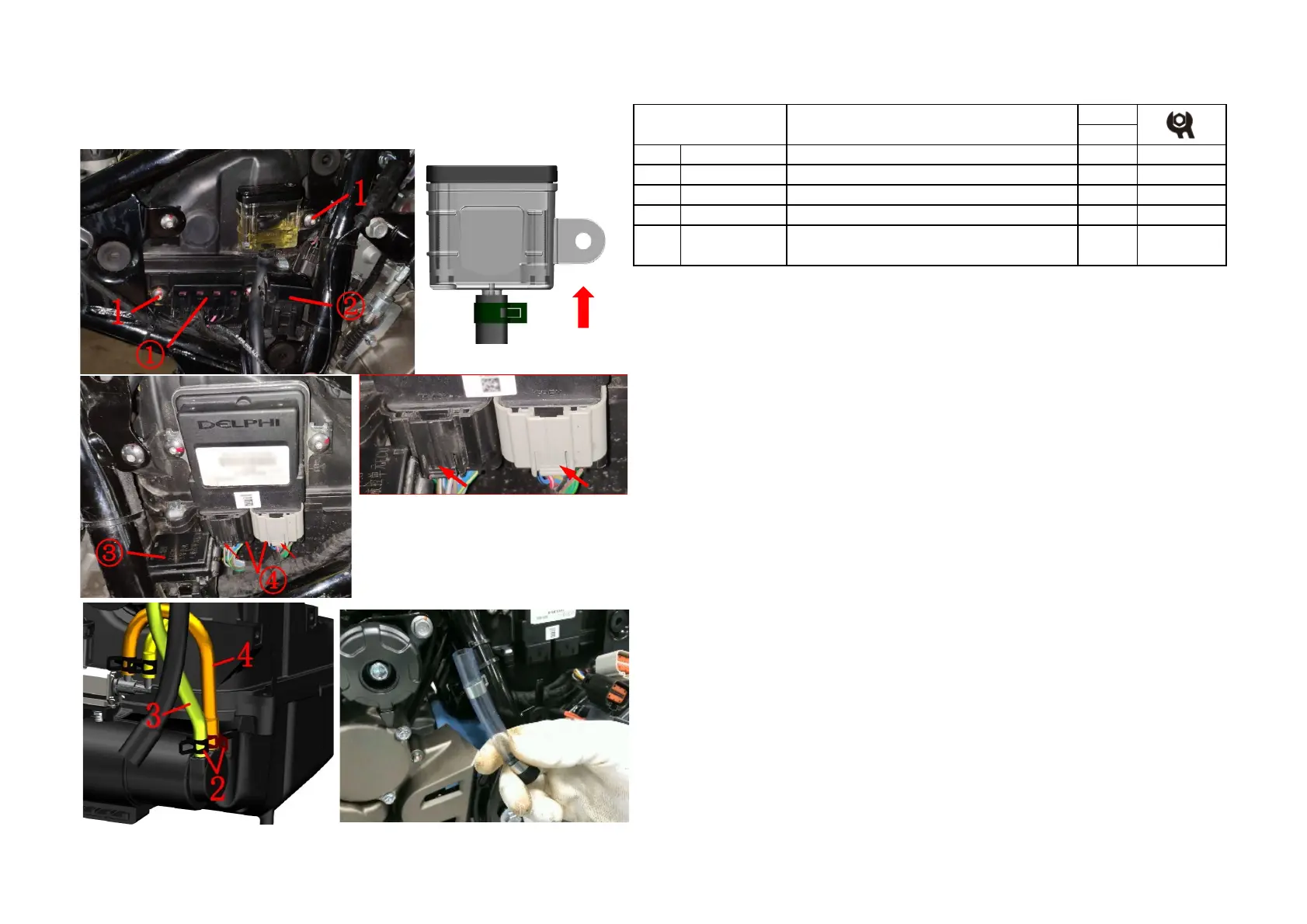

3、INTAKE SYSTEM COMPONENT 20
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
（
）
2 1274200-088000
（
）
3 1244200-095000 ZT310-V carbon Tank adsorption Tube (Φ 5 × Φ 11) 1
PROCEDURE:
●Right side
Remove the bolt ⑴
at the right disc brake oil cup; move the disc brake oil cup to the side and ensure that the oil
cup cover is facing up.
Remove the two bolts① of the right fuse box ⑴ and pull out the fuse box and arrange the cables.
Pull the fuse box② up and arrange the cables.
●Left side
Hold down the arrow at the bottom of the ECU's plug and pull the plug out at the same time and then tidy up
the cable.
Pull the fuse box③ up and out the cable.
●Air filter
Clamp the hoop with pliers ⑵ and remove the boss on the canister. Pull out the suction tube ⑶ and pull out the
intake pipe ⑷.
Place a rag under the air filter and use a needle-nose pliers to pull out the waste tubing at the bottom.
CAUTION:
● Always keep the disc brake oil cup cover facing up.
● When pulling out the tube, you should not directly clamp it with a nipper pliers to prevent leakage or oil
leakage.
4 1244200-096000
Replace the air filter element 2
Intake Manifold of Solenoid Valve for ZT310-V
carbon Tank (Φ 5 × Φ 11 / Φ 7 × Φ 13)
1
Fig.6 INDUCTION
SYSTEM COMPONENT
To Next Page
