13、MUFFLER COMPONENT 107
CHK
A
DJ
NO. PART NO. PART NAME QTY REMARKS
1 1250205-023000 GB70.1 inner hexagonal M8X35 (army green) 4
2 1274200-226000 ZT310-V Rear Right Foot Support Assembly 1
3 1250303-011093 GB6177.1M8(environmental color) 1
4 1070100-133000 engine exhaust outlet seal 1
1050953-008000 OSM planar oxygen sensor 25322728 Delphi
1050954-026000 LSF oxygen sensor Bosch
1224100-013000 ZT250-S Oxygen sensor fixing buckle
1224200-008000 ZT310-R cable clip

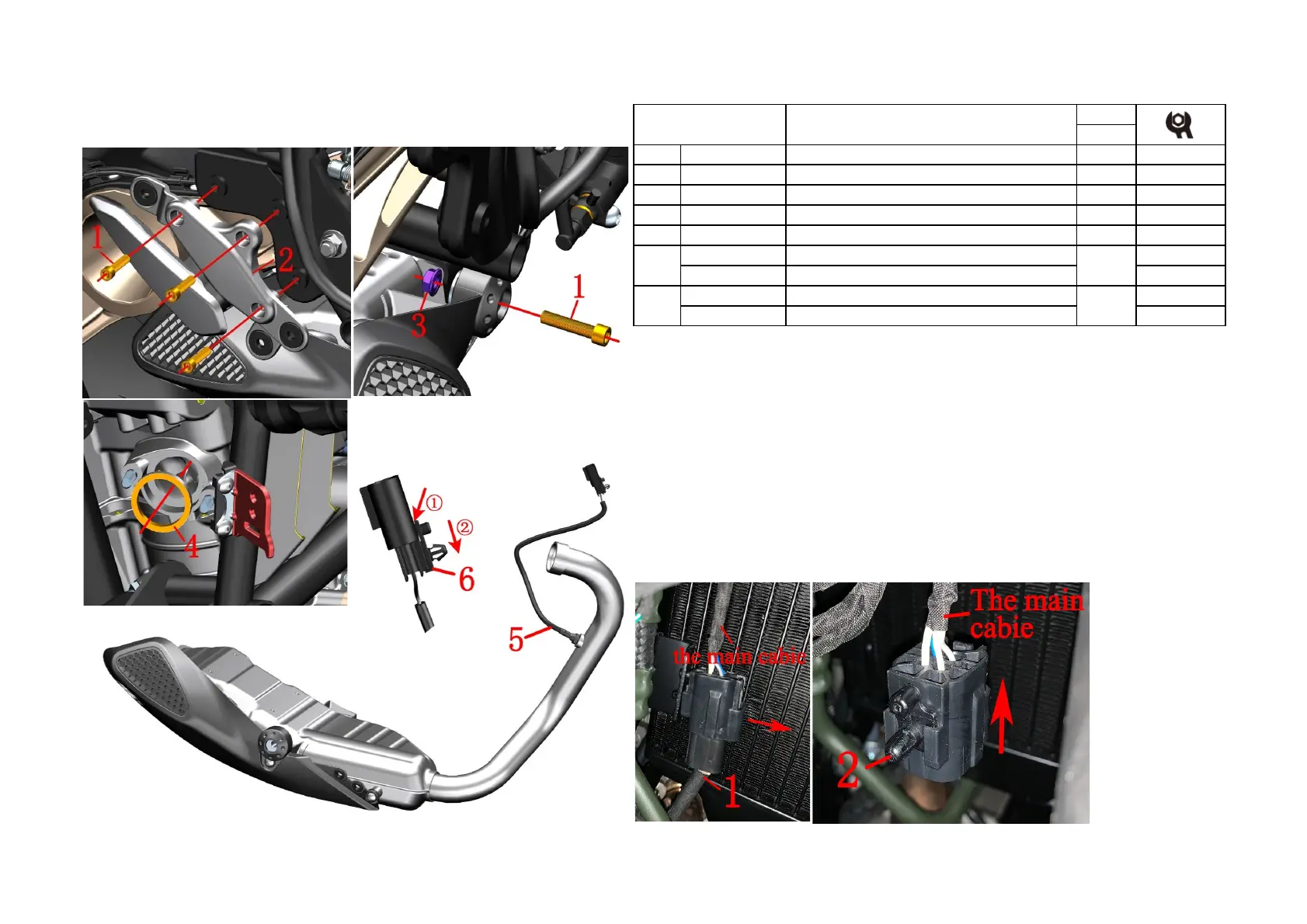

FIG.3MUFFLER
COMPONENT
Muffler component3
5 1
PROCEDURE:
●Rear right pedal bracket assembly
Remove the right side cover according to the step of removing the side cover.
Remove three bolts ⑴ and remove the right rear pedal bracket assembly ⑵.
●Muffler assembly
Put the plum wrench into the gap and fix the nut, hold the muffler assembly, and remove the bolt.
Remove the muffler assembly from the frame. Be careful not to pull the oxygen sensor cable.
Remove the sealing gasket from the exhaust port ⑷. It is recommended to replace the new sealing gasket after
disassembling and assembling the muffler each time.
●Oxygen sensor
Insert the small screwdriver into ⑴ pry the fixed button open, and push the arrow ⑵ in the direction indicated
by the arrow ⑵ to remove it from the oxygen sensor wire adapter. Remove the oxygen sensor with an open
wrench.
CAUTION:
●The muffler should be completely cooled before it is disassembled.
6 1
To Next Page
