5、FOOT PEDAL COMPONENT 46
CHK
A
DJ
NO. PART NO. PART NAME QTY CAUTION
1 1250205-038000
GB70.2M5×12
（
Stainless steel
）
4
2 1251700-117000 Bushing Φ7.4×Φ5.4×5.7 4
1032142-051000
ZT310
－
V Front pedal pressure block
4064200-003051
ZT310－V Front pedal pressure block (dark gray matte)
1020542-003000
ZT310
－
V Front left pedal
1274200-294000
ZT310
－
V Front left pedal (dark gray)
5 1244200-063000
ZT310
－
V Front pedal rubber seelve
1
PROCEDURE:
●Front left pedal after sale parts.
Remove 4 pieces bolts ⑴,and take off 4 bushings ⑵
Take off the pedal pressure block ⑶
Take off the pedal plastic seelve ⑸ from the pedal ⑷.
CAUTION:
●It is recommended to apply a proper amount of thread fastening glue to the head of the bolt ⑴.
1
3
4
1

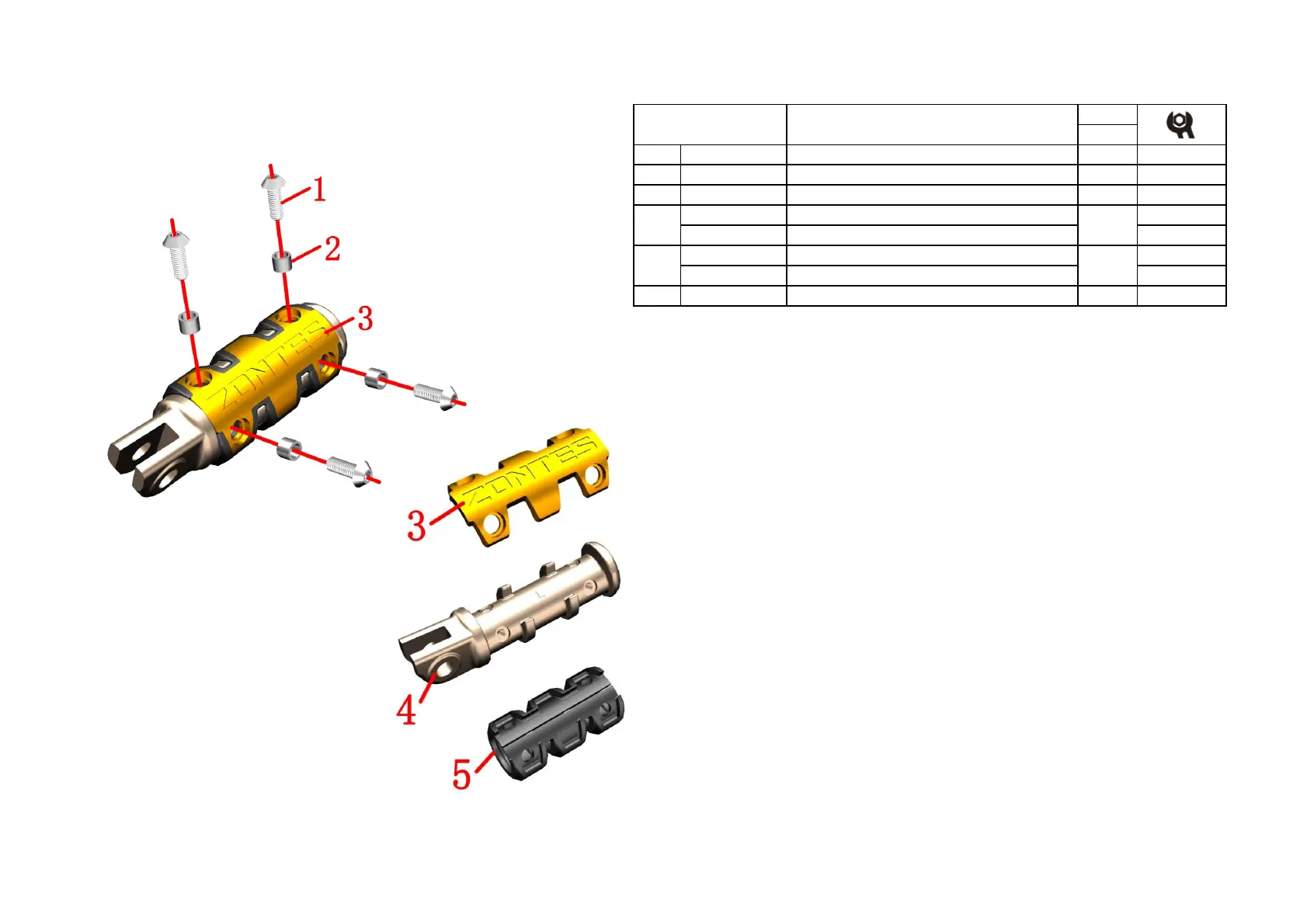

Fig.9 FOOT PEDAL
COMPONENT
Front left pedal after sale parts
