5、FOOT PEDAL COMPONENT 41
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250301-018093 GB6170 M6-LH (army green) 1
2 1274100-041000 Shift lever adjusting screw 1
3 1250301-020093 GB6170M6 (environmental color) 1
4 1250105-150093 GB5789M8×45(environmental color) 1 25N.m
5 1274200-035194 ZT310 front fender bushing (black zinc) 2

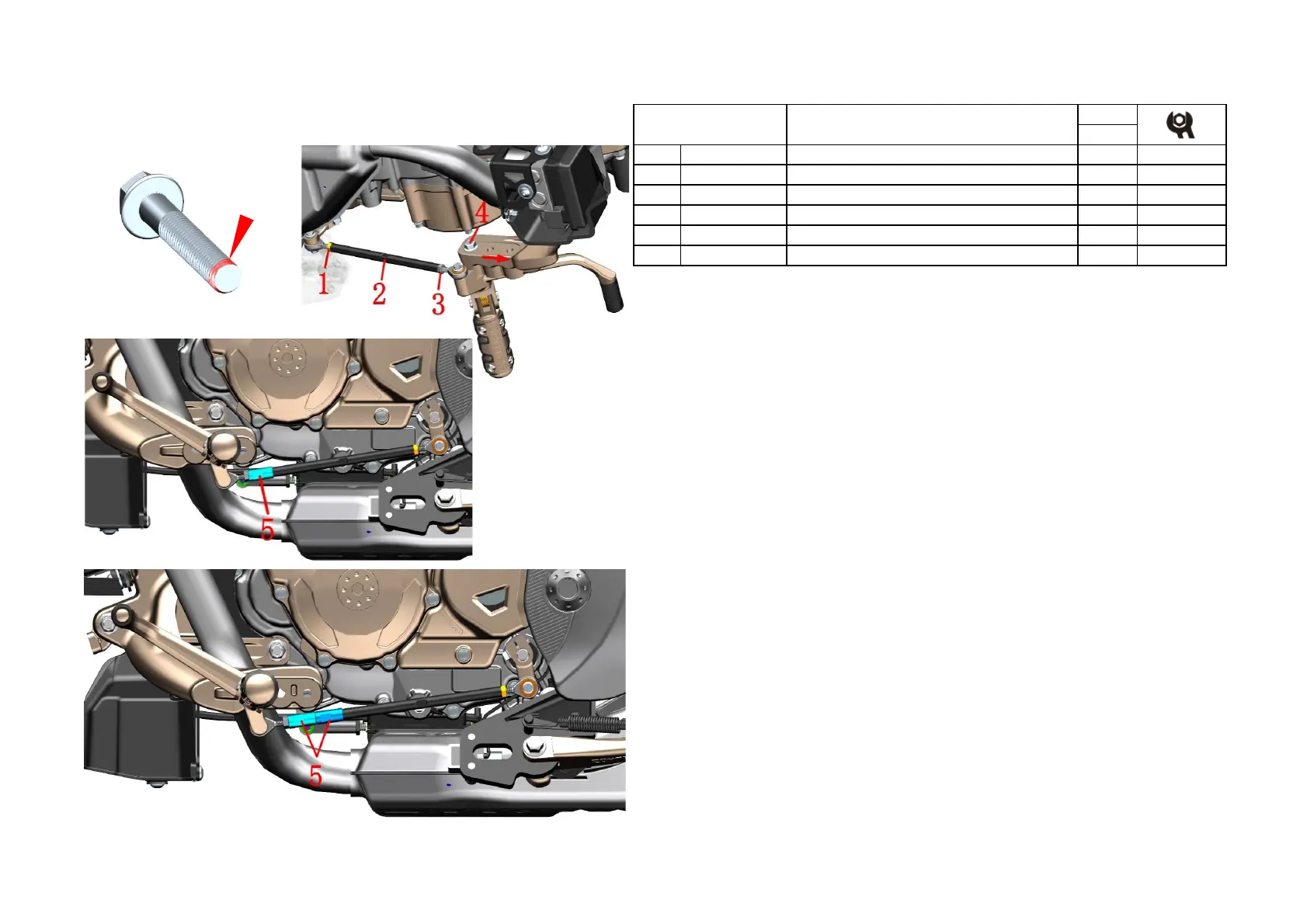

Fig.4 FOOT PEDAL
COMPONENT
PROCEDURE:
●Move front left pedal foeward
First use 8# open-end wrench fasten the groove in the middle of adjustment screw⑵, and use the 10# open-end
wrench to loosen the nut ⑴ and ⑶, and remove the adjustment screw ⑵.
Remove the bolt ⑷,move forward to one mounting hole for the front left pedal assembly.
Re-assemble the pedal assembly after applying a proper amount of threaded fastening to the head of the bolt ⑷.
Use the open-end wrench to install the bushing ⑸ to the adjustment screw, use 1 piece bushing ⑸ for 1
hole.The whole car is shipped with two bushings ⑸ as standard. The bushing can only be fitted to the right-hand
thread side of the adjusting screw.
Rotating the adjustment screw and adjustment shift lever to the suitable position and lock the nut ⑴ and ⑶.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The height of gear shift rod should be ajusted to a suitable range. Otherwise the riding experience would be
influenced.
Front left pedal mounting position adjustment
