20. Type exit to exit the Admin CLI.
Depending on your device configuration, you may be presented with an Access selection
menu. Type quit to disconnect from the device.
Configure Modbus mode
Modbus mode allows you to use the serial port for Modbus. See Modbus gateway.
To change the configuration to match the serial configuration of the device to which you want to
connect:
WebUI
1. Log into the IX14 WebUI as a user with Admin access.

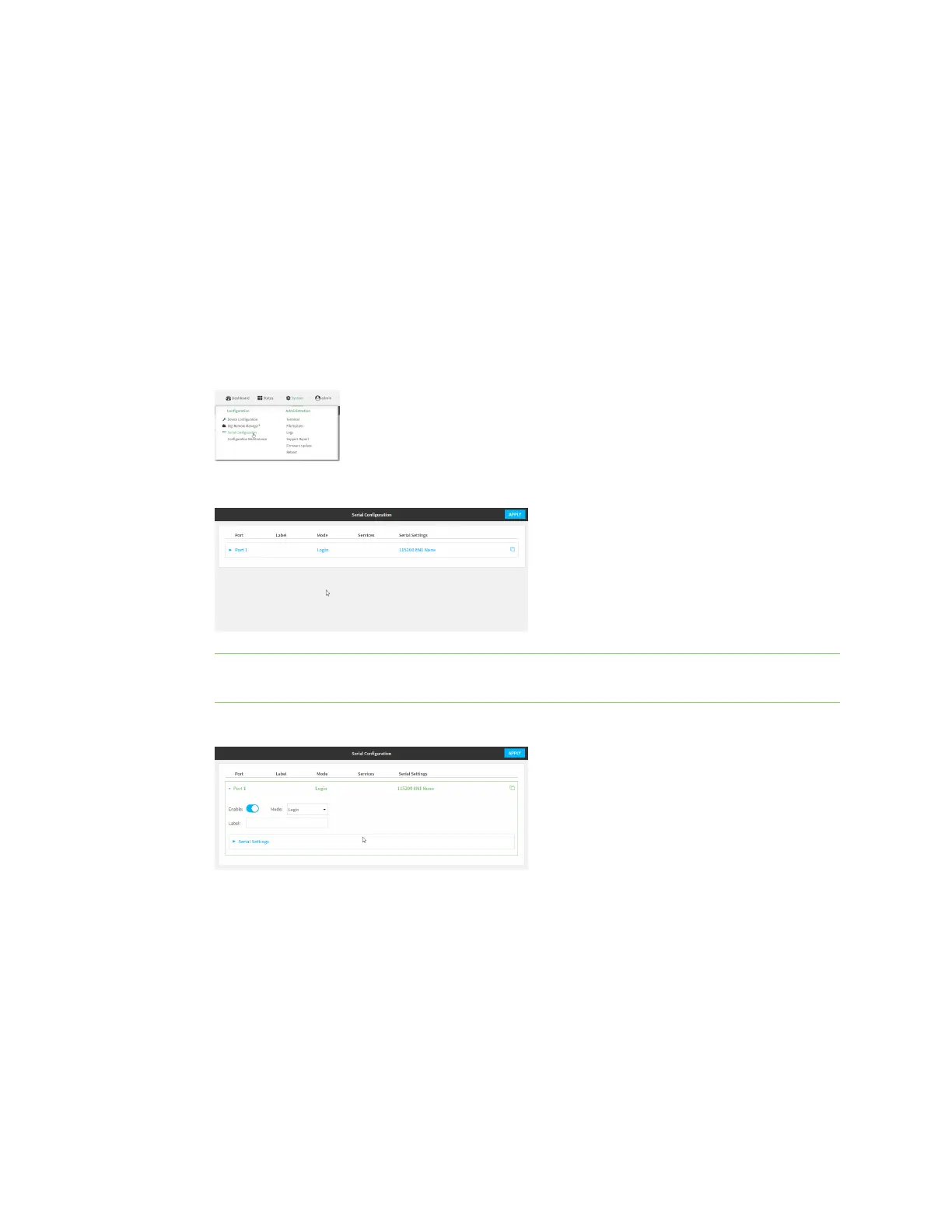

2. On the menu, click System. Under Configuration, click Serial Configuration.
The Serial Configuration page is displayed.
Note You can also configure the serial port by using Device Configuration > Serial. Changes
made by using either Device Configuration or Serial Configuration will be reflected in both.
3. Click the name of the port that you want to configure.
The serial port is enabled by default. To disable, toggle off Enable.
4. For Mode, select Modbus.
5. (Optional) For Label, enter a label that will be used when referring to this port.
6. Expand Serial Settings.
The entries in the following fields must match the information for the power controller. Refer
to your power controller manual for the correct entries.
a. Baud rate: For Baud rate, select the baud rate used by the device to which you want to
connect. The default is 115000.
