Dräger Infinity Series User Manual

Page 11-6 Infinity Gamma Series VF4
Displaying Respiration Data
If the ST, IBP2, and either the etCO
2
or Multigas locked options
are enabled, you can call up the Rsp display from the Main
Screen menu as follows:

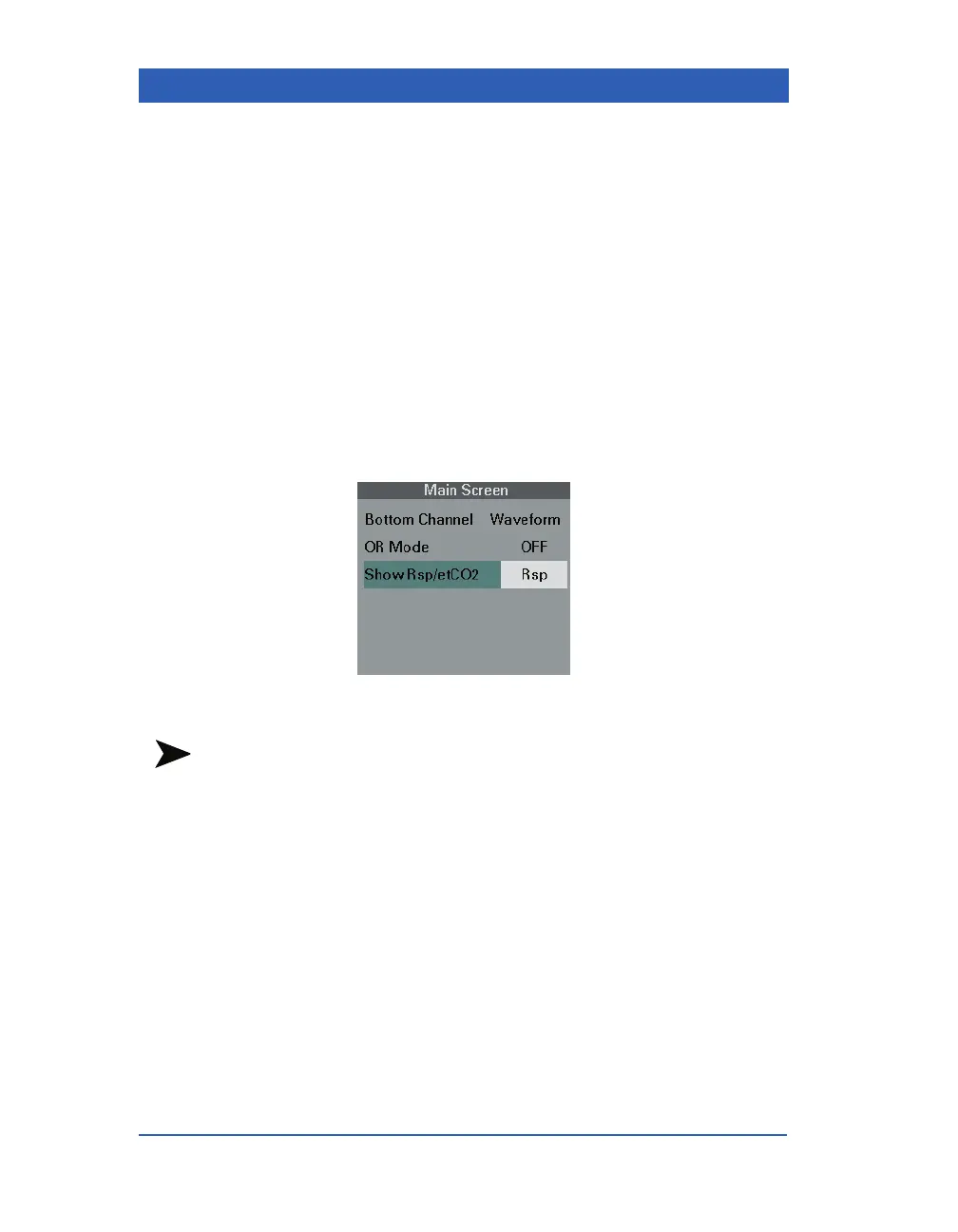

STEPS: Displaying Respiration Data
1. Press the Menu fixed key.
2. Click on
Monitor Setup.
3. Click on
Main Screen.
4. Click on
Show Rsp/etCO2.
5. Select
Rsp and click the knob.
NOTE: The menu option Show Rsp/etCO2 appears only if the
ST, IBP2, and either the etCO2 or Multigas locked options are
enabled.
When you first turn the respiration display on, the monitor
relearns the patient’s respiration pattern and displays Rsp
Relearning in the message field at the bottom of the screen and
the
LRN label in the Rsp parameter box.
