Dräger Infinity Series User Manual

Multigas
VF4 Infinity Gamma Series Page 14-9
OR Mode
NOTE: Multigas monitoring is available only for monitors
Gamma XL in the OR mode. The OR mode is available only for the
adult and pediatric patient categories.
STEPS: Selecting the OR Mode
1. Verify that the adult or pediatric patient category is selected.
2. Press the
Menu fixed key.
3. Click on
Monitor Setup.
4. Click on
Main Screen.

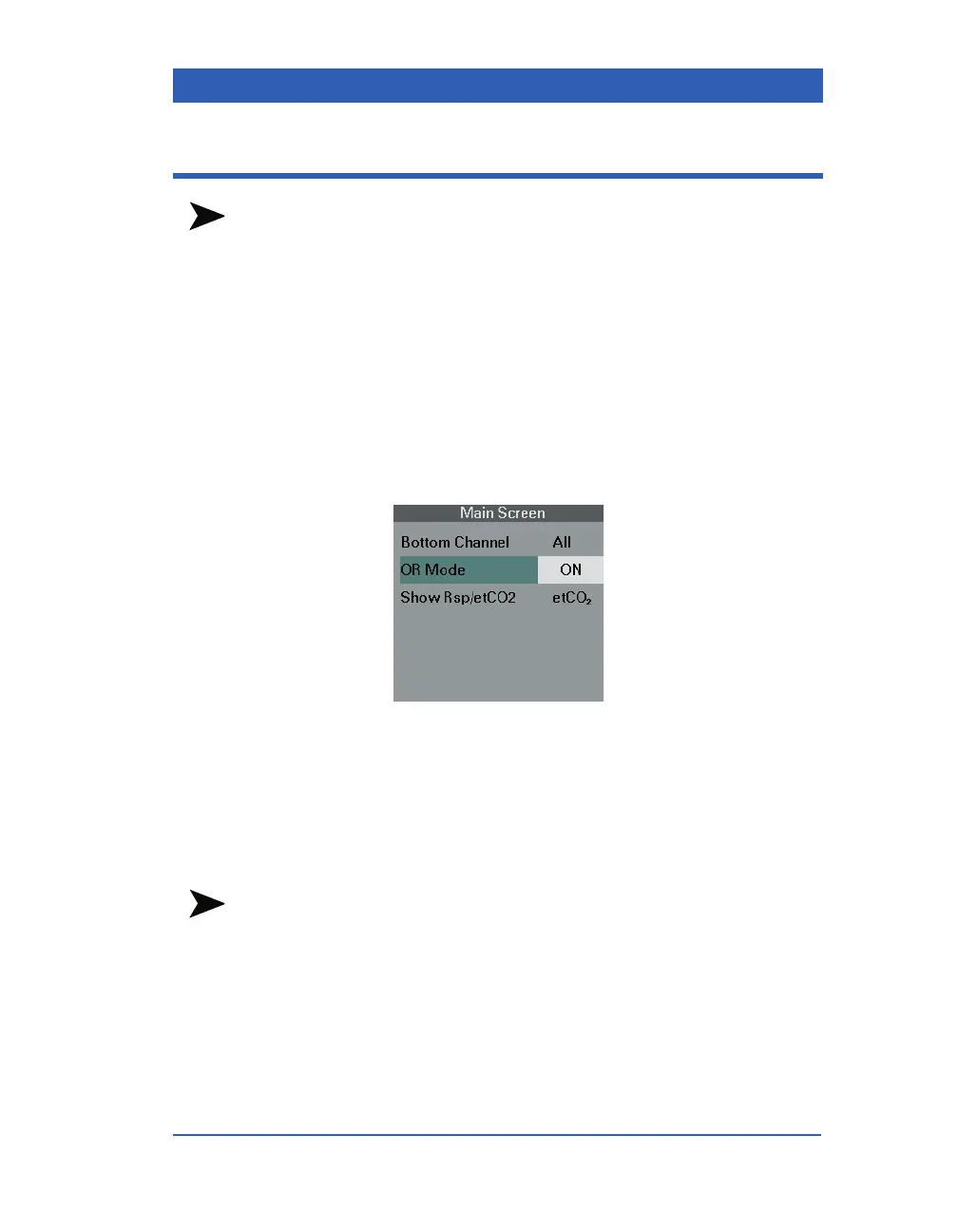

5. Click on
OR Mode.
6. Select
ON and click the knob.
The main screen configuration changes to the OR layout, show-
ing the CO
2
and multigas parameter boxes as well as the etCO
2
waveform in the bottom channel (see below).
NOTE: The alarm behavior for some parameters changes in the
OR mode. For details, see the chapter Alarms and Messages.
