Multigas
VF4 Infinity Gamma Series Page 14-7
!
The Gamma XL and the Scio module must both be con-
nected to a hospital outlet (USA: hospital-grade outlet)
within the same medically used room.
! When the Gamma XL is used with the Scio module, it
meets the Class A limits of CISPR11. The system is not
intended for connection to public mains.

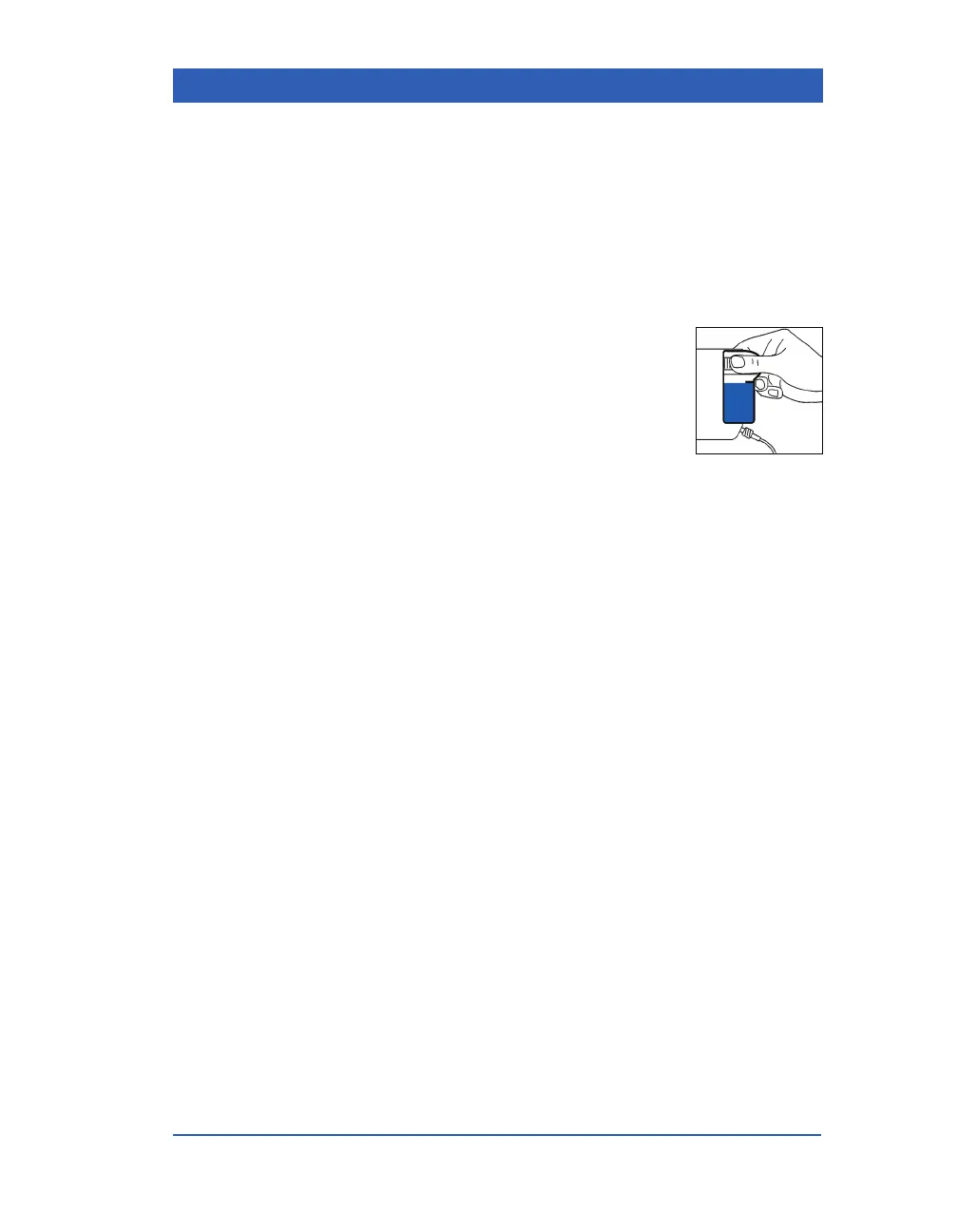

Installing/Removing the Water Trap
Push the water trap into its receptacle on Scio’s
front panel until the trap clicks into place. Make
sure the trap is empty.
To remove the trap, hold it firmly on the ridged
surfaces and pull it out of the receptacle.
(For information on emptying the water trap and
related maintenance functions, see the appendix Cleaning, Disin-
fecting, Sterilizing.)
Connecting Sampling Lines and Power Cord
1. Connect one end of the sampling line to the water trap, and
the other end to the airway T-connector.
2. Connect one end of the exhaust tubing to the exhaust port at
the rear of the module, and the other end to the hospital’s gas-
scavenging system.
3. Connect the power supply to the power connector at the rear
of the module.
4. Connect the power supply to an outlet specified for the use of
medical equipment in a hospital.
