Chapter 3: Design
3-6 Fresenius Medical Care multiFiltrate IFU-EN-UK 15A-2015

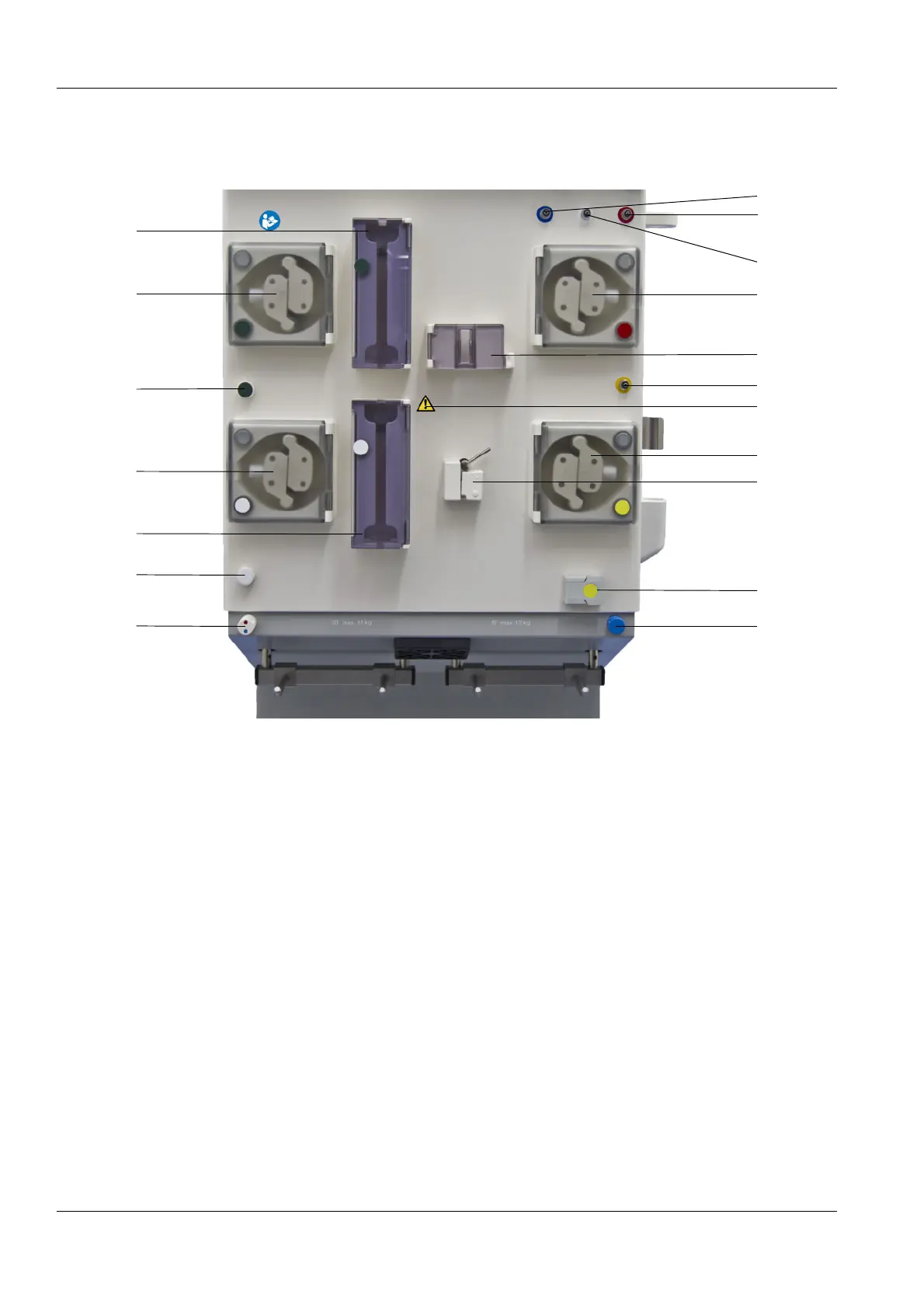

3.2.3 Extracorporeal blood circuit module
Legend 1 Dialysate heater (green dot)
2 Dialysate pump (green dot)
3 Tube holder
4 Substituate pump (white dot)
5 Substituate heater (white dot)
6 Tube holder
7 Tube holder
8 Tube holder
9 Blood leak detector
10 Venous tube clamp and optical detector
11 Filtrate pump (yellow dot)
12 Warning label: Protection against the effects of defibrillator
discharge is only provided when using appropriate tubing systems
(see chapter 8.1.1 on page 8-2)
13 Filtrate pressure port (yellow)
14 Air detector
15 Blood pump (red dot)
16 Pressure port before filter (white)
17 Arterial pressure port (red)
18 Venous pressure port (blue)
1
2
3
4
5
6
7
17
16
15
14
13
11
10
9
8
18
12
