GE RAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
7-24 Section 7-5 - Remote Access to Service Platform
7-5-4 CSD (Common Service Desktop)
1.) In the Total Access Session window ( see Figure 7-26 on page 7-24 ) find the item labeled UL-CSD
and click on Connect. Within ~ 1 minute the “Proxy Config” window opens.
NOTE: The system may require a correct proxy configuration. Please ask the customer.
2.) If available and required enter the correct proxy server address from your location and then click
OK.
3.) The next window shows the command to be issued, click on OK to grant the request.
4.) Select “GE Service” from the pull-down menu, enter the password (changes every six months) and
then click Okay.
NOTE: For detailed description see Figure 7-6 on page 7-31

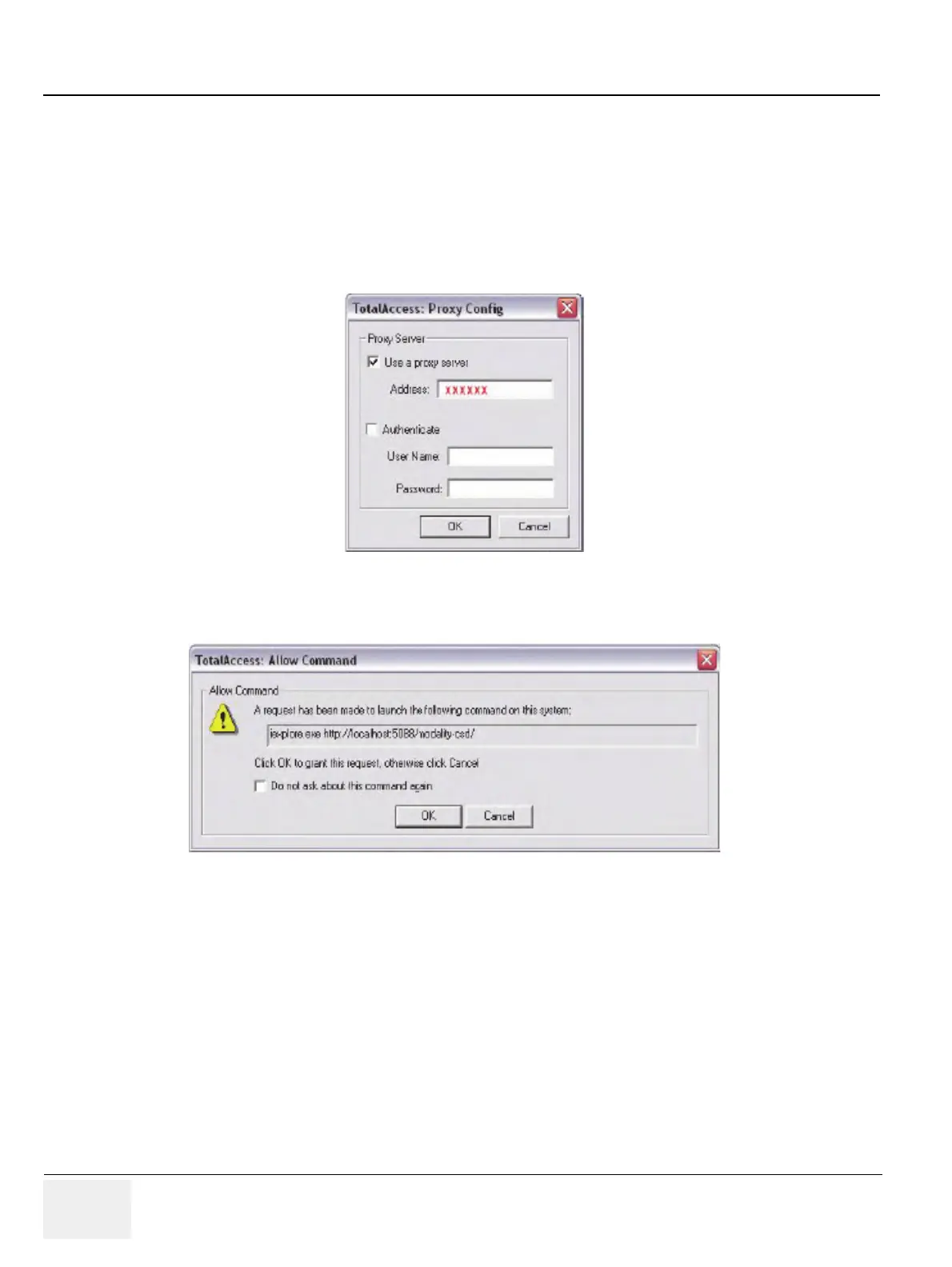

Figure 7-23 Proxy Config
Figure 7-24 allow command
To Next Page
