GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-175

Section 8-57

Replacement of ECG Kit assy

8-57-1 Manpower

One person, 10 minutes.

8-57-2 Tools

Philips screwdriver

8-57-3 Preparations

Power Off/Shutdown the system as described in 4-3-2 on page 4-4.

8-57-4 Removal Procedure

1.) Remove 5 probe holders.

2.) Unscrew 9 numbers of screws below the keyboard base.

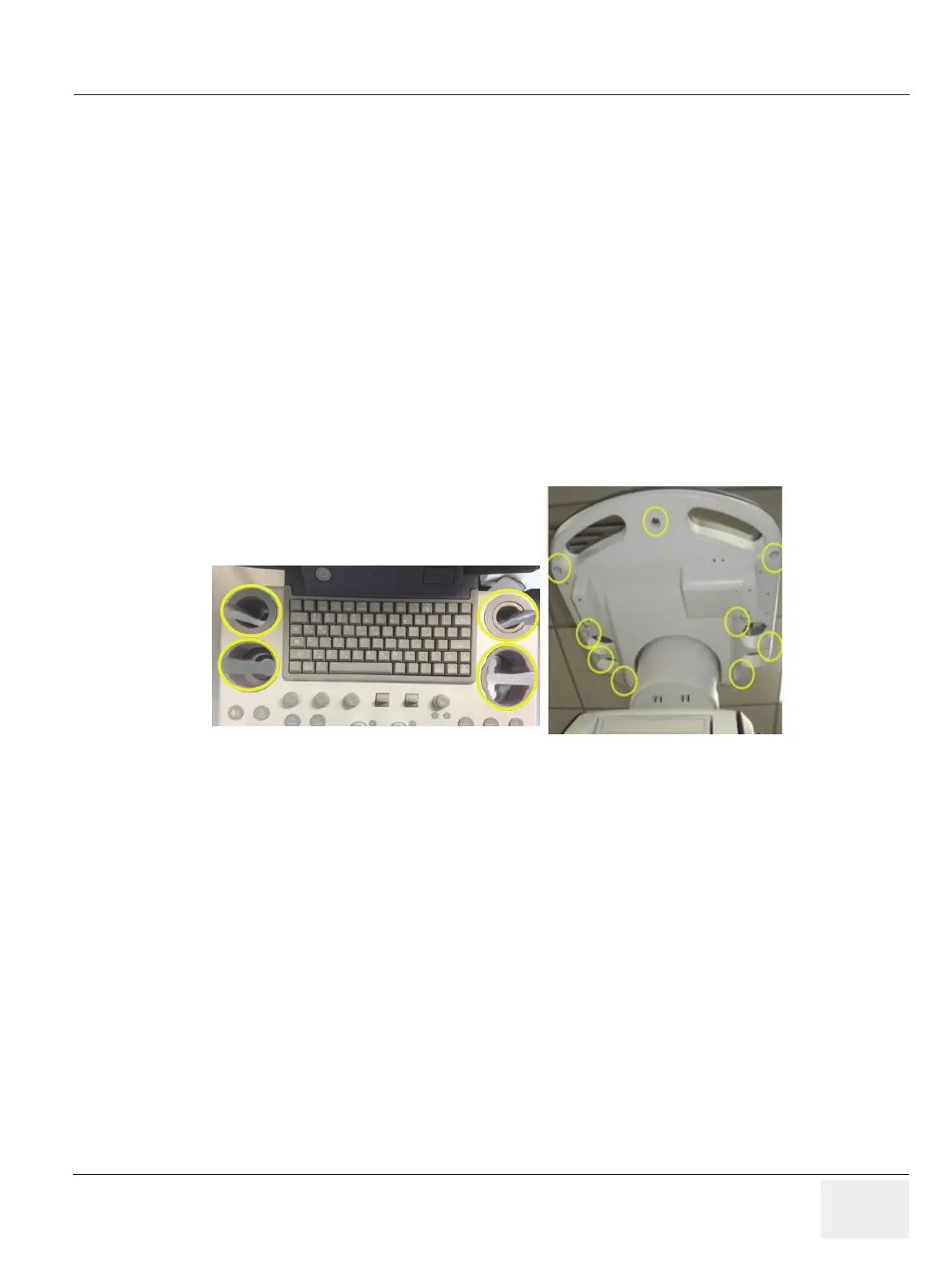

Figure 8-251 Removing 5 Probe holders and unscrewing 9 screws below the keyboard base
