8-146 Section 8-49 - Replacement of the DVD

Section 8-49

Replacement of the DVD

8-49-1 Manpower

One person, 10 minutes

8-49-2 Tools

Philips screwdriver

8-49-3 Preparations

1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.

8-49-4 Removal Procedure

1.) Remove FRONT PRINTER BEZEL ASSY BT16. Refer to the below picture.

2.) Unplug two cables from the DVD.

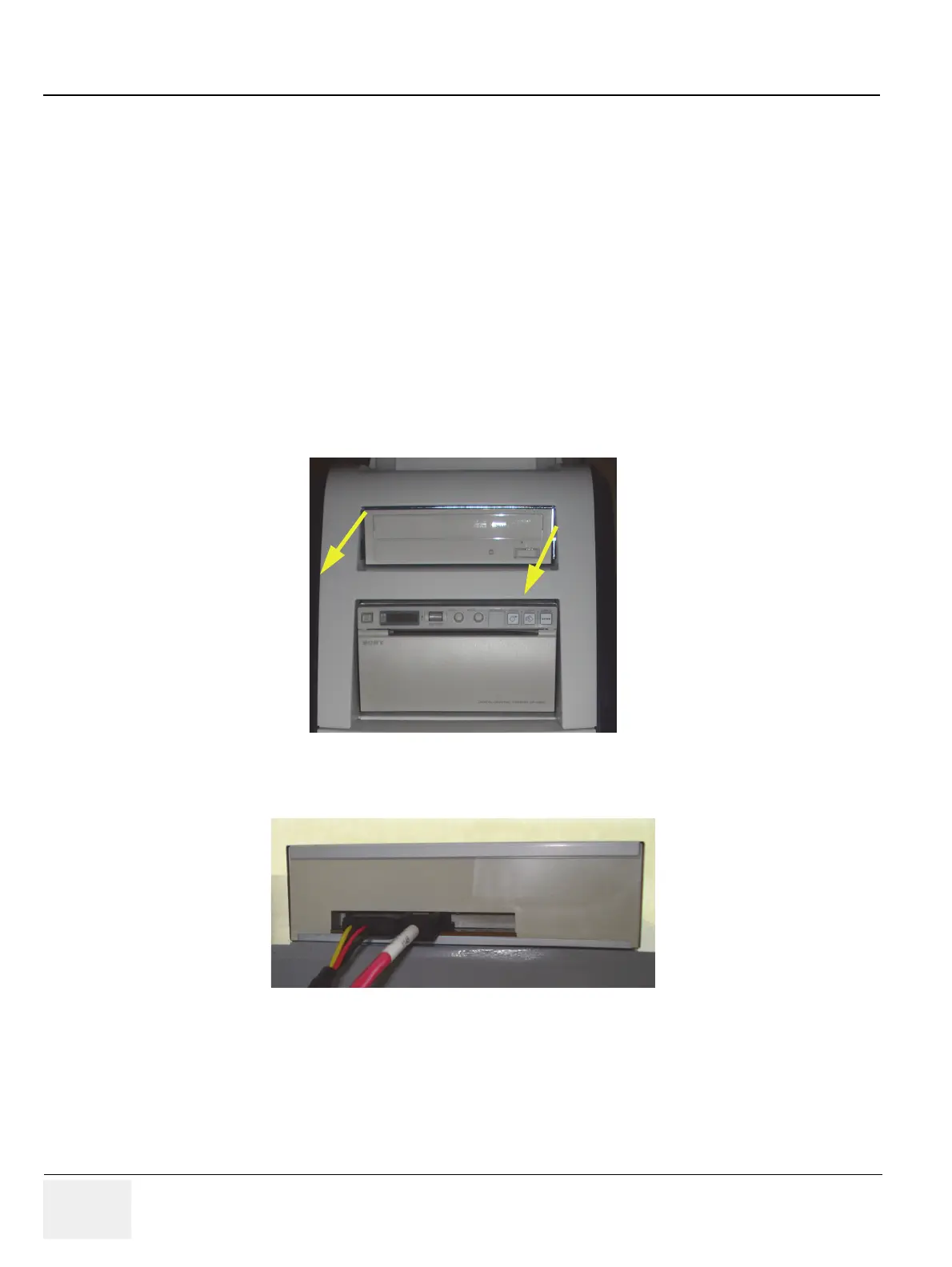

Figure 8-207 Removing FRONT PRINTER BEZEL ASSY BT16

Figure 8-208 Unpluging two cables
