GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 3 - Setup Instructions 3-17

3-5-4 Connecting the DeskJet Color Printer

3-5-4-1 Connection via Bluetooth Adapter

The DeskJet Color Printer can be connected to an external, non-isolated power source. The bluetooth

adapter should be directly connected to the indicated USB 3 on rear panel

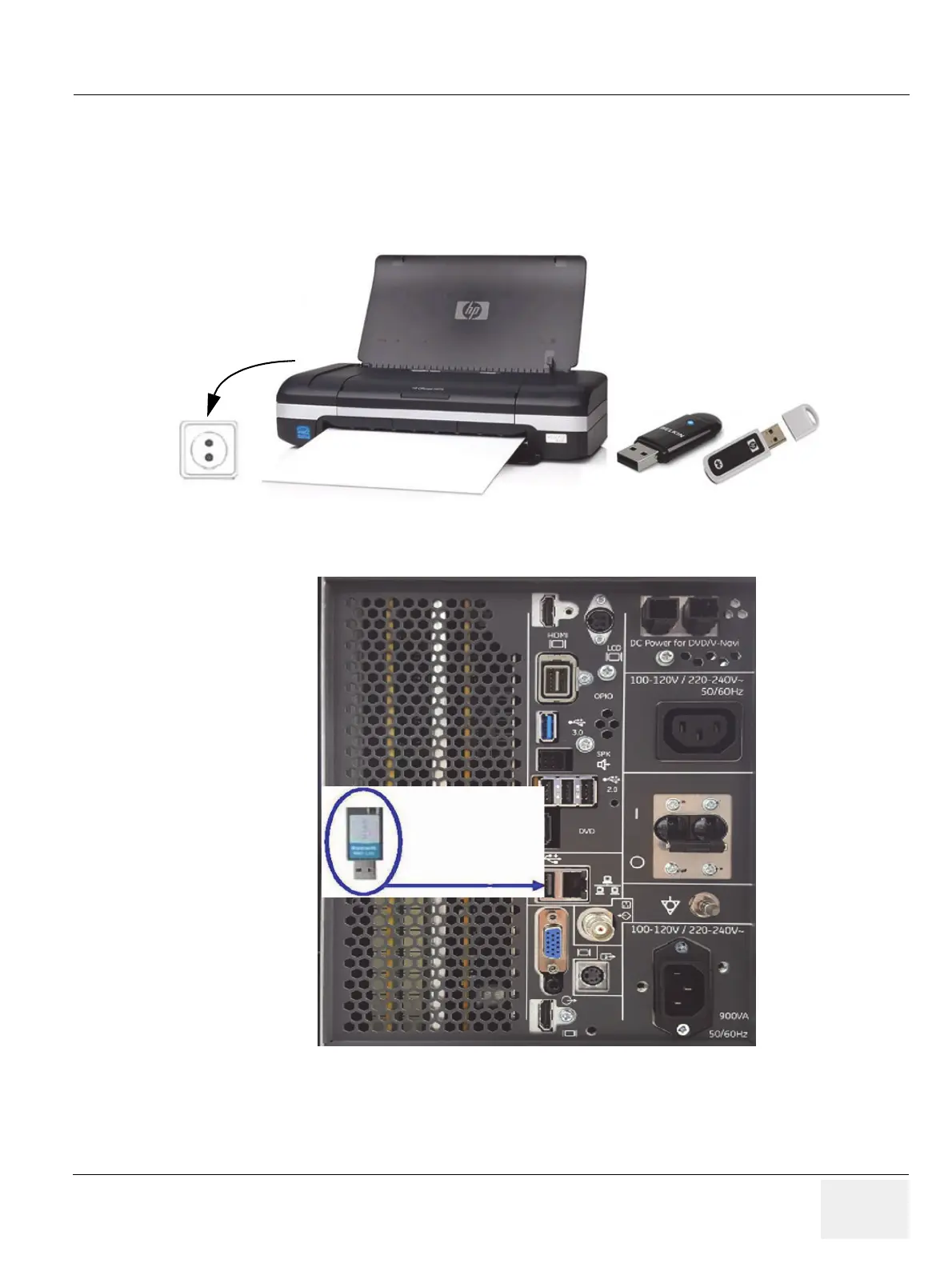

Figure 3-8 HP Officejet H470 DeskJet Printer connection (via Bluetooth Adapter)
