GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

8-152 Section 8-52 - Replacing optional Peripherals

8-52-3 Printer Installation (BW and Color)

8-52-3-1 BW Printer: SONY UP-D898, Color Printer: SONY UP-D25MD

1.) Assemble 2 EMI gaskets (5448934 - EMI gasket, side, b-w printer bkt-3) on printer base plate.

2.) Assemble 2 EMI gaskets (5447303 - EMI gasket, side, b-w printer bkt-2) on printer base plate.

3.) Assemble 2 EMI gaskets (5457475 - EMI gasket, side, b-w printer bkt-1) on printer base plate.

4.) Assemble printer base pate with B/W printer using 8 screws (2306562-screw FH M3 x 6).

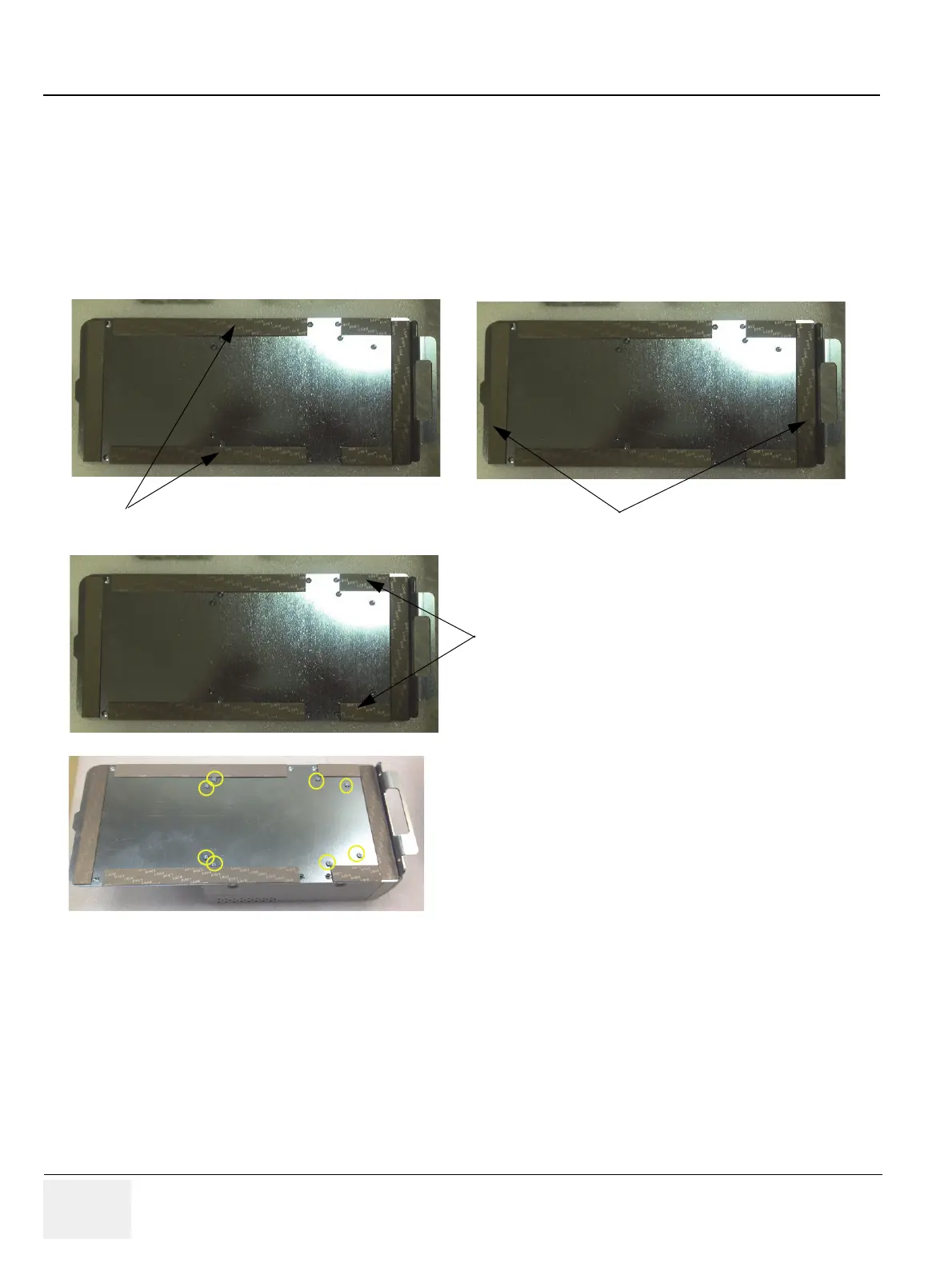

Figure 8-215 B/W Printer assembly

EMI Gaskets (5457475)

EMI Gaskets (5448934)

EMI Gaskets (5447303)
