GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-121

Section 8-37

Replacement of the CASTER

8-37-1 Manpower

One person, 10 minutes

8-37-2 Tools

Monkey Wrench

8-37-3 Preparations

1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.

NOTE: Lock casters before removing them.

8-37-4 Removal Procedure

1.) Follow the removal procedure of Section 8-24 "Replacement of ASSY Bumper Base Rubber" .

2.) Unscrew the NUT. And pull out the CASTER. Refer to the figure below.

8-37-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

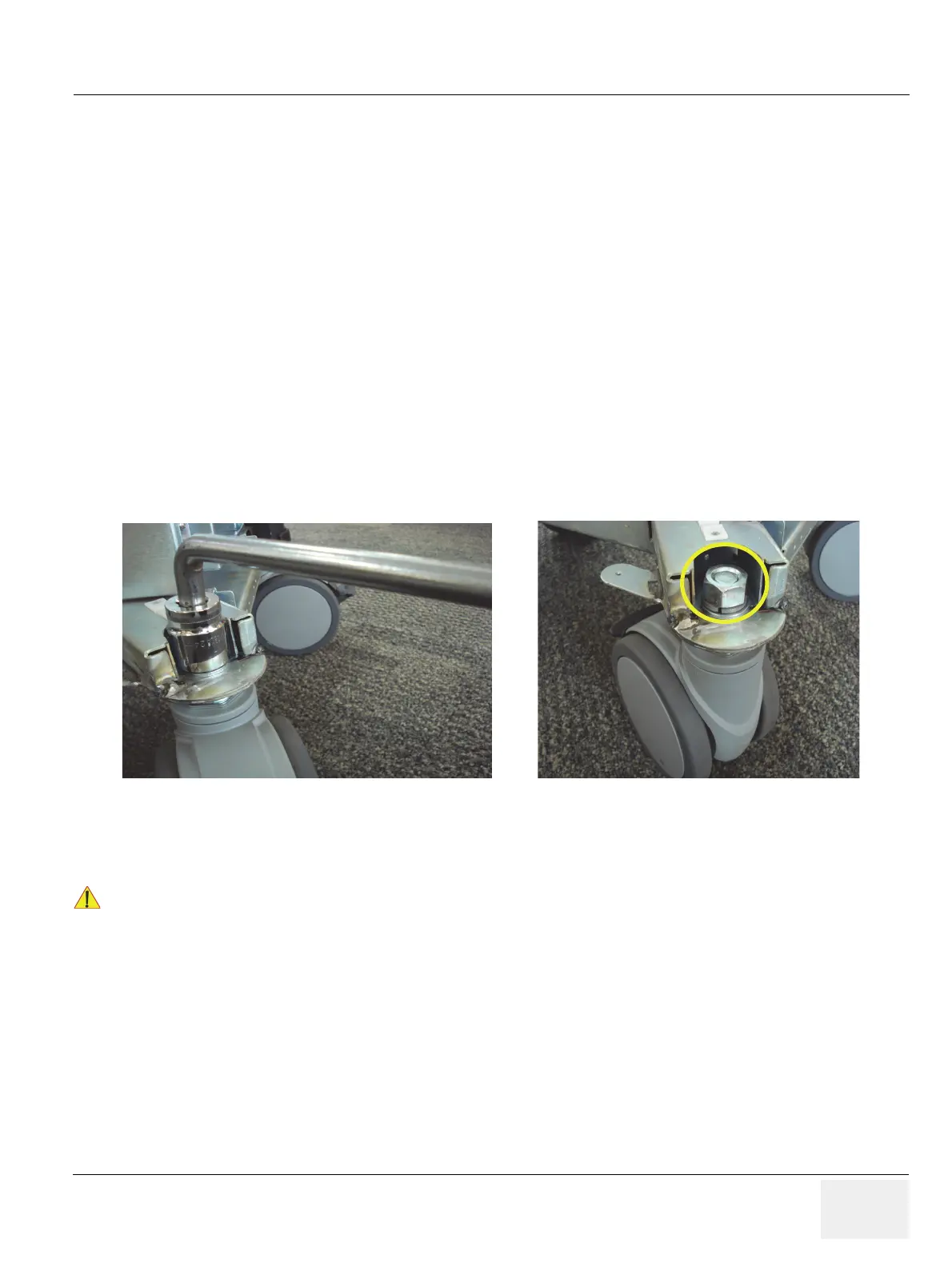

Figure 8-177 Unscrewing the NUT

NOTICE

Press the caster wheel locks and ensure that they keep the system from moving.
