8-34 Section 8-14 - Replacement of REAR CABINET BEZEL ASSY BT16

Section 8-14

Replacement of REAR CABINET BEZEL ASSY BT16

8-14-1 Manpower

1 person, 1 minute

8-14-2 Tools

Not required

8-14-3 Disassembly Procedure

1.) Remove the Rear Cabinet BEZEL ASSY BT16. Refer to the figure below.

8-14-4 Installation Procedure

Install the new parts in the reverse order of removal procedure.

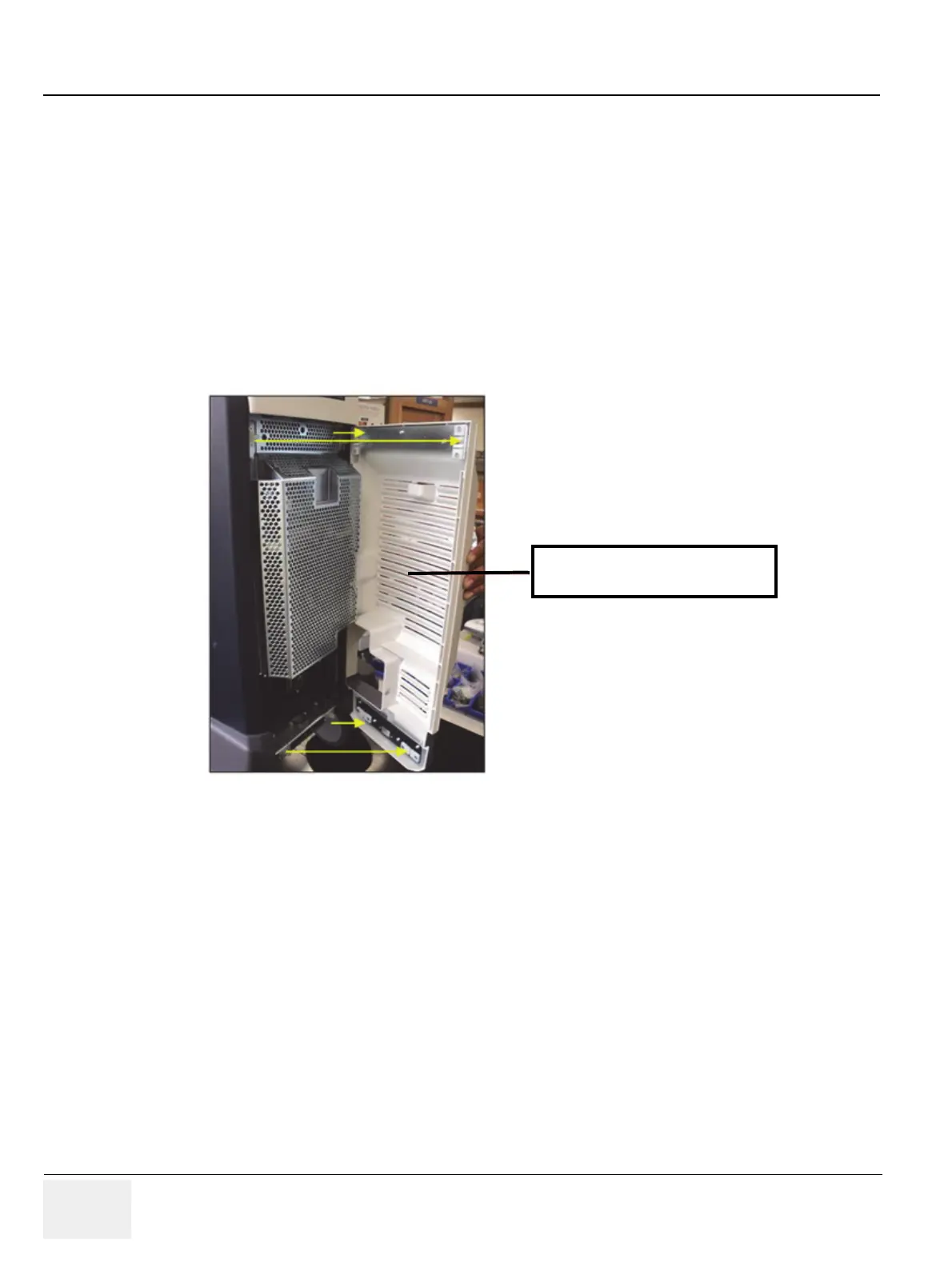

Figure 8-36 Removing the REAR CABINET BEZEL ASSY BT16

REAR CABINET BEZEL ASSY

BT16
