GE DRAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-181
Section 8-59
Replacement of WIRELESS LAN
8-59-1 Manpower
One person, 30 minutes
8-59-2 Tools
Standard Field Service Tool Kit
8-59-3 Preparation
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-59-4 Removal Procedure
1.) Unscrew 2 screws to remove POWER CORD BRACKET.
2.) Remove REAR COVER and unscrew 7 screws to remove REAR EMI COVER.

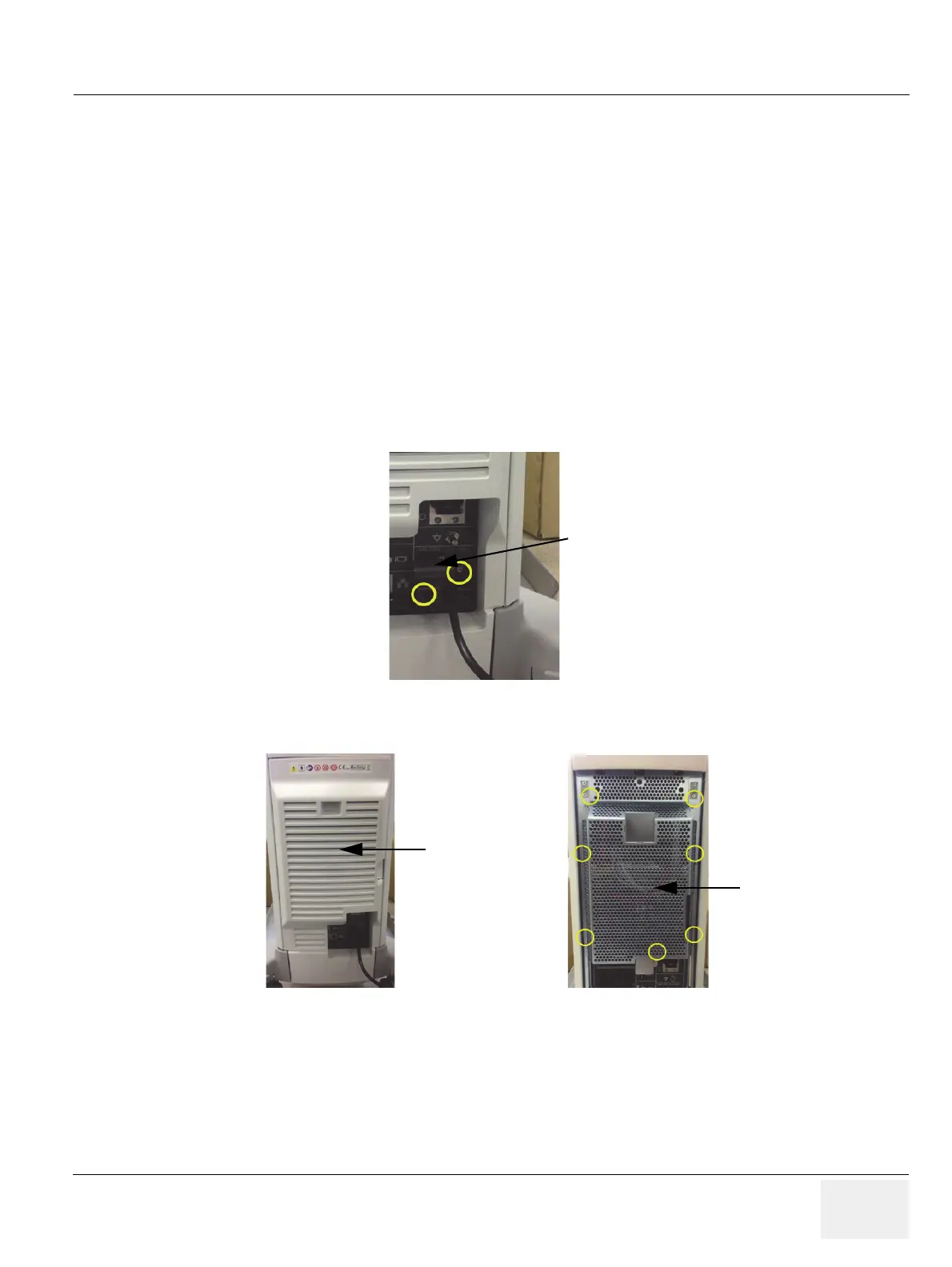

Figure 8-260 Unscrewing 2 screws to remove POWER CORD BRACKET
Figure 8-261 Removing REAR COVER and unscrewing 7 screws to remove REAR EMI COVER
POWER CORD BRACKET
REAR COVER
REAR EMI COVER
