GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-145

3.) Unscrew 6 screws.

8-48-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-39: Replacement of the DBP - Functional Tests.

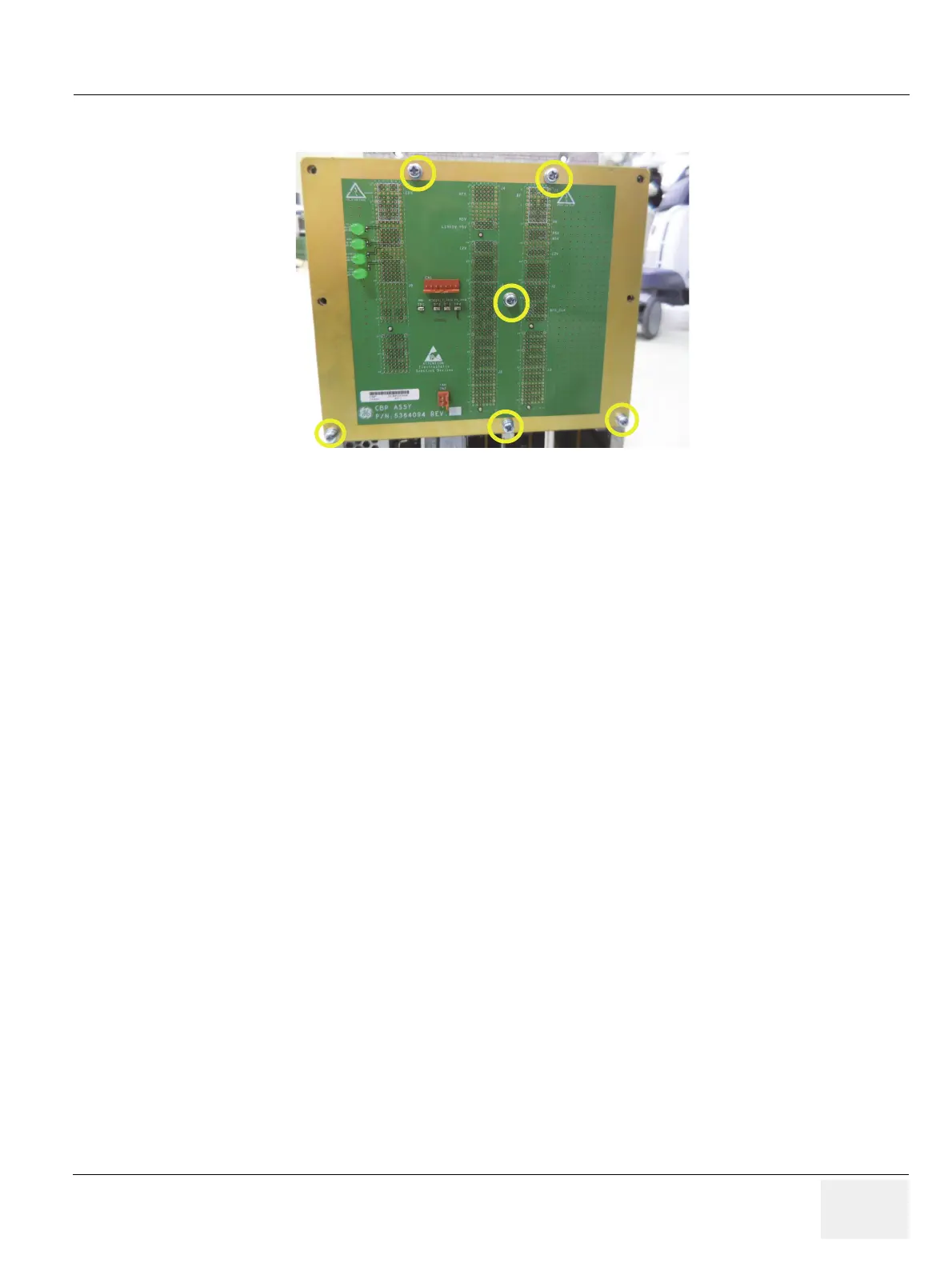

Figure 8-206 Unscrewing 6 screws
