GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-81

Section 8-24

Replacement of ASSY Bumper Base Rubber

8-24-1 Manpower

One person, 13 minutes

8-24-2 Tools

Philips screwdriver

8-24-3 Disassembly Procedure

1.) Remove the FRONT CABINET BEZEL ASSY BT16. Refer to the figure below.

2.) Remove the FRONT PRINTER BEZEL ASSY BT16. Refer to the figure below.

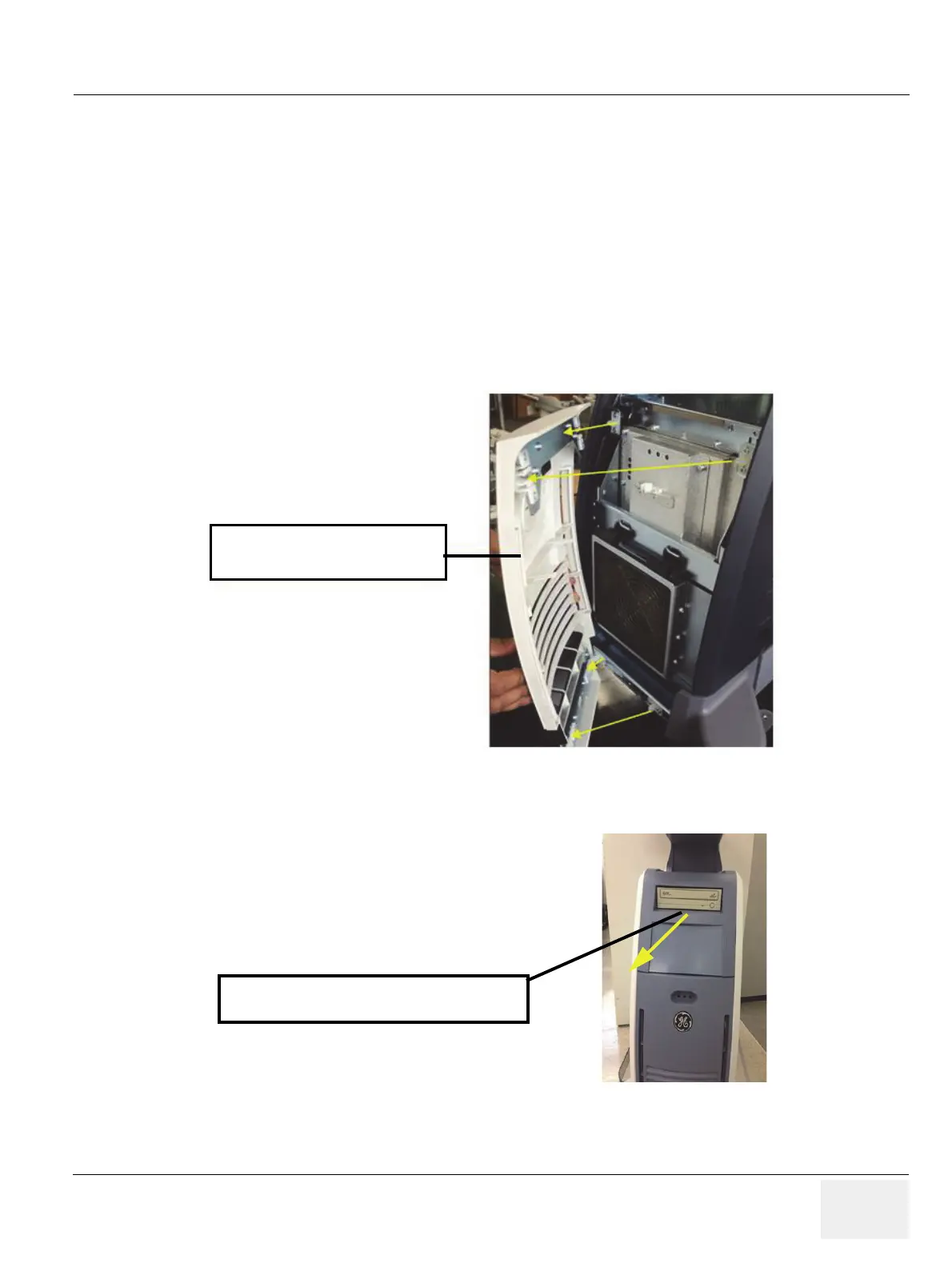

Figure 8-119 Removing the FRONT CABINET BEZEL ASSY BT16

Figure 8-120 Removing the FRONT PRINTER BEZEL ASSY BT16

FRONT PRINTER BEZEL

ASSY BT16

FRONT PRINTER BEZEL ASSY BT16
