GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 7 - Diagnostics/Troubleshooting 7-37

7-6-6 Utilities

The Utilities page contains a variety of Windows utility tools to indicate the status of the system, in

addition to various other tools.

Content in this section

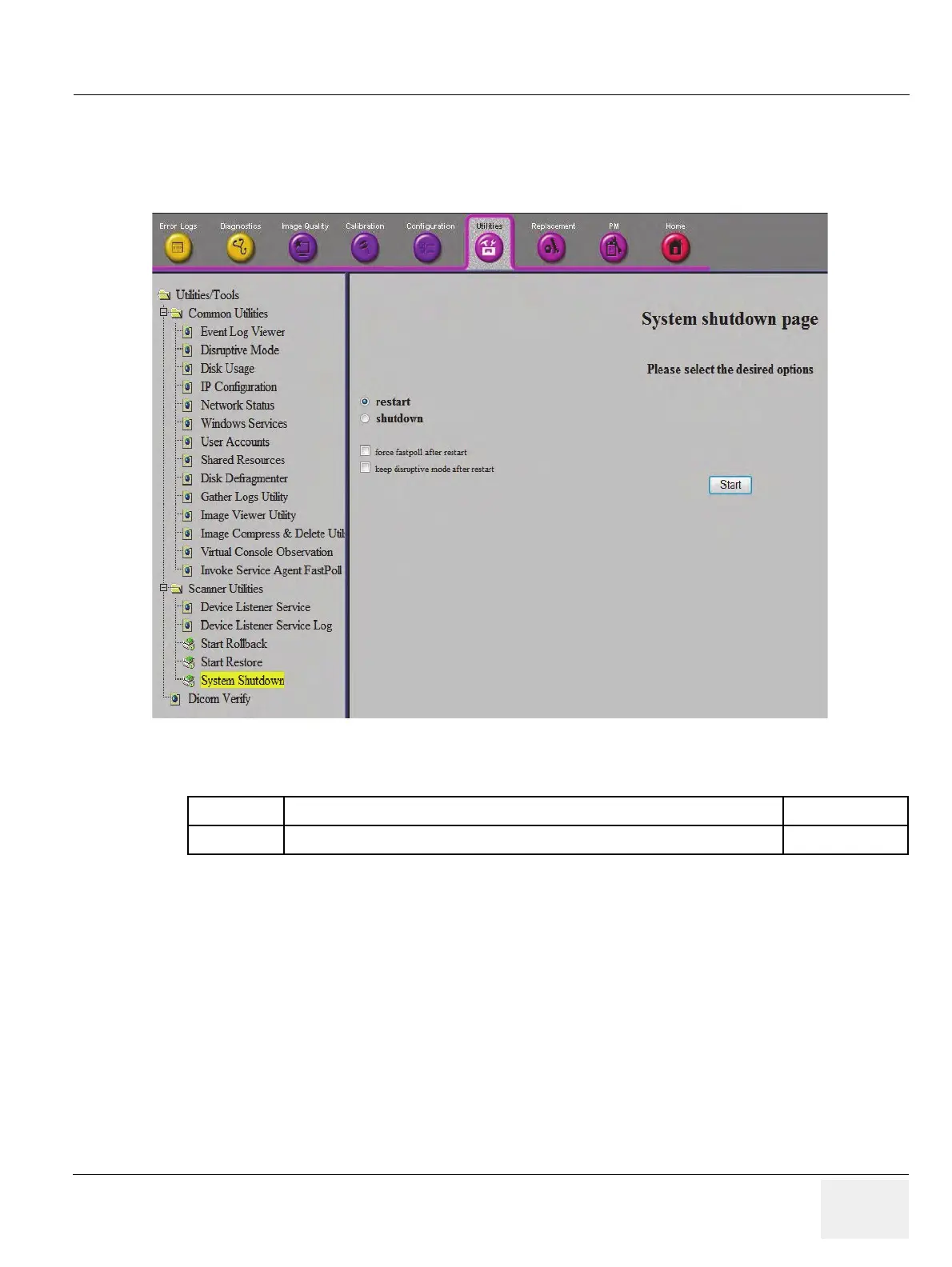

Figure 7-39 Common Service Desktop - Utilities

7-6-6-1

Common Utilities

page 7 - 44

7-6-6-2

Scanner Utilities

page 7 - 46
