GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 9 - Renewal Parts 9-7

Section 9-5

LCD Monitor

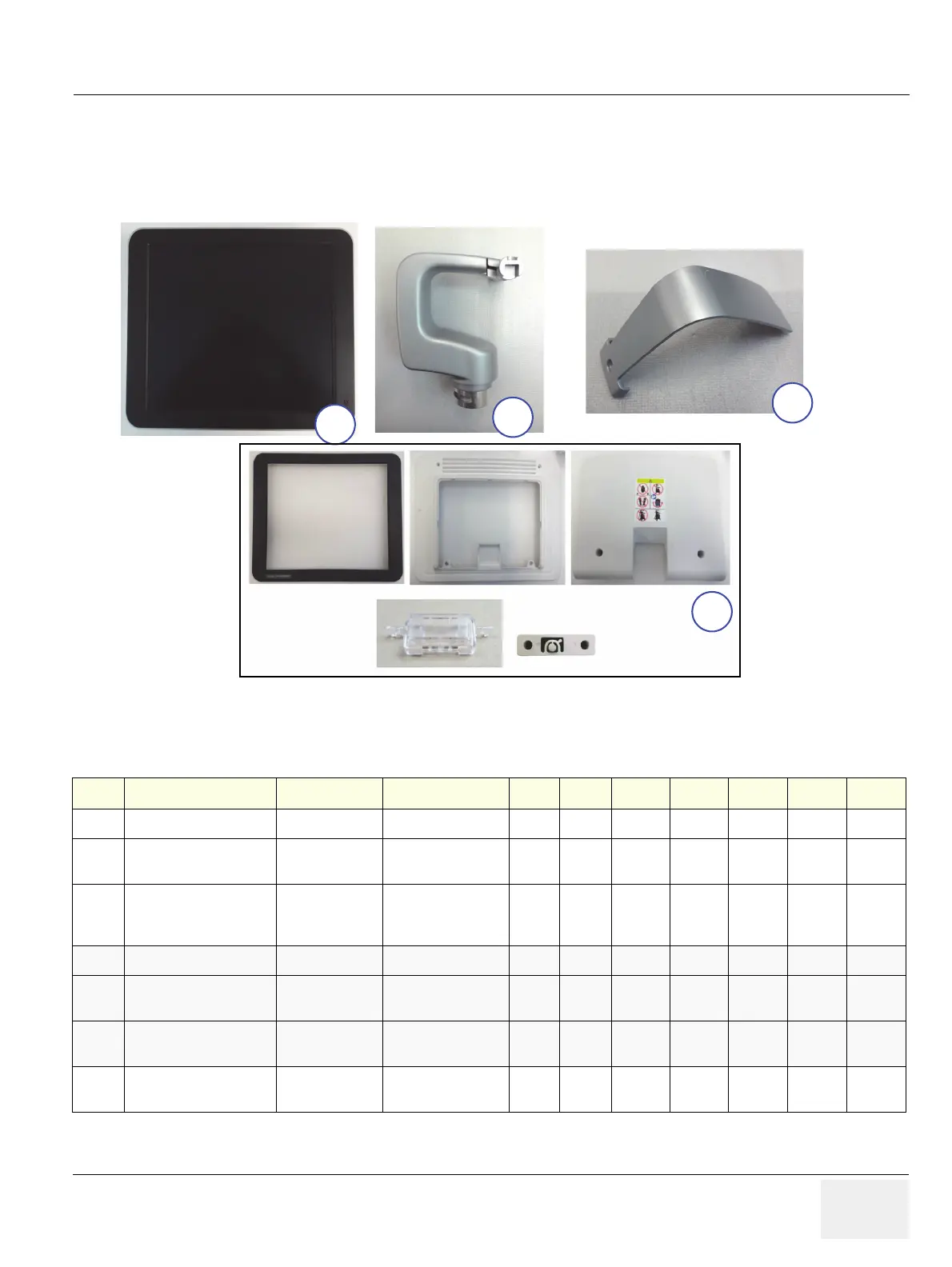

Figure 9-3 LCD Monitor

Table 9-4 LCD Monitor

Item Part Name Part Number Description Qty FRU BT13 BT14 BT15 BT16 BT18

201

TE17INCH LCDMON

5669733

17" LED Monitor

11 N N N Y Y

202

17INCH MONITOR

ARM BT16

5722185

17” MONITOR

ARM BT16

11 N N N Y Y

203

17INCH MONITOR

ARM COVER BT16

5720705

17” MONITOR

ARM COVER

BT16

11 N N N Y Y

204

Tetris HDMI Cable

5717001

Tetris HDMI Cable

1 1 N N N Y Y

205

Tetris Monitor Power

Cable

5717002

Tetris Monitor

Power Cable

1 1 N N N Y Y

206

Tetris Monitor USB

Cable

5717003

Tetris Monitor USB

Cable

1 1 N N N Y Y

207

TE17INCH COVERS

5728055

TE17INCH

COVERS

11 N N N Y Y

201

202

207

203
