GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

8-68 Section 8-21 - Replacement of Monitor

2.) Unscrew 5 screws to disconnect the LCD cables.

3.) One person grab the MONITOR. the other person should unscrew the 2 hexagonal socket screws

and then separate the MONITOR for the LCD ARM. Refer to the figure below.

8-21-4 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-8: Replacement of Monitor - Functional Tests.

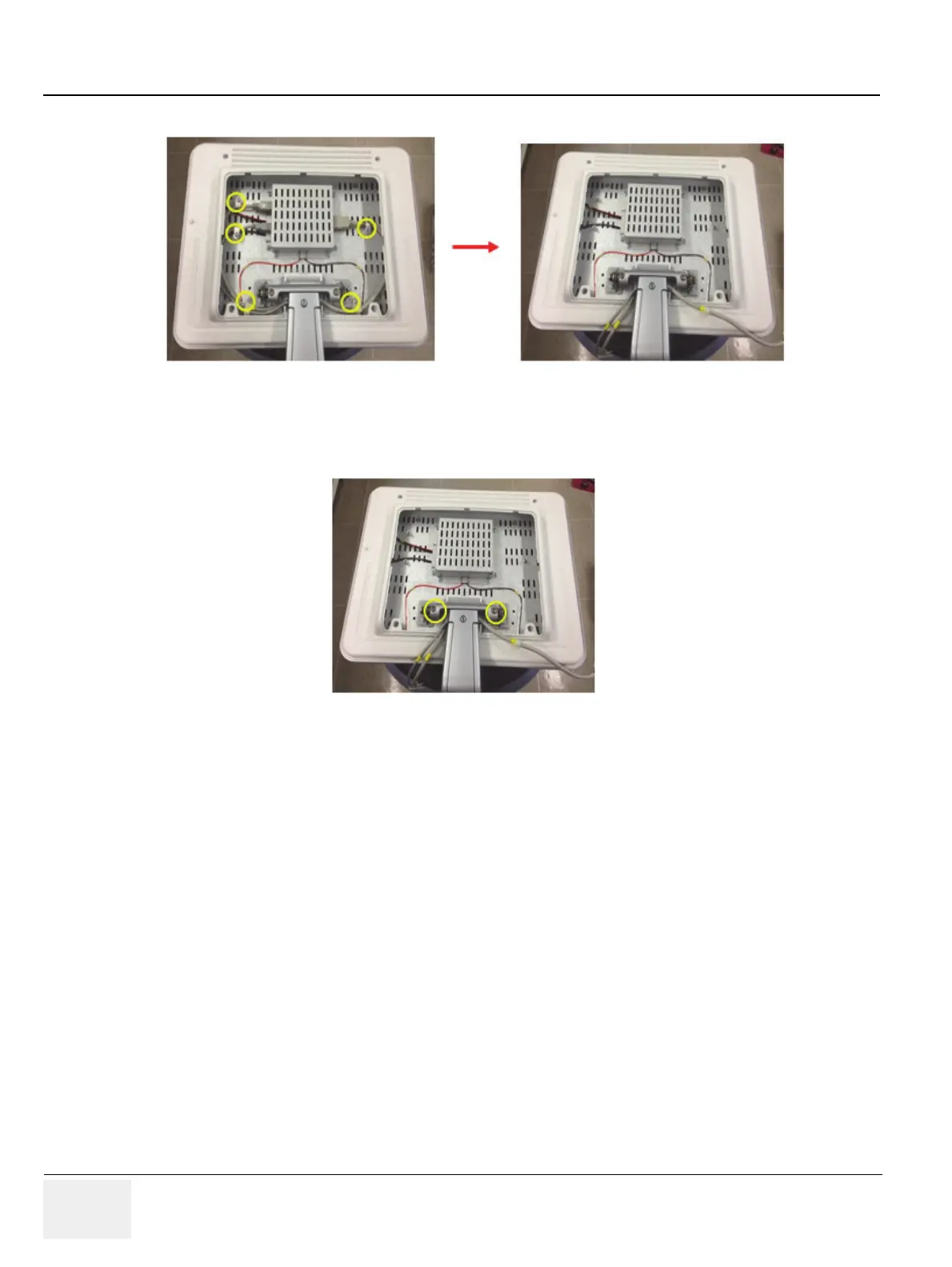

Figure 8-92 Unscrewing 5 screws to disconnect the LCD cables

Figure 8-93 Unscrewing 2 hexagonal screws to separate MONITOR
