GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-27

Section 8-10

Replacement of FRONT PRINTER BEZEL ASSY BT16

8-10-1 Manpower

1 people, 5 minutes

8-10-2 Tools

Philips screw driver

8-10-3 Disassembly Procedure

1.) Remove the FRONT PRINTER BEZEL ASSY BT16. Refer to the figure below.

2.) Unscrew 2 screws and remove the PRINTER DUMMY COVER ASSY BT16. Refer to the figure

below.

8-10-4 Installation Procedure

Install the new parts in the reverse order of removal procedure.

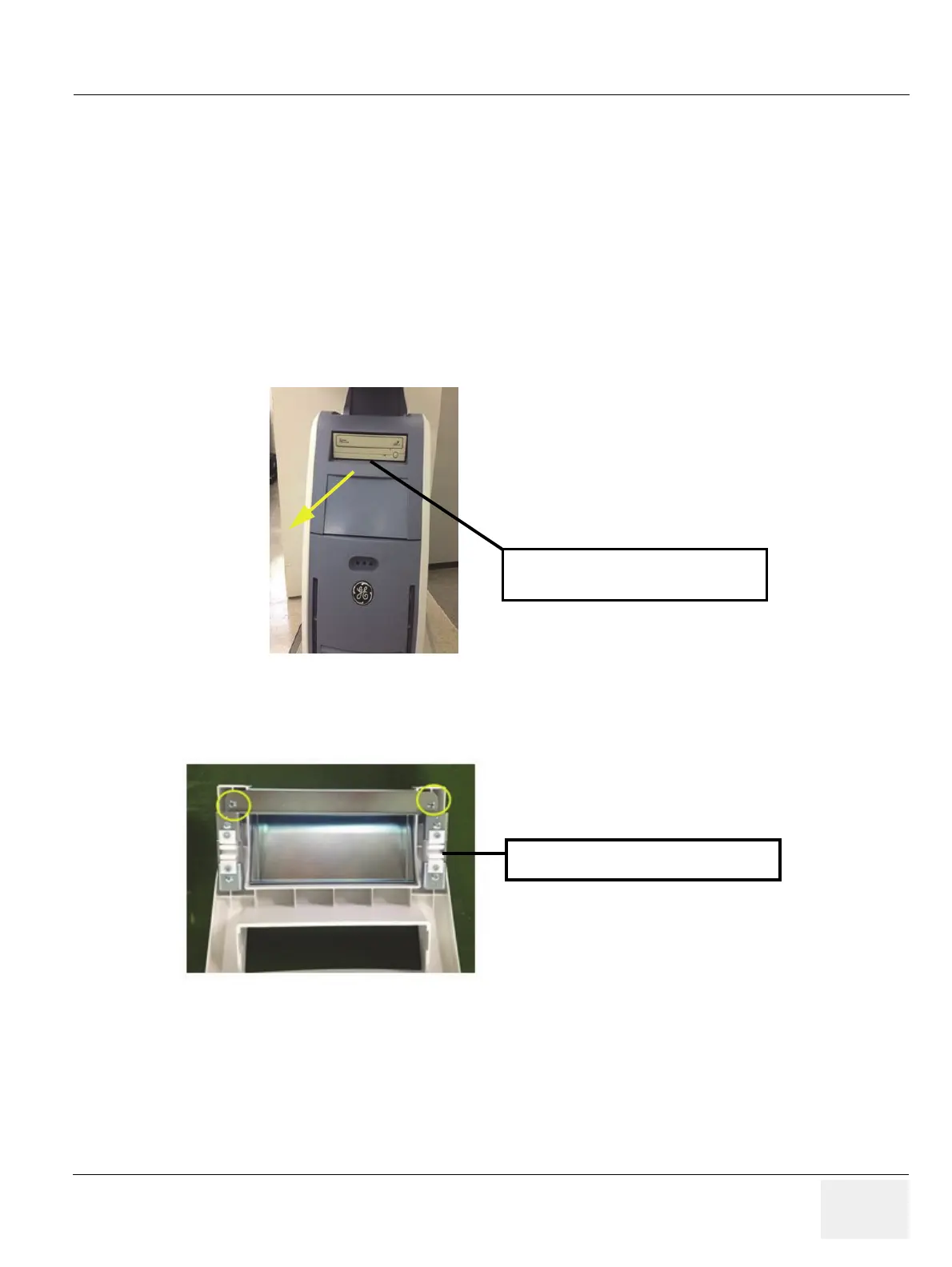

Figure 8-23 Removing the FRONT PRINTER BEZEL ASSY BT16

Figure 8-24 Removing the Printer Dummy Cover Assy BT16

FRONT PRINTER BEZEL ASSY BT16

PRINTER DUMMY COVER ASSY BT16
