GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

8-30 Section 8-12 - Replacement of Front PEDESTAL COVER BT16

Section 8-12

Replacement of Front PEDESTAL COVER BT16

8-12-1 Manpower

1 people, 5 minutes

8-12-2 Tools

Philips screw driver

8-12-3 Disassembly Procedure

1.) Remove the FRONT PRINTER BEZEL ASSY BT16. Refer to the figure below.

2.) Remove the TOP CABINET COVER 16. Refer to the figure below.

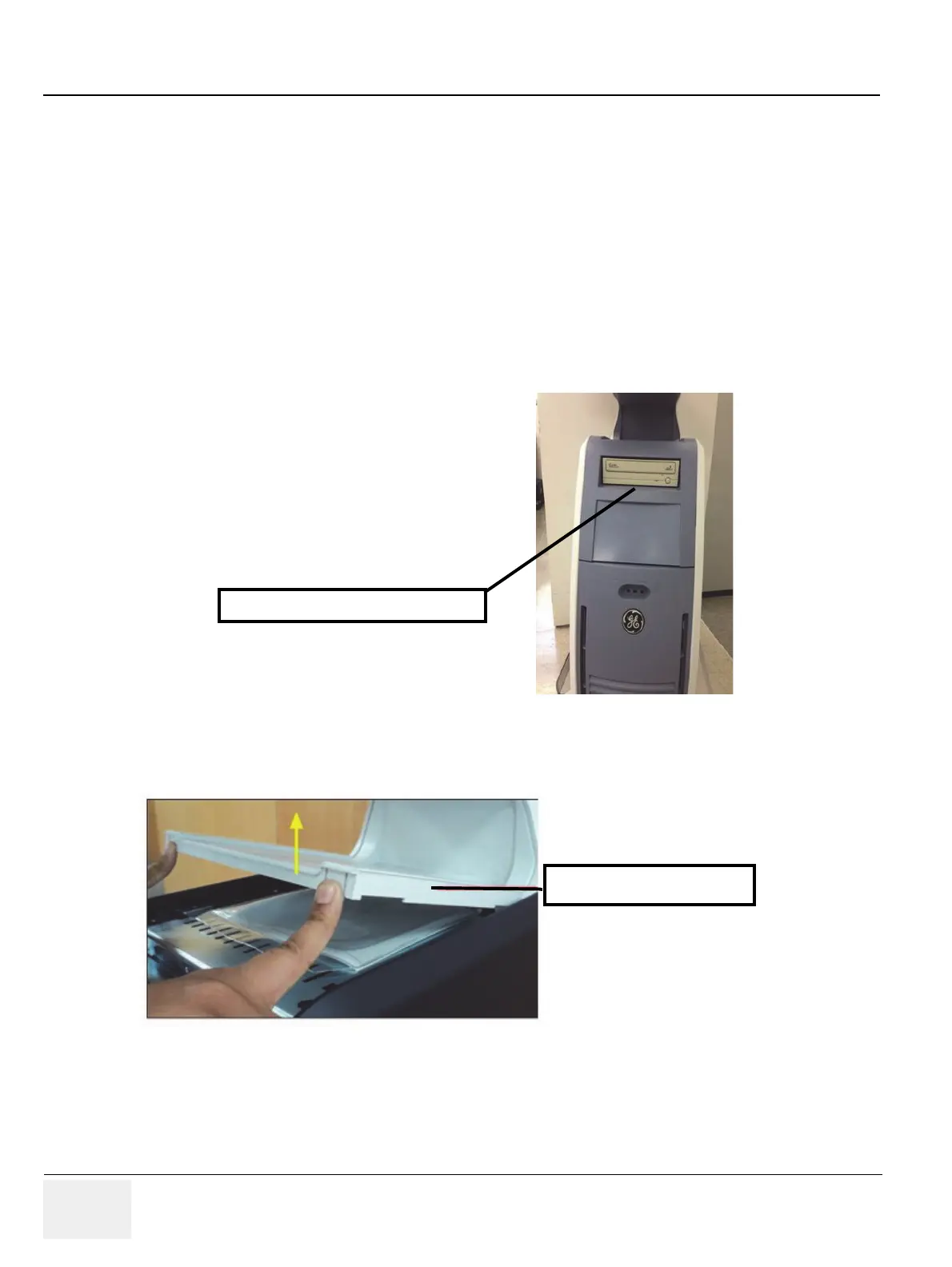

Figure 8-28 Removing the FRONT PRINTER BEZEL ASSY BT16

Figure 8-29 Removing theTOP CABINET COVER BT16

FRONT PRINTER BEZEL ASSY BT16

TOP CABINET COVER BT16
