GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-143

2.) Unscrew 4 screws to remove CSI board and Separate the LED connector.

8-47-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-38: Replacement of the CSI - Functional Tests..

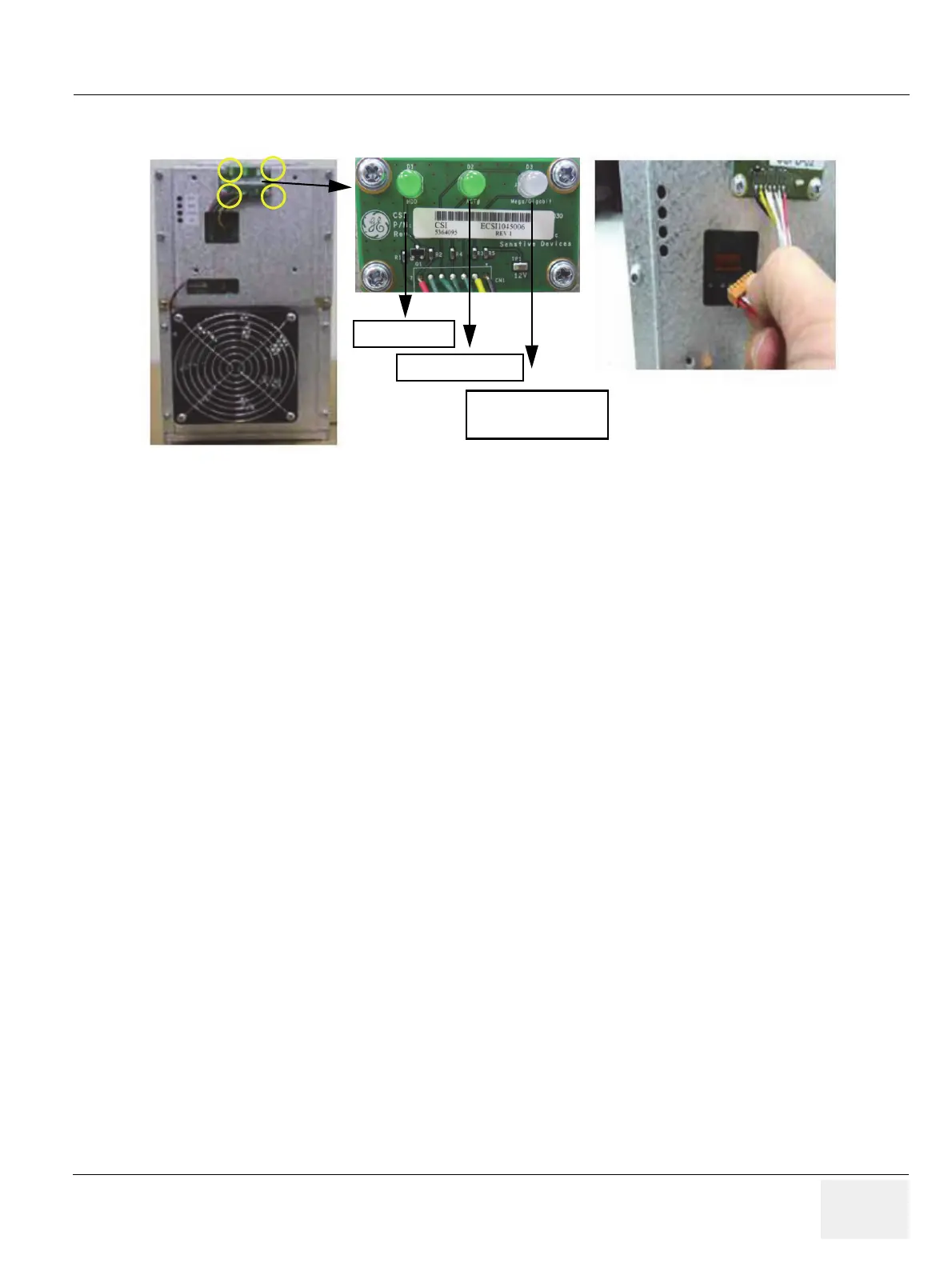

Figure 8-204 Seperating LED connector/FAN connector

HDD Status

Network Status

Network Speed

Orange: Megabit
