GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-109

5.) Unscrew 2 screws on trackball and disconnect the cable side of the trackball. Refer to the figures

below.

8-33-4 Installation Procedure

1.) Put the trackball guide ring. Refer to the figure below.

- If the trackball guide ring is installed already, please skip step 1).

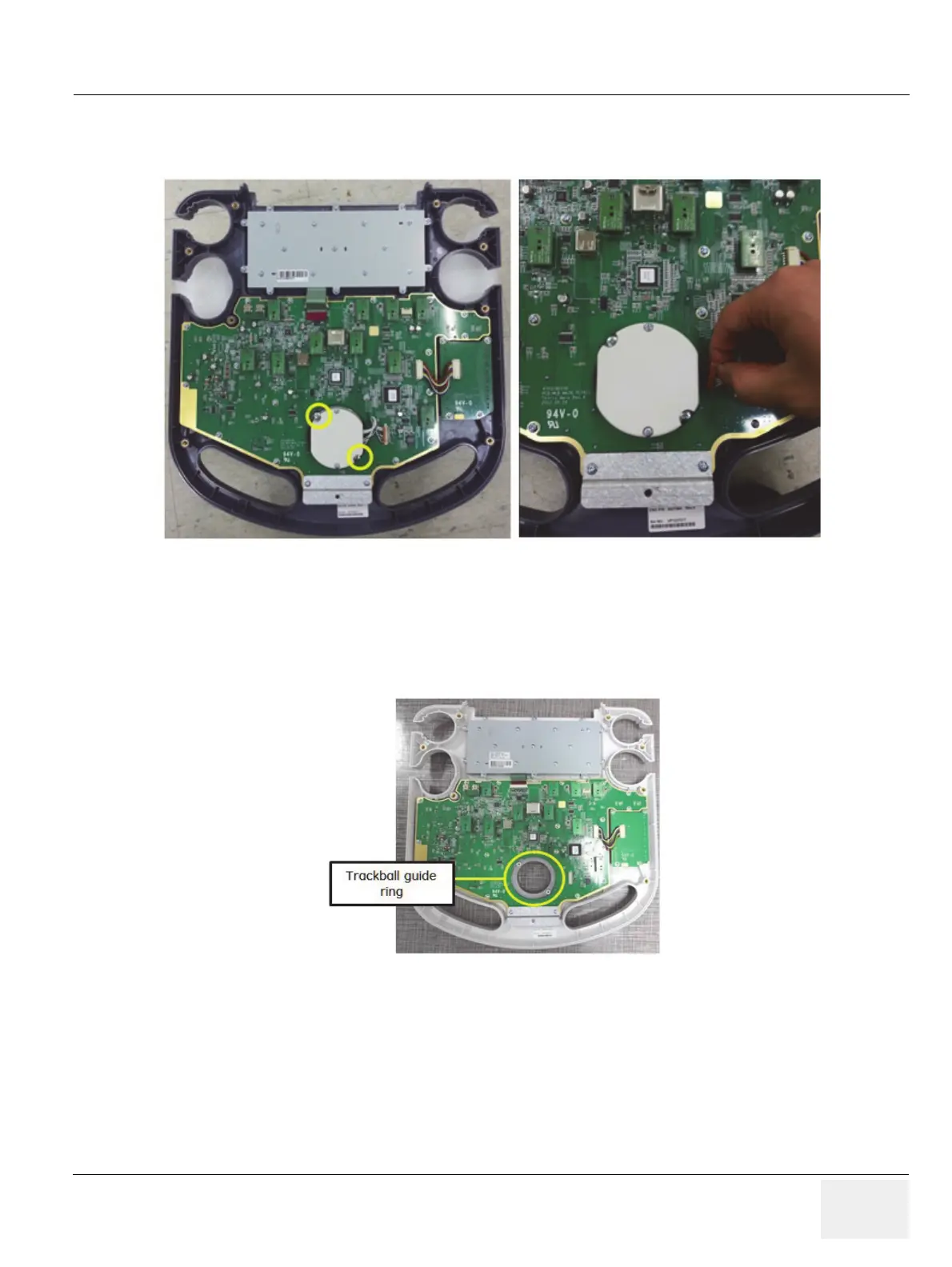

Figure 8-161 Unscrewing 2 screws on trackball

Figure 8-162 Installing the trackball guide ring
