GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

8-142 Section 8-47 - Replacement of the CSI

Section 8-47

Replacement of the CSI

8-47-1 Manpower

One person, 30 minutes

8-47-2 Tools

Philips screwdriver

8-47-3 Preparations

1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.

2.) Pull out the NEST as described in Section 8-28 "Replacement of the NEST" on page 8-93

8-47-4 Removal Procedure

1.) Unscrew 4 screws to remove the LED Indicator bracket.

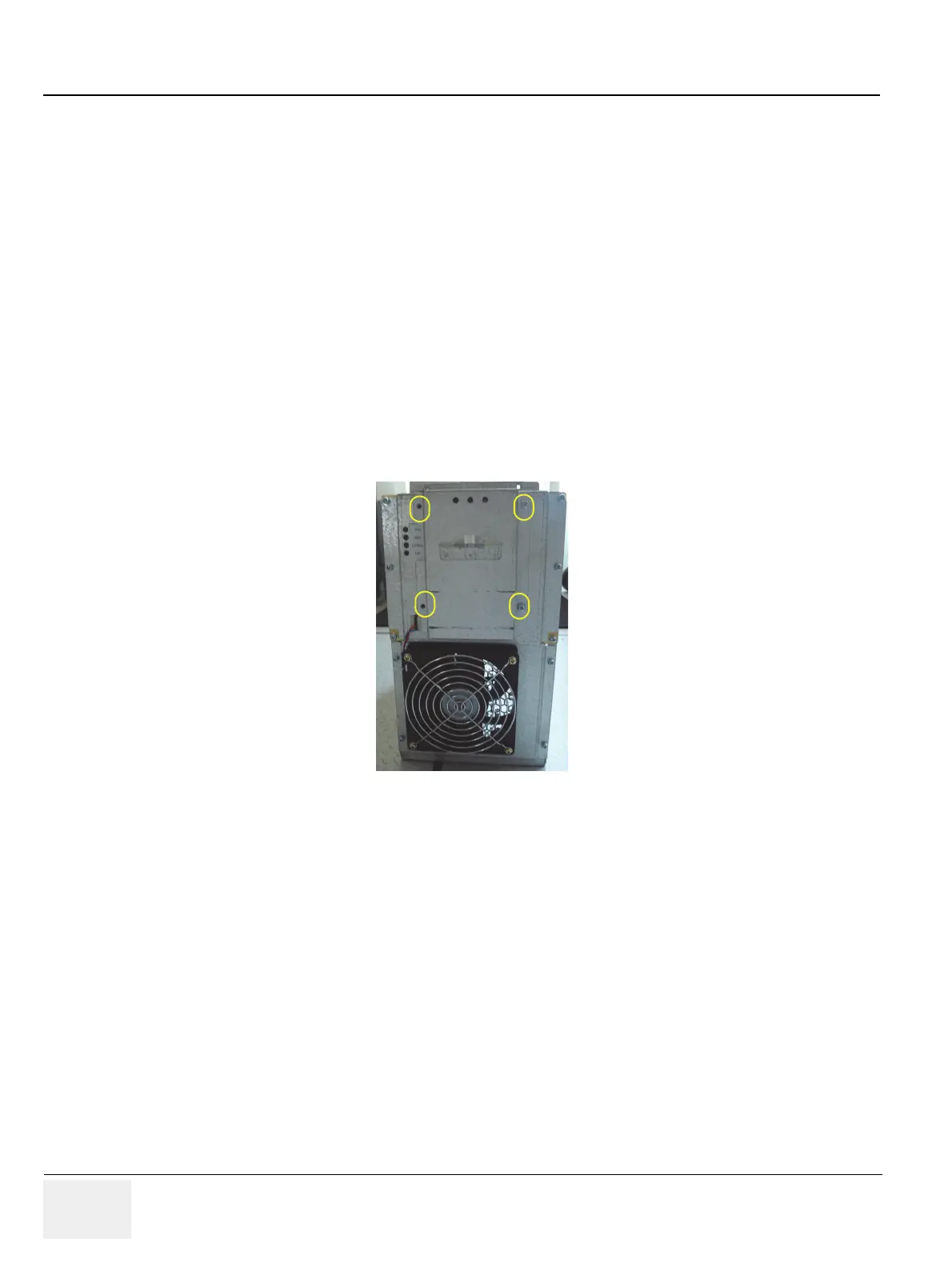

Figure 8-203 Opening the rear bracket
