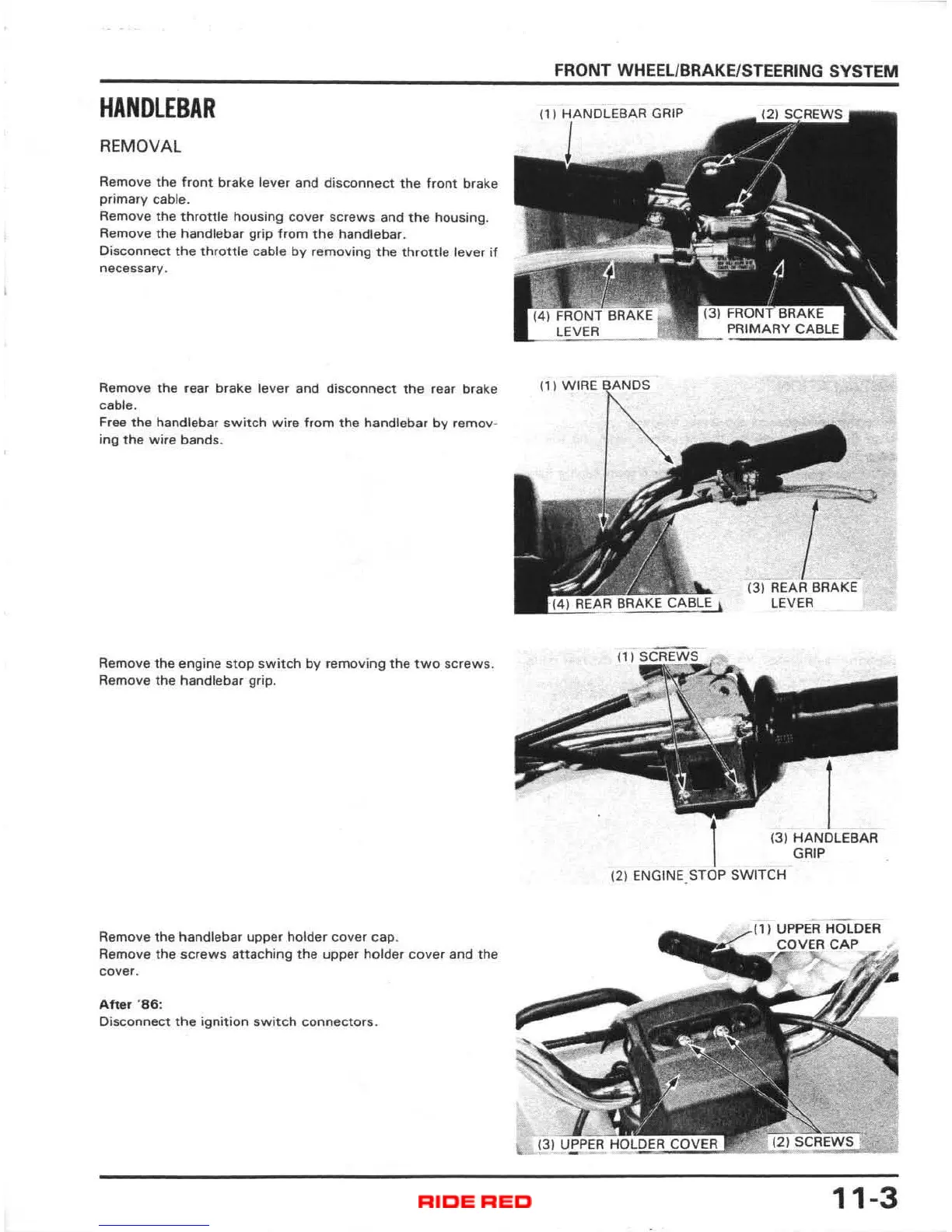

HANDLEBAR
REMOVAL
Remove the front brake lever and disconnect the front brake
primary cable.
Remove
the throttle housing cover screws and the housing.
Remove
the handlebar grip from the handlebar.
Disconnect the throttle cable by removing the throttl e levef if
necessary _
Remove the rear brake lever and disconnect the rear brake
ca ble .
Free the handlebar switch wi re from the handlebar by rem ov·
ing the wire bands.
Remove the engine stop sw it ch by removing the two screws.
Rem ove the handlebar grip.
Remove
the handlebar upper holder cover cap .
Remove
the screws attaching the upper holder cOver and th e
cover.
Aft er '86:
Disconnect the ignition switch connectors.
FRONT WHEEL/BRAKE/STEERING SYSTEM
(11 WIRE ~Ar'OS
(2) EN';)N' S
(3) HANDLEBAR
GR IP
11-3
