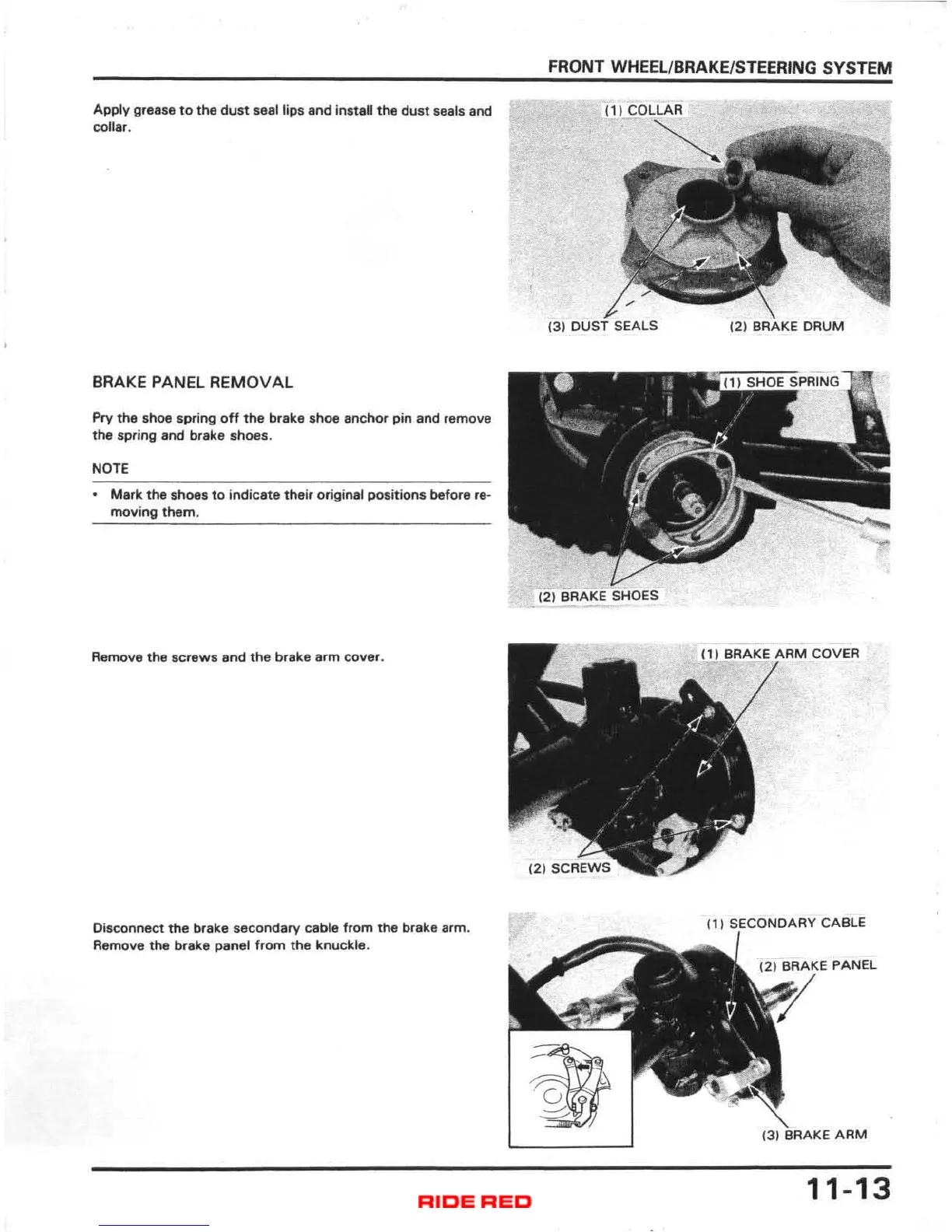

Apply
grease
to
the
dust
seat lips
and
install the
dust
s8als and
collar.
BRAKE PANEL REMOVAL
Pry
the
shoe spring
off
the
brake shoe
anchor
pin
and remove
the
spring end brake shoes.
NOTE
Mark
the
shoes
to
indicate
their
original
positions
before re-
moving
them
.
Remove
the
screws
and
the
brake arm cover.
Disconnect
the
brake
secondary
cable
from
the brake arm.
Remove
the
brake panel
from
the
knuckle
.
FRONT WHEEL/BRAKE/STEERING SYSTEM
13
1
SEALS
121
BR',"E
ORUM
(2~~SHOES
(11
BRAKE COVEA
SE(:mmA.RY
CABLE
PANEL
13
1
ARM
11-13
