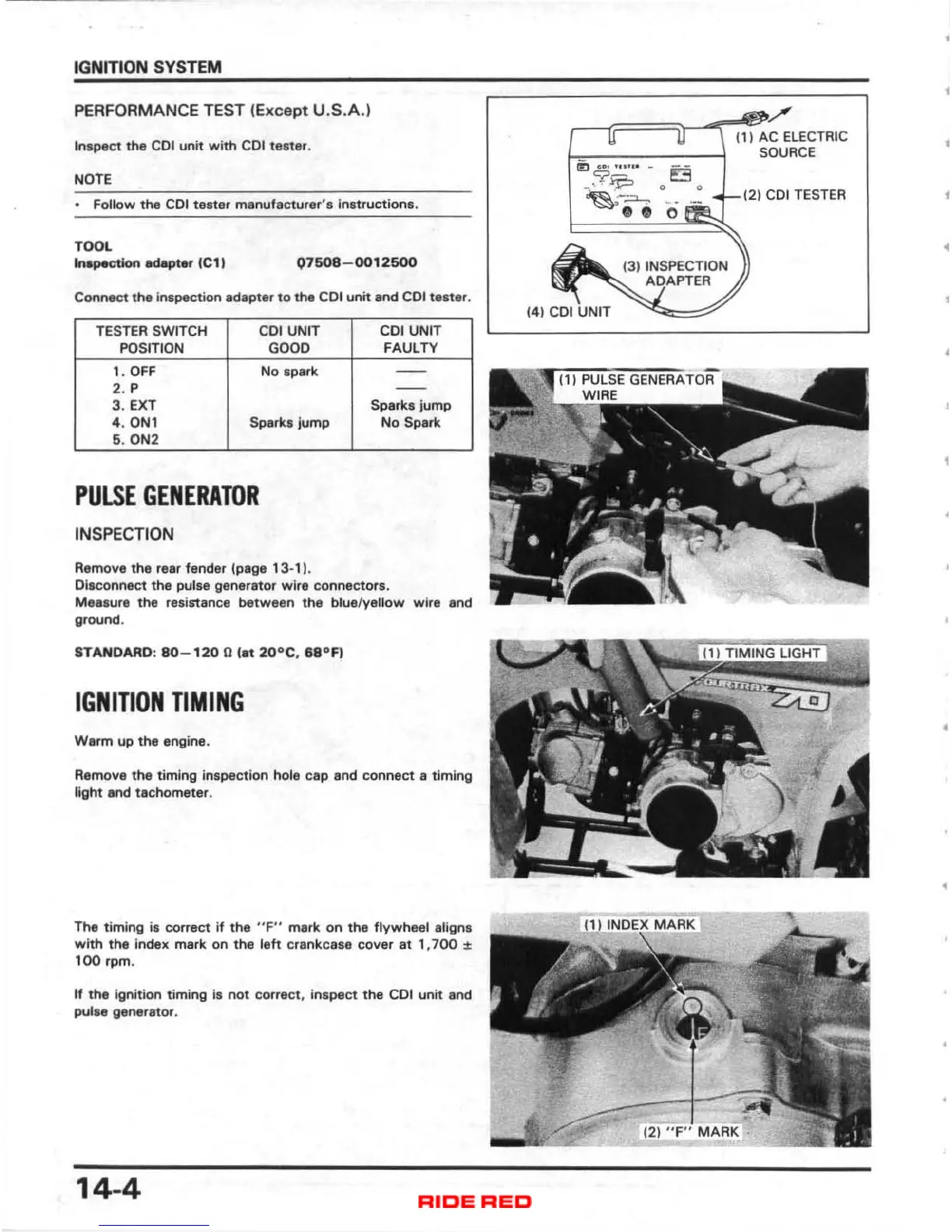

IGNITION SYSTEM
PERFORMANCE TEST (Except
U.S .A.l
Inspect the COl unit with COl tester .
NOTe
• Follow the COl tester manufacturer's Instructions.
TOOL
lnapection adapte, tell
07608 -00 12600
Connect the inspection adapter to the COl unit and COl tester .
TESTER SWITCH COl UNIT COl UNIT
POSITION GOOD FAULTY
1. OFF No spark
2. p
3. EXT
Sparks jump
4. 0Nl
Spark, jump No Spark
5. 0N2
PULSE GENERATOR
INSPECTION
Remove the rear fender (page 13 - 11 .
Disconnect the pulse generator wlr. connectors.
Me.suf. the resistance between the blue/yellow wire and
ground .
STANDARD: 80-120 0 (at 20
o
e, 88°FI
IGNITION TIMING
Warm up the engine.
Remove the timing inspection hole cap and connect 8 timing
l ight and tachometer.
The timing is correct if the " F" mark on the fl ywheel aligns
with the ]ndll)( mark on the left crankcase cover 8t 1,700 ±
100 rpm.
If the ignition timing is not correct , inspect the COl unit and
pulse generatOt.
14-4
,
r -rr= == =)r - ""\' -;;I1~)~A~;C::ElECTRIC
SOURCE
• ~_ (2) CO l TESTER
,
•
•
