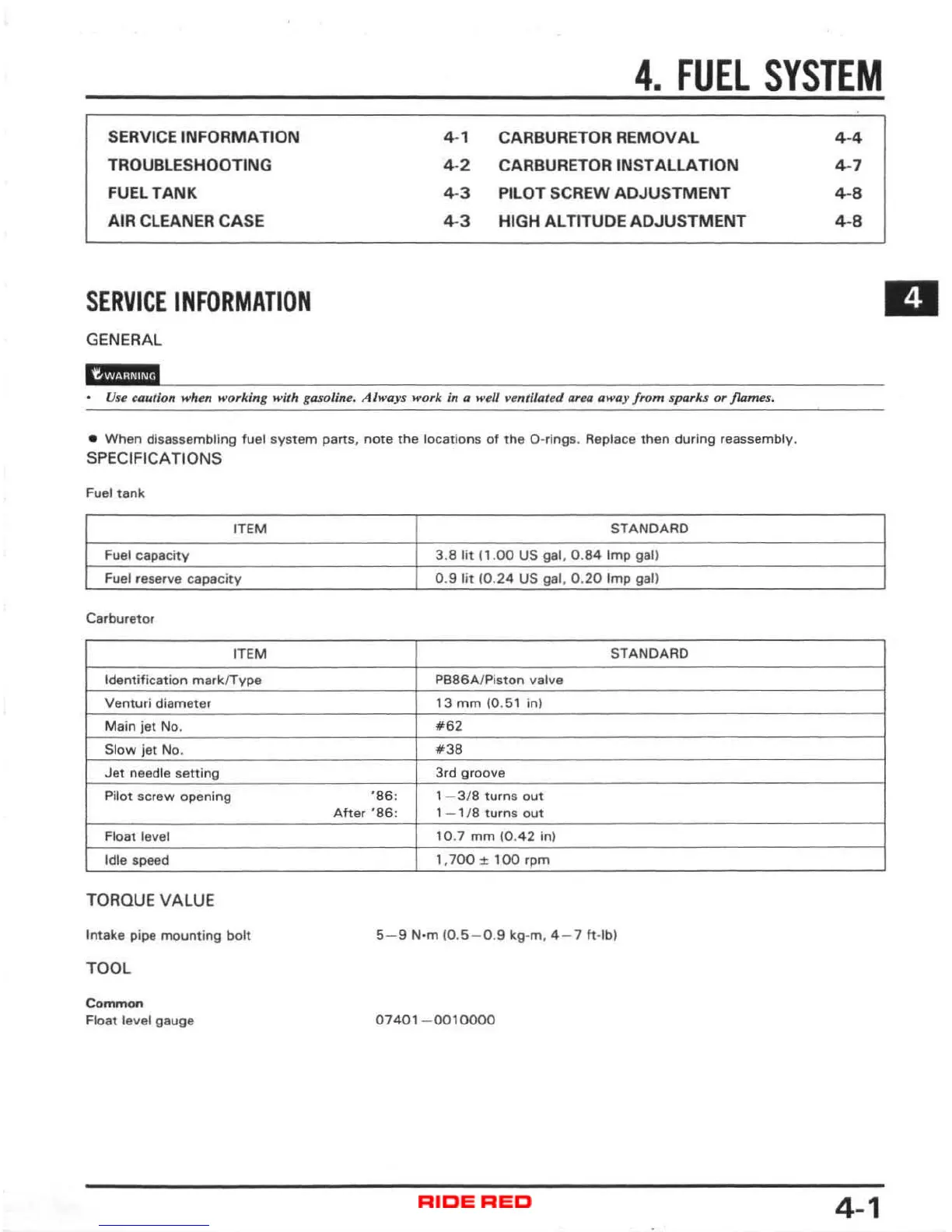

4. FUEL SYSTEM
SERVICE INFORMATION
TROUBLESHOOTING
FUEL TANK
AIR CLEANER CA SE
SERVICE INFORMATION
GENE RAL
4- 1
4-2
4-3
4-3
CARBURETOR REMOVAL
CARBUR
ET OR INSTALLATION
PI
LOT SCREW AOJUSTMENT
HIGH ALTITUD E ADJUSTMENT
Use caulion when working wilh gasoline. Always work In II wt llv entUatt d G rt Ul aMlII)' f rom sparks or flames .
• Wh en disassem bl ing fuel system parts, note the locat io ns of the D·r ings . R ep lace then during reass emb ly .
SP ECI FI CATIONS
Fuel tank
I TEM
STANDA RD
Fuel capa city 3.8 l it 11 . 00 US gal. 0.84 Imp gal)
Fuel r eSe r\l8 capacity 0 .9 l it (0 .24 US gal. 0. 20 I mp gal)
Carbur etor
I TE M
ST ANDARO
Identific at ion mar krType
PB86A /P iston valv8
Venturi diam eter
13 mm (0.5 1 in)
Main
jet No.
#62
Slow j et No.
#38
Jet n ee dle setti ng 3rd groo\l8
P ilot sc r ew opening
' 86 : , - 3/8 tu r ns o ut
Aher '86: 1 -, 18 turns o ut
Fl oat level
10 .7 mm (0. 42 in)
I dl e speed ',700 ± 100 rpm
TORQUE VALUE
Intake pi pe m ounting bo lt 5-9 N·m (0.5 - 0 .9 kg -m , 4 - 7 tt-lb)
TOOL
Com mon
F loat level gauge
0740 1- 00 1 0000
4-4
4- 7
4- B
4- B
4-1
