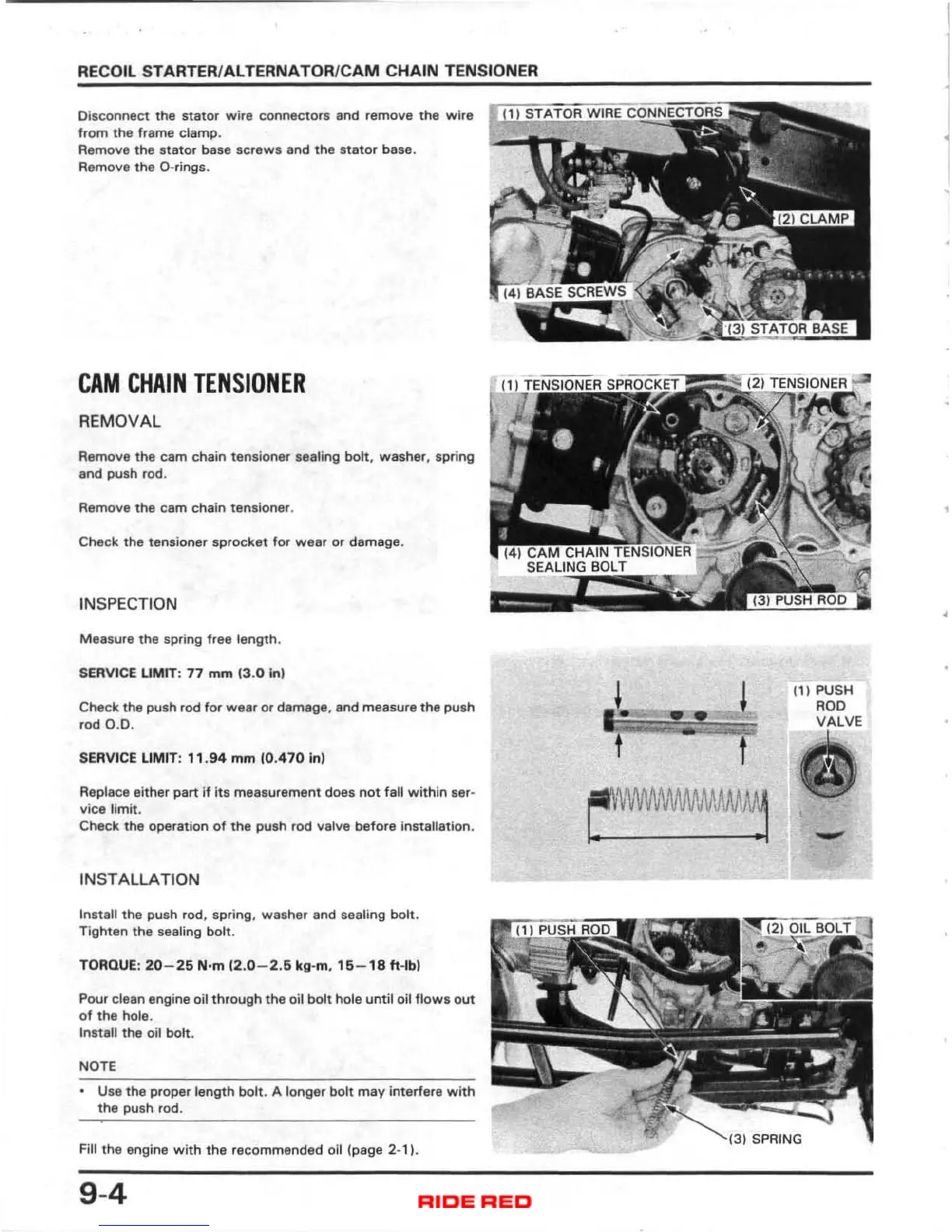

RECOIL STARTER/ALTERNATOR/ CAM CHAIN TENSIONER
Disconnect the stator wire connectors and remove the wire
from the frame clamp.
Remove the stator base screws and the stator base.
Remove the O-rings.
CAM CHAIN TENSIONER
REMO VAL
Remove the cam chain tens loner sealing bolt, washer. spring
and push rod.
Remove the cam cha in tensioner.
Check the tensioner sprocket for wear or damage.
INSPECTION
Measure the spring free length .
SERVICE LIMIT: 77 mm 13 .0 Inl
Check the push rod for wear Of damage. and measure the push
rod 0 .0 .
SERVICE LIMIT: 1' . 94 mm 10 . 470 In)
Replace either part if its measurement does not fell with in ser·
vice limit .
Check the operation of the push rod valve before installation,
INSTALLATION
Install the pu sh rod, spring, washer and sealing bo lt.
Tighten the sea ling bolt.
TORQUE: 20-25 N·m {2.0 -2 ,6 kg ·m. 16 - 18 ft · lbJ
Pour clean engine oil through the oil bolt hole until oil flows out
of the hole.
Install
the oil bolt .
NOTE
Use the proper length bolt , A longer bolt m ay interfere with
the push rod,
o
Fill the engine with the recommended oil (page 2· 1).
9-4
1
•
l
~
111 PUSH
•
ROO
t
t
~ YV¥MWMWNJ j
-
