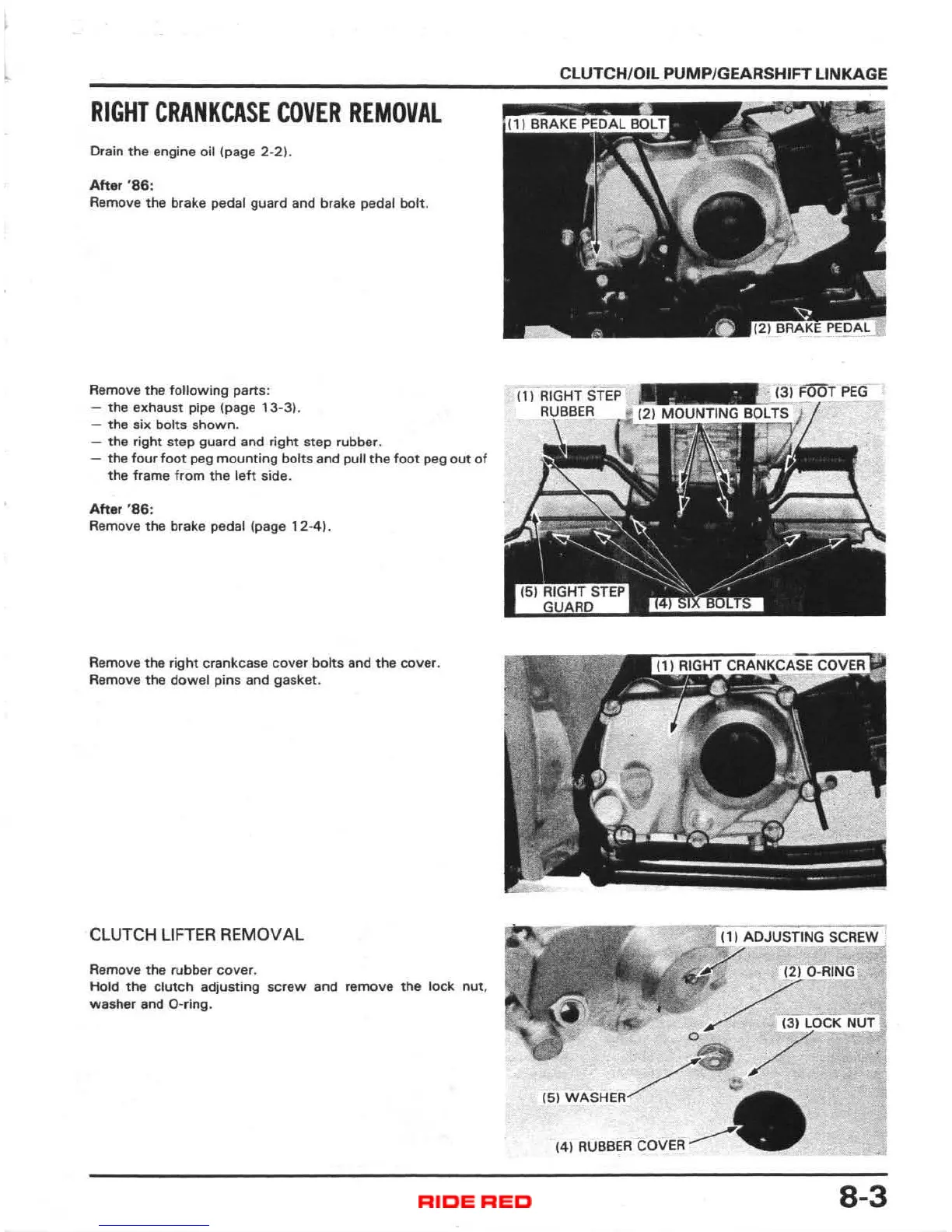

RIGHT CRANKCASE COVER REMOVAL
Drain the engine oil (page 2·2).
Afte, '8 6:
Remove the brake pedal guard and brake pedal bolt .
Remove
the following parts:
-
the exhaust pipe (page 13 - 31.
- the six bolts shown .
-
the right step guard and r ight step rubber.
-
the fou r foot peg mounting bolts and pull the foot peg Qut of
the frame from the left side.
A ft er '86:
R emove the brake pedal (page 12 - 41.
Remove the r ight crankcase cover bolts and the cove r.
Remove
the dowe l pins and gasket .
CLUTCH LIFTER REM OVA L
Remove the rubber cover .
H
old the clutch adju sti ng screw and r emove the lock nut,
was her and D-ring.
CLUTCH/OIL PUMP/GEARSHIFT LINKAGE
SC RE W
(2) C- RI NG
(4) RUBBER COVER
8-3
