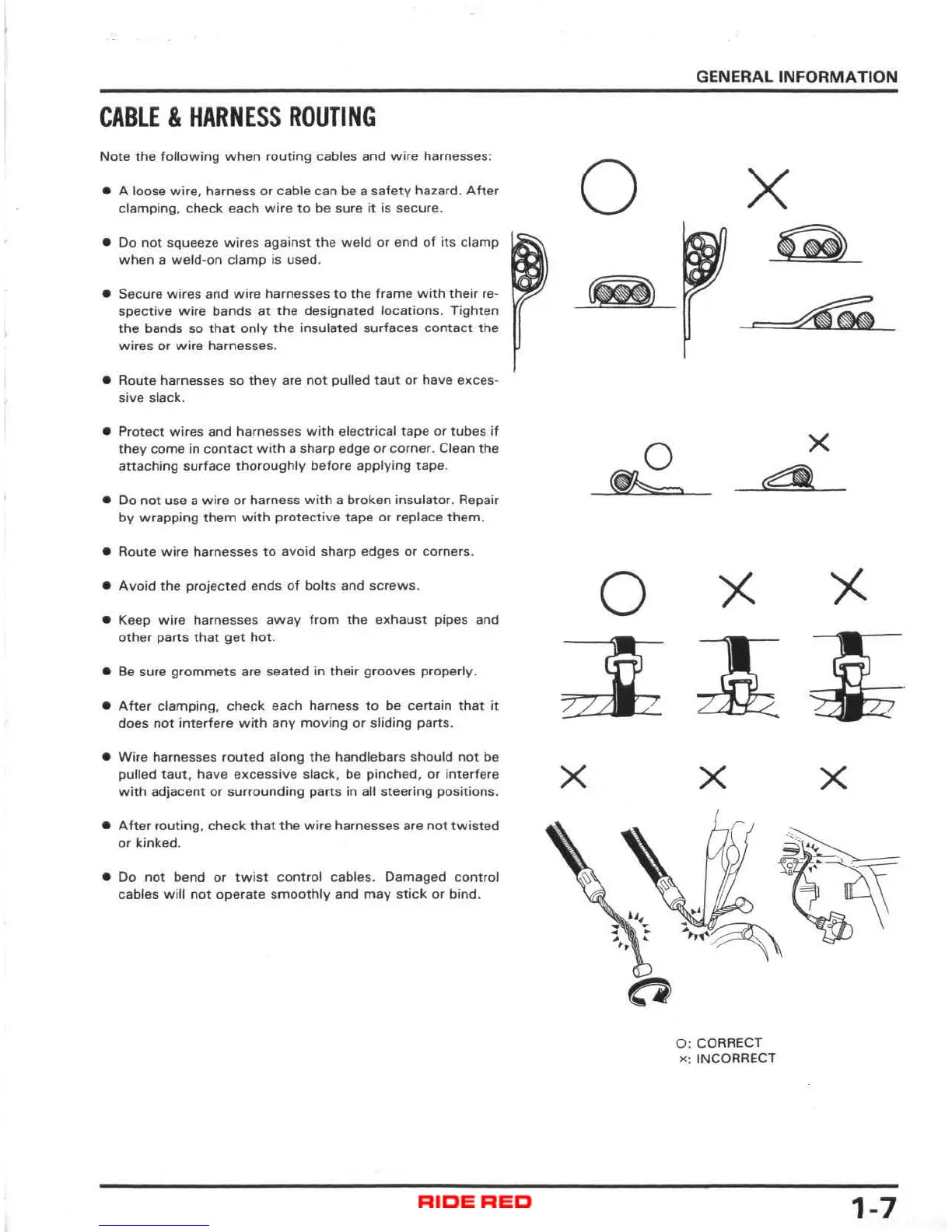

CABLE & HARNESS ROUTING
Note the foHowing when routing cables and wire harnesses:
• A loose wi re, harness or cable can be a saf ety hazard. Aher
clamping, check each wire to be sure it is secure.
• Do not squeeze wires against the weld or end of its clamp
when a we ld-on clamp is used.
• Secure wires and wire harnesses to the frame with their re-
spective wire bands at the designated locations. Tighten
the bands so that only the insulated surfaces contact the
wires or wire harnesses.
• Aoute harnesses so they are not pulled taut or have eJ:ces-
sive slack.
• Protect wir es and harnesses with el ectrical tape or tubes if
they come in contact with a sharp edge or corner. Clean the
attaching surface thoroughly b efo re applying tape.
• 00 not use a wi re or harness with a broken insulator . Repair
by wrapping them with pr otective tape or replace them.
• Route wire harnesses to avoid sharp edges or corners.
• Avoid the projected ends of bolts and screws.
• Keep wi re harnesses away from the exhaust pipes and
ot her parts that get hot.
• Be sure grommets are seated in their grooves pr operly.
• Afte r clamping, check each harness to be certain that it
does not interfere with any moving or sliding parts .
• Wire harnesses routed along the handlebars should not be
pulled taut , have excessive slack, be pinched, or interfere
with adjacent or surrounding parts in all steering positions.
• Afte r routing, check that the wire harnesses are not twisted
or kinked .
• Do not bend or twist control cables. Damaged control
cables will not operate smoothly and may stick or bind .
o
x
GENERAL INFORMATION
x
X
Q
x
0: CORRECT
x; INCORRECT
1-7
