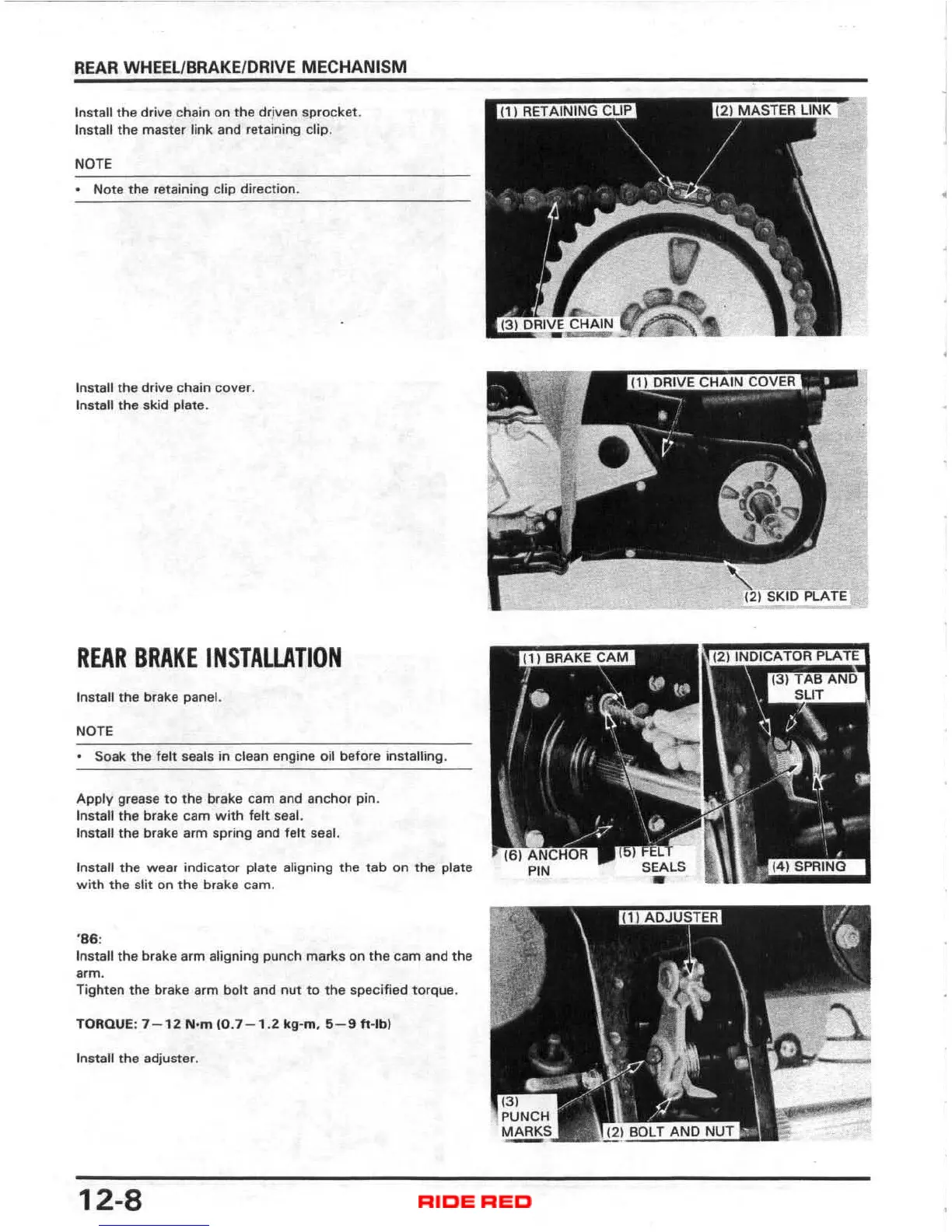

REAR WHEEL/BRAKE/DRIVE MECHANISM
Install the drive chain on the drjven sprocket.
Install the master link and retaining clip .
NOTE
• Note the retaining clip direction.
Install the drive chain cove r.
Instel! the skid plate.
REAR BRAKE INSTALLATION
Install the brake panel.
NOTE
• Soak the felt seals in clean engine oil before in sta lling.
ApplV
grease to the brake cam and anchor pin.
Install the brake cam with felt seal.
Install
the brake arm spring and felt seal.
Install
the wear indi cator plate aligning the tab on the plate
with the slit on the brake cam .
' 86 :
Install the brake arm aligning punch ma rks on the cam and the
arm.
Tighten the brake arm bolt and nut to the specified torque.
TORQUE : 7- 12 N·m 10 . 7-1 .2 kg - m. 5-9 h · lbl
Install the adjuster.
12-8
