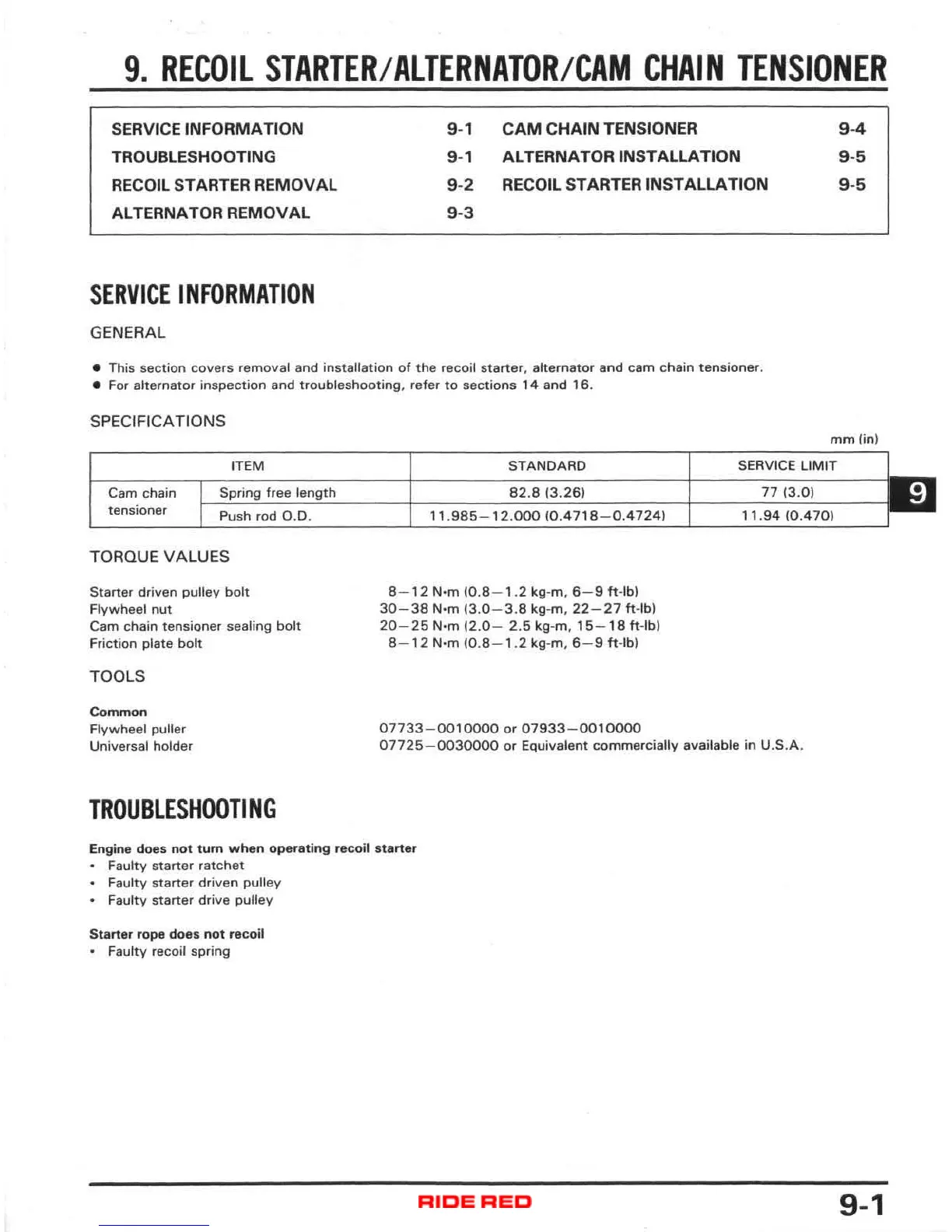

9. RECOIL STARTER/ALTERNATOR/CAM CHAIN TENSIONER
SERVICE INFORMATION
TROUBLESHOOTING
RE COIL STARTER REMOV AL
ALTERNATOR REMOVAL
SERVICE INFORMATION
GENE RAL
9-1
9-1
9 -2
9-3
CAM CHAIN TENSIONER
ALTERNATOR
INSTALLAT ION
RECOIL
STARTER INSTALLA TION
• This section covers removal and installation of the recoil staner, alternator and cam chain tensioner.
• For alternator inspection and troubleshooting, refer to sections' 4 and 16.
SP ECIFI CAT IONS
9-4
9-5
9
-5
mm!in)
ITEM STANDARD
SERVI CE LIMIT
Cam chain
tensioner
TORQUE VAL U ES
Starter driven pulley bolt
Flywheel nut
Cam chain tensioner sealing bolt
Friction plate bolt
TOOLS
Common
Flywheel puller
Universal holder
TROUBLESHOOTI NG
8 - 12 N·m (0.8 - 1.2 kg - m, 6 - 9 ft-Ib)
30 - 38 N'm 13.0 - 3 .B kg - m, 22 - 27 ft -Ib)
20 - 25 N'm (2.0 - 2 .5 kg-m , 15 - 18 ft- Ib)
8- 12 N·m (0,8 - 1.2 kg-m, 6 - 9 ft -Ib)
07733 - 0010000 or 07933 - 00 1 0000
07725 - 0030000 or Equival ent commercially avai l ab le in U.S.A.
Engine d oes no l turn w hen ope r ati ng recoil starte r
Faulty starter ratchet
• Faulty starter driven pulley
• Faulty
starter drive pulley
Sta rter rope do es not recoil
• Faulty recoil
spring
9-1
