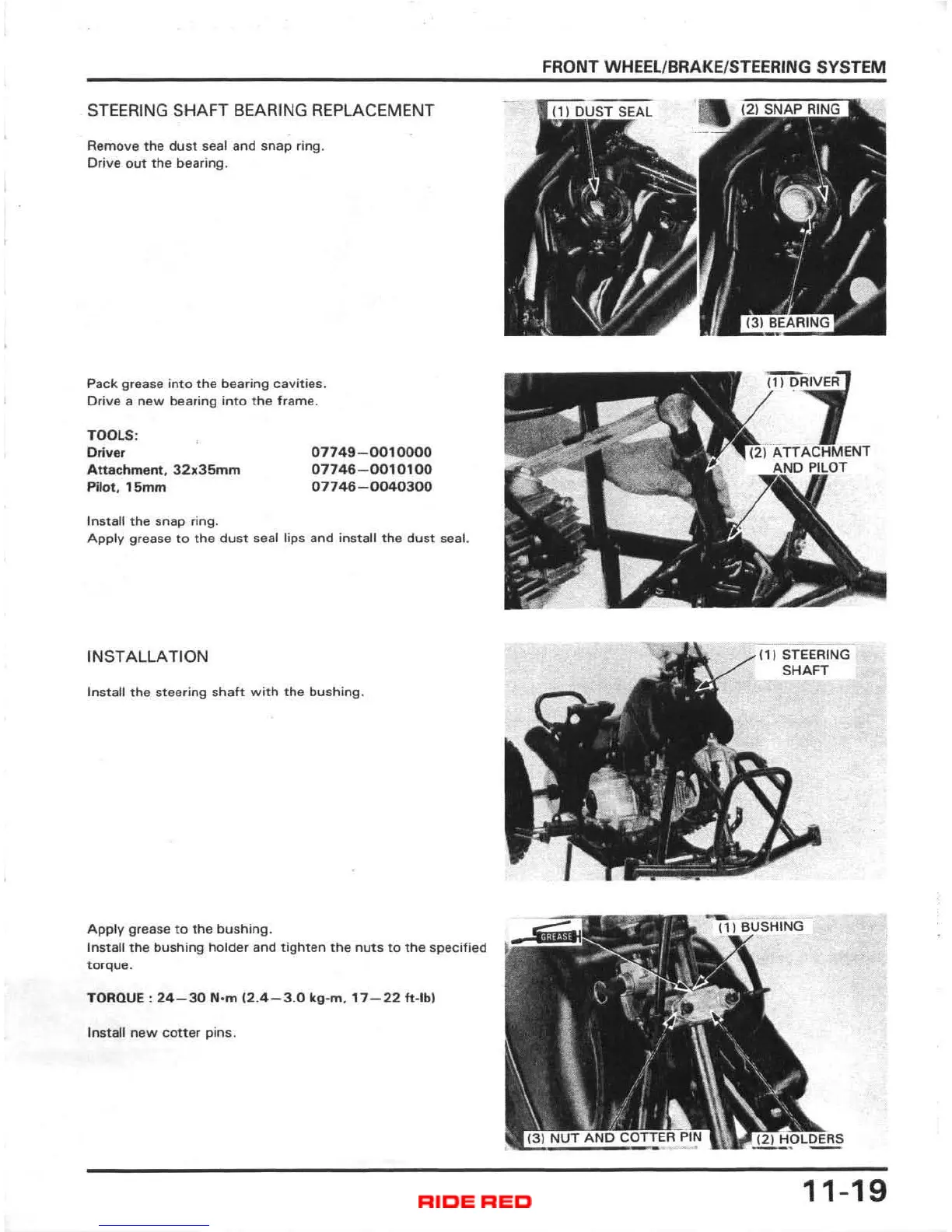

STEERING SHAFT BEARING REPLACEMENT
Remove the dust seal and snap ring.
Drive
out the bearing.
Pack grease
inta the bearing cavities.
Drive a
new bearing into the frame.
TOOLS;
Driver
Atta c hment , 32x35mm
Pilot, 15mm
Install the snap ring.
07749 - 0010000
07746-0010100
07746-0040300
ApplV grease to the dust seal lips and install the dust seal.
INS TA LLATION
Install the steering shaft with the bushing.
App ly grease to the bushing.
Install the bushing holder and tighten the nuts to the specified
torque.
TORQUE : 24-30 N ·m 12.4 -3. 0 kg-m. 17 -22 ft·lbl
Install new cotte r pins.
FRONT WHEEL/BRAKE/STEERING SYSTEM
11-19
