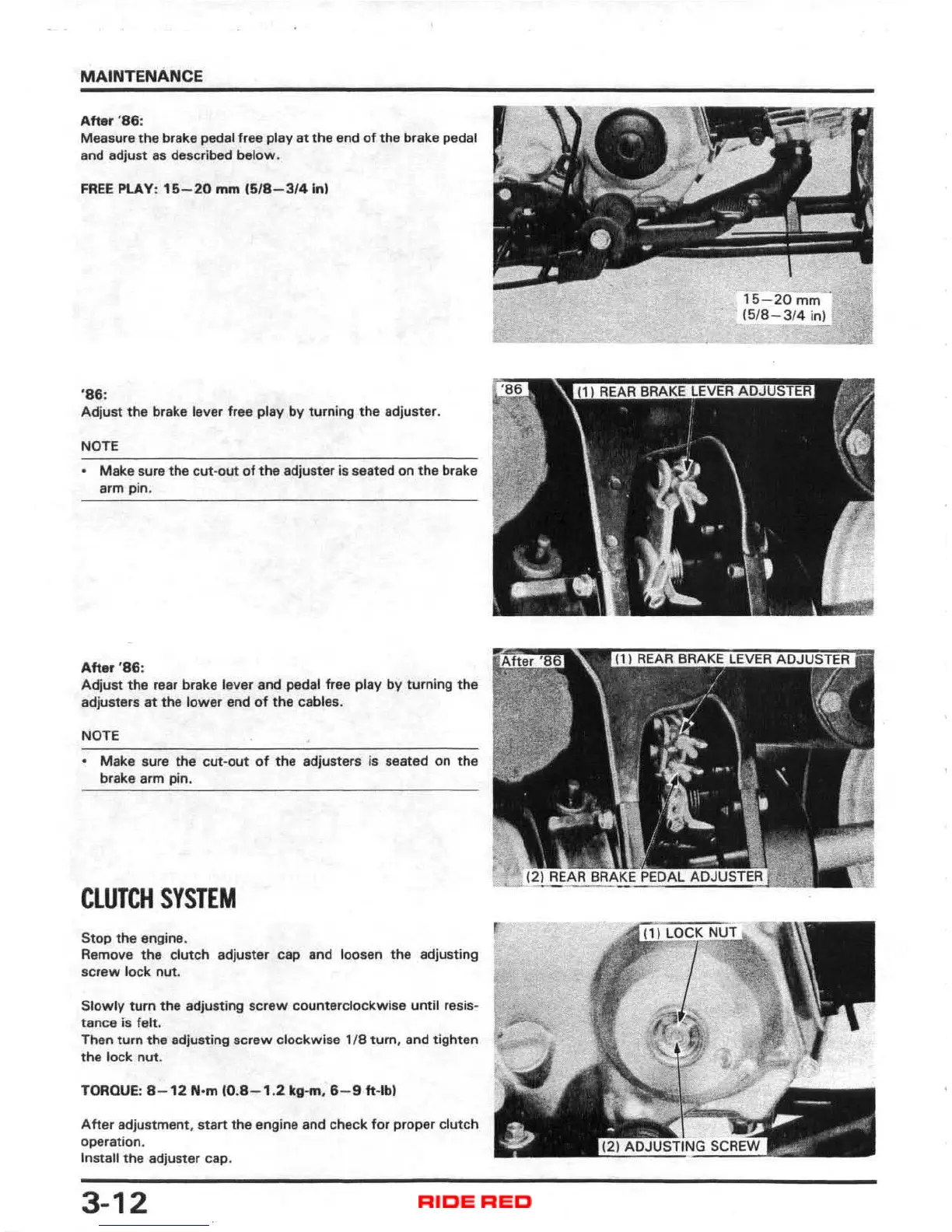

MAINTENANCE
After'S6 :
Measure the brake pedal free play at the end of the brake pedal
end adju
st 8S described below .
FREE PLAY: 15-20 mm 15 /8-3/4 In)
'S6:
Adjust the brake lever free play by turning the adjuster .
NOTE
Make sure the c ut -o ut of the adjuster is seated on the brake
arm pin.
Afte, '86:
Adjust the rear brake lever and pedal free play by turning the
adjusters at the lower end of the cables.
NOTE
Make sure the cut-out of the adjusters is seated on the
brake arm pin.
CLUTCH SYSTEM
Stop the engine.
Aemove the clutch adjuster cap and loesen the adjusting
screw lock nut.
Sl owly turn the adjusting screw counterclo ckwise until resis-
tance is felt.
Then turn the adjusting screw clockwise 1/8 turn , and tighten
the lock nut .
TORQUE: 8-12 N·m 10 . 8-1 .2 k8-m. 6-9 ft - Ibl
After adjustment. start the engine and check for proper clutch
operation.
In stall the adjuster cap.
3-12
