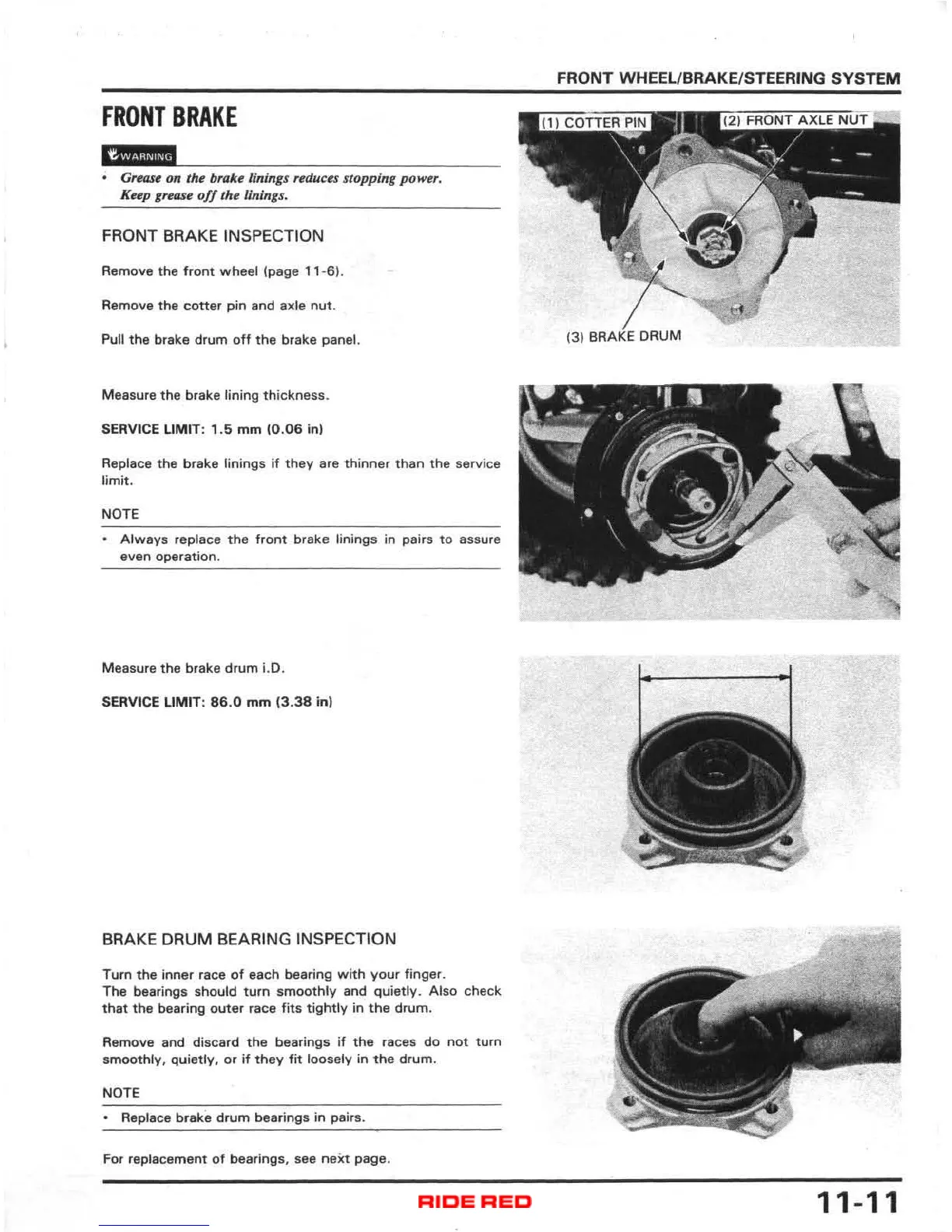

FRONT BRAKE
lid
GretlSe on th e brab linings reduces slopping power.
Keep grease
off the linings.
FRONT BRAKE INSPECTION
Remove the front whee l (page 11 ·6 ).
Remove the cotter pin and axle nut .
Pull the brake drum off the brake panel.
Measure the brake lining thickness .
SERVICE LIMIT: 1.5 rnm (0 . 06 inl
Replace the br ake linings if they are thinner than the service
limit.
NOTE
Always replace the front brake linings in pairs 10 assure
even operation.
Measure the brake drum i.D.
SERVICE LIMIT: 86 .0 mm (3 . 38 in)
BRAKE DRUM BEARING INSPECTION
Turn the inner fsce of each bearing with your finger.
The bearings should turn smoothly and quietly . Also check
that the bear ing oute r ra ce fits tightly in the drum.
Rem ove and discard the bearings if the races do not tu rn
smoot hly, qu iet ly, or if they fit l oosely in t he drum.
NOTE
• Replace brake drum bearings in pairs.
For
replacement of bearin gs , see next page.
FRONT WHEEL/BRAKE/STEERING SYSTEM
t3t BR""E DRUM
11-11
