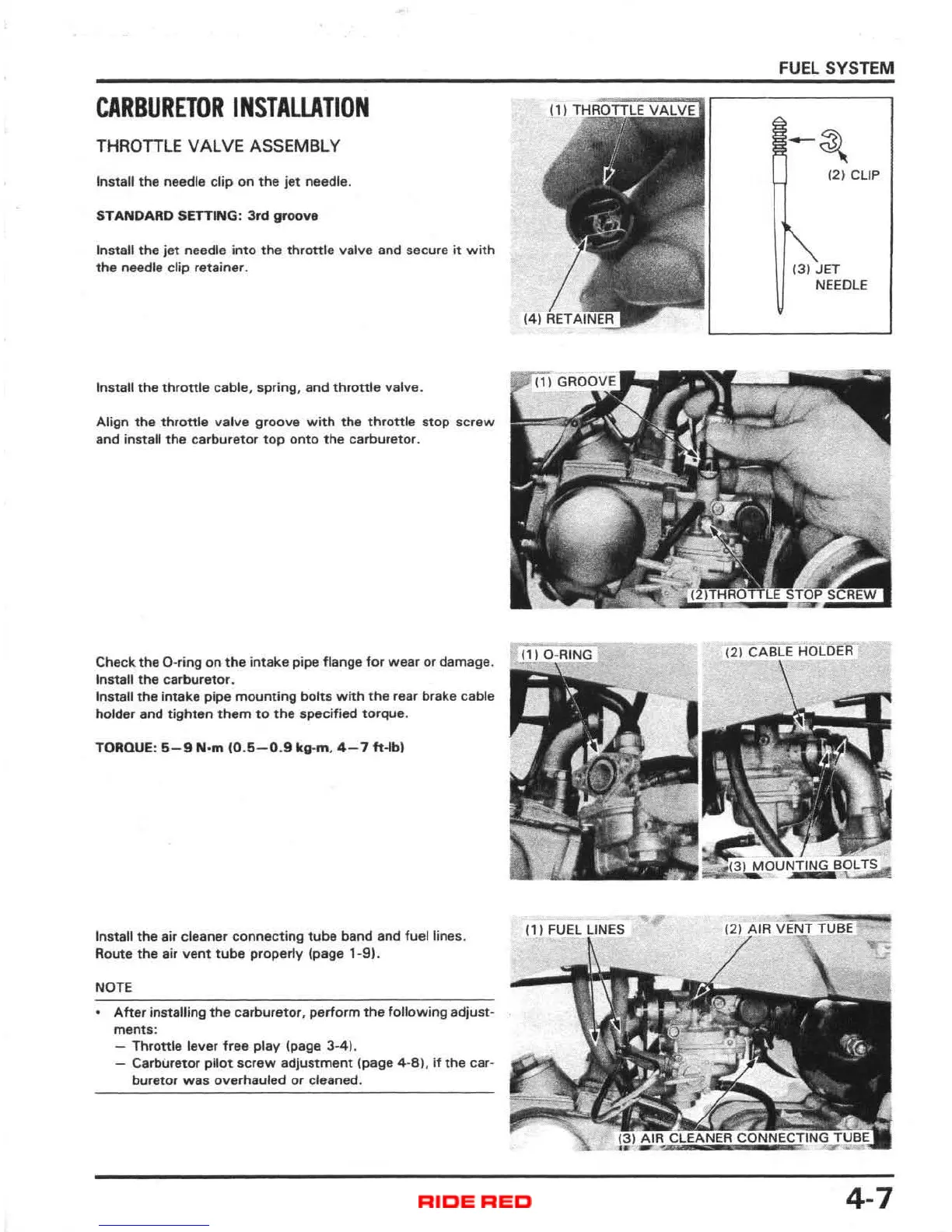

CARBURETOR INSTALLATION
THROTIlE VALVE ASSEMBLY
Install the needle clip on the jet needle.
STANDARD SETTING: 3rd 9rooYe
Install the jet needle into the throttle valve and secure it with
the needle c lip retainer.
Install the throttle cable, spring, and throttle valve.
Align the throttle valve groove with the throttle stop screw
and install the ca rburet or top onto the carburetor.
Check the O' ring on the intake pipe flange for wear or damage.
Install the carburetor .
Install the intake pipe mounting bolts with the tear brake cable
holder
and tighten them to the specified torque .
TORQUE: 5-9 N·m 10 . 6-0.9 kg-m. 4-7 ft-Ibl
Install the air cleaner connecting tube band and fuel lines.
Route
the air \lent tube properly (page 1 - 91 .
NOTE
After installing the carburetor. perform the following adjust-
ments :
-
Throttle lever free plav (page 3-41-
- Carburetor pUot screw adjustment (page 4- 81. if the car-
buretor
wes overhauled or cleaned_
(4) R"'-'"
FUEL SYSTEM
(2) CUP
(3) JET
NEEDLE
4-7
