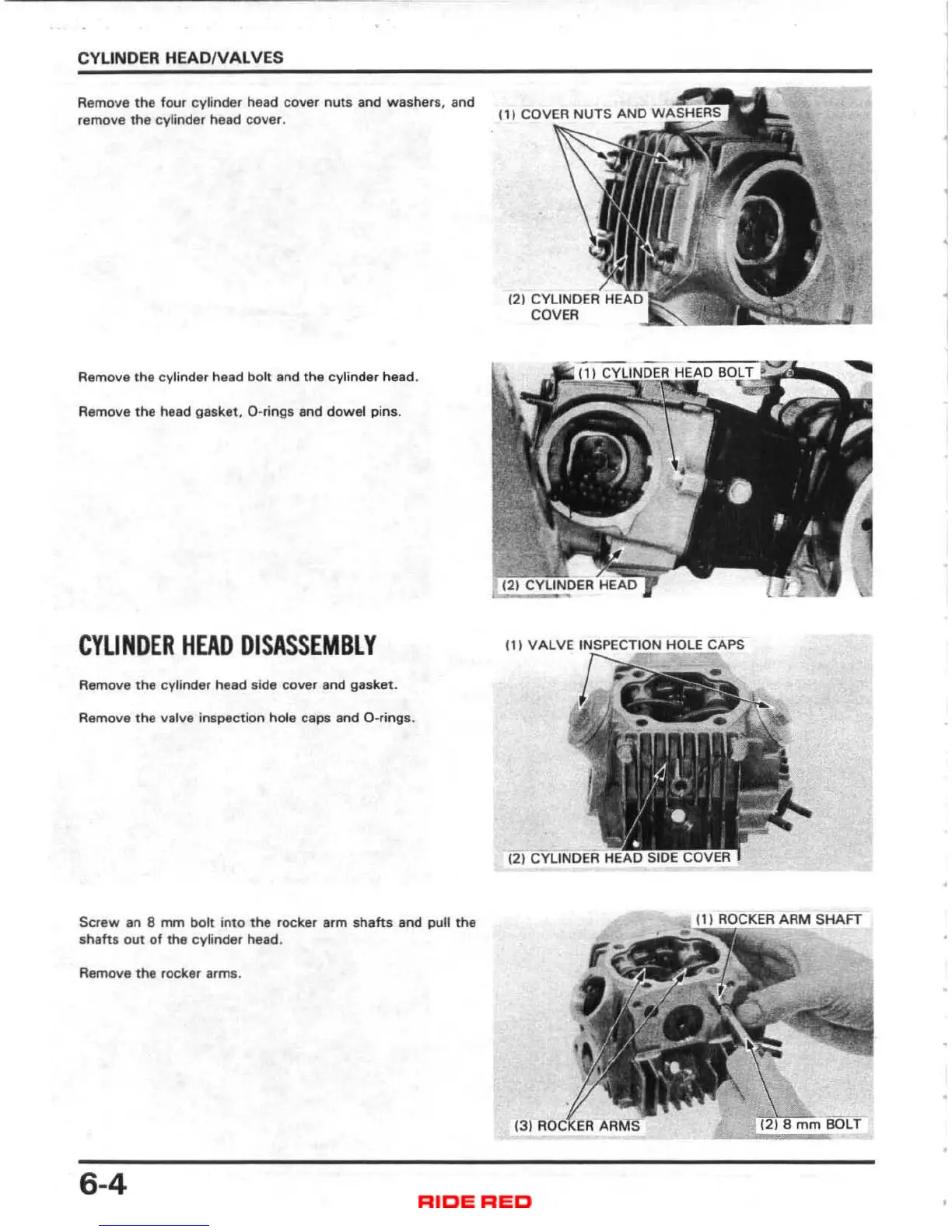

CYLINDER HEADIVAl VES
Remove the four cylinder head cover nuts and washers. and
remove
the cy linder head cover.
Remove
the cylinder head bolt and the cy linder head.
Remove the head gasket. O-rings and dowel pins.
CYLINDER HEAD DISASSEMBLY
Remove the cylinder head side cover and gasket.
Remove the valve inspection hole caps and O-rings.
Screw an 8 mm bolt into the rocker arm shafts and pull the
shafts out of the cylinder head.
Remove the rocker arms.
6-4
(2) CYl.INOI;A HEAD
COVER
(1) VALVE '" ~:C:T~1."~IL ;;;!i. AI
(2) CYl.INO'," Hi
. ~ ~:.:i~ ~ ':' A ~ AM SHAFT
(3) AOC:f<EA
1
I
1
