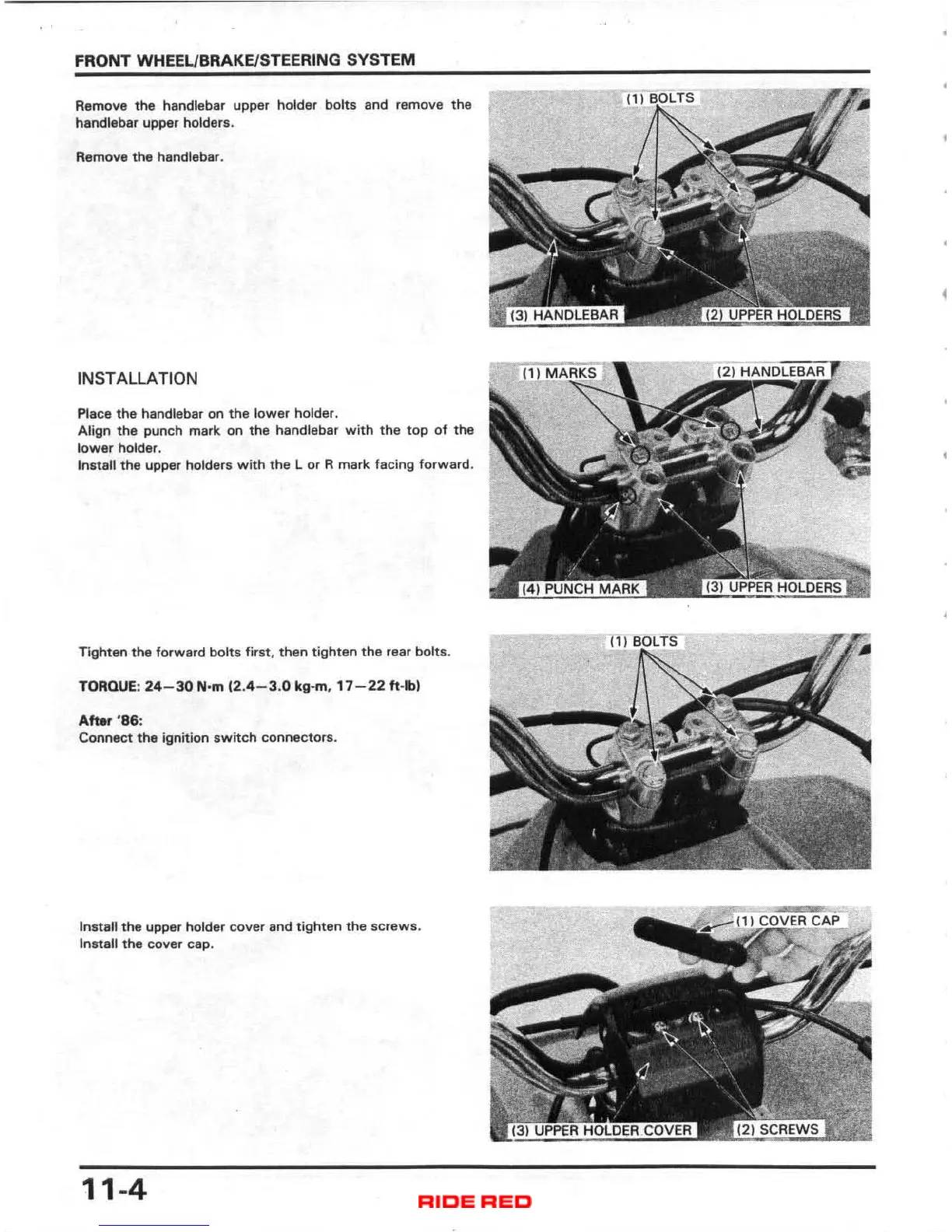

FRONT WHEEUBRAKEISTEERING SYSTEM
Remove the handlebar upper holder bolts and remove the
handlebar upper holders.
Remove the handlebar.
INSTALLATION
Place the handlebar on the lo we r holder.
Align the punch mark on the handlebar with the top of the
lower holder.
Install the upper holders with the L or R mark facing forward.
Tighten the forward bolt s first, then tighten the rear bolts.
TORQUE: 24-30 N.m 12 . 4-3.0 kg-m. 17-22 ft - Ibl
Aft., '86:
Connect the ignition switch connectors.
Install the upper holder cover and tighten the screws.
Install the cover cap.
11-4
•
•
•
•
