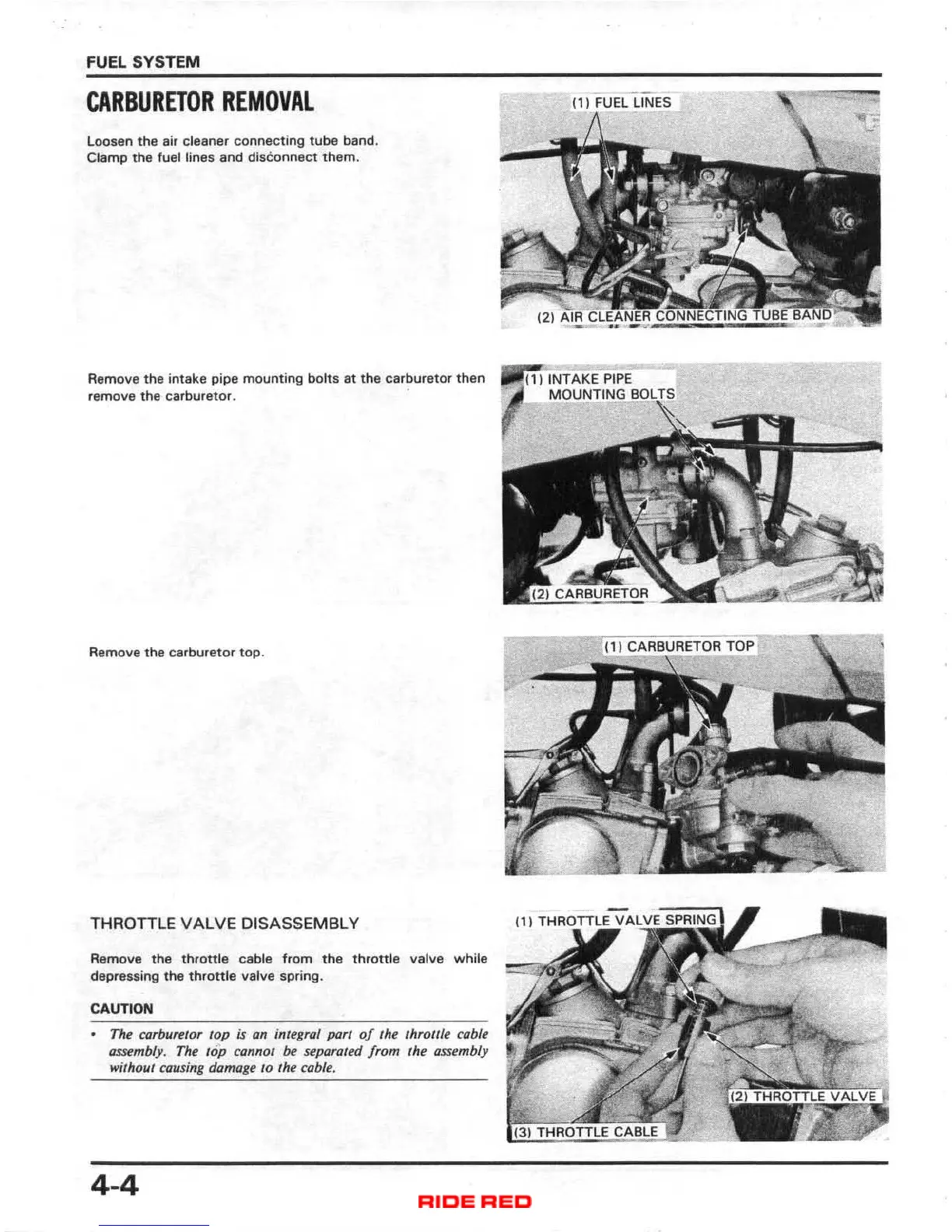

FUEL SYSTEM
CARBURETOR
REMOVAL
Loosen the air cleaner connecting tube band.
Clamp
the
fuel lines and
disconnect
them
.
Remove
the
intake pipe mounting bolts
at
the
carburetor
then
remove
the
carburetor
.
Remove
the
carburetor
top
.
THROTTLE
VALVE
OISASSEMBL Y
Remove
the
throttle
cable
from
the
throttle
valve
while
depressing
the
throttle
valve spring.
CAUTION
The carburetor top is
an
integral parI
0/
the throttle cable
assembly. The ufp cannot be separated
from
the Qssembly
wilhoul causing damage to the cab/e.
