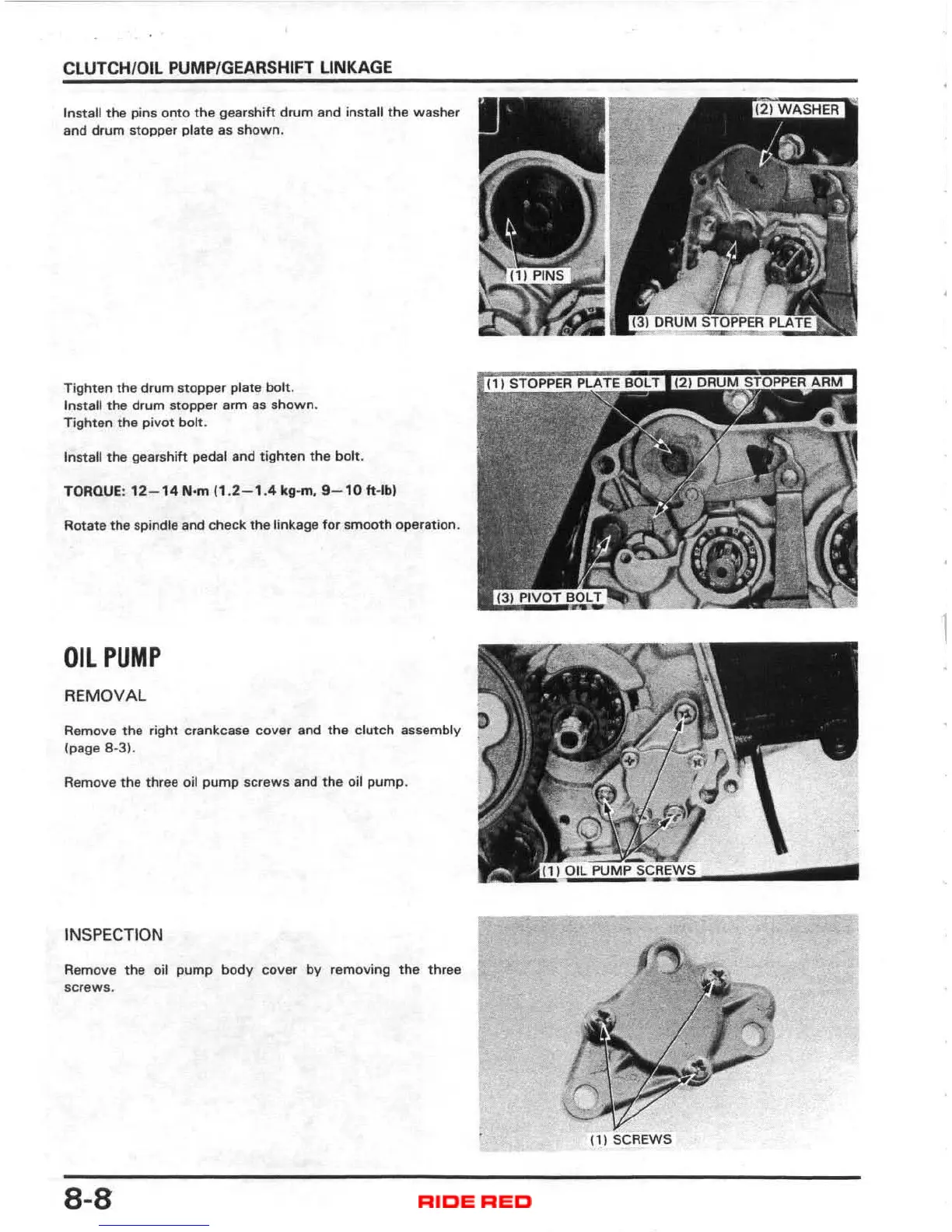

CLUTCH/OIL PUMP/GEARSHIFT LINKAGE
Install the pins onto the gearshift drum and install the washer
and drum stopper plate as shown.
Tighten the drum stopper plate bolt.
Install the drum stopper arm as shown.
Tighten the pivot bolt.
In stall the gearshift pedal and tighten the bolt.
TORQUE: 12 - 14N·m 11 . 2-1.4kg-m. 9 - 10ft · lbl
Rotate the spindle and check the linkage for smooth operation.
OIL PUMP
REMOVAL
Remove the right crankcase cover and the clutch assemblV
(page 8-3) ,
Remove the three oil pump screws and the oit pump .
INSPECTION
Remove the oit pump body cover by removing the three
screws.
8-8
1
(1) SCREWS
